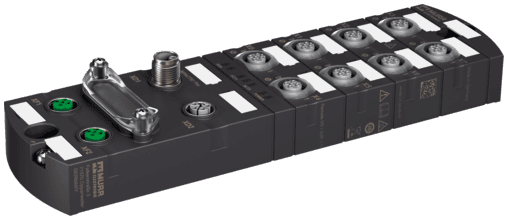

54632 Murr Elektronik I/O Systems

Product Details

• Weight
  554 g
• Series
  Field Bus System
• Cable break
  per port
• Actuator warning
  per channel via LED and BUS
• Monitoring - no voltage
  yes
• Diagnostic via BUS
  per module and channel
• Monitoring - under voltage
  yes
• Communication status
  via LED
• Addressing
  automatic or Device ID by rotary switch
• Diagnostic via LED
  per module and channel
• Protocols
  CoE; FoE; EoE; AoE
• Product article number of manufacturer
  54632
• Sensor-system/actuator supply
  M12 Power, 5-pole, L-coded, 2× max. 16 A
• FMMU
  8
• Operating modes
  COM1; COM2; COM3 (automatic)
• I/O ports
  M12, 5-pole, A-coded
• Port Class
  Class A + B (not galvanically separated)
• SYNC manager
  4
• Transfer parameters
  32 Byte (In) 32 Byte (Out) per IO-Link port
• PIN 2
  Input/Output (port X0...X7); U-Actuator IO-Link Class B (port X0...X7)
PIN 4
Input/output (port X0...X7); IO-Link master (port X0...X7)
IO-Link
8× Master
Monitoring - energy
yes (current and voltage)
Web interface
yes
Type
for 3-wire sensors or mechanical switches, PNP, IO-Link Devices
Fieldbus
Ethernet 10/100 Mbit/s; M12, D-coded
IIoT Interfaces
yes (OPC UA, MQTT, JSON REST API)
Monitoring - temperature
yes
Dimensions H×W×D
37×63×225 mm
Temperature range
-25...+70 °C (storage temperature -40...+80 °C)
Switching current per output
max. 2 A per pin (short-circuit and overload-protected), max. 4 A per port
Actuator supply UA
24 V DC (EN 61131-2), max. 10 A Port X0...X7
Protection
IP67
Mounting method
2-hole screw mounting, compatible with I/O modules of MVK model range
Sensor supply US
24 V DC (EN 61131-2), max. 2 A load per port, short-circuit and overload protected, total max. 10 A port X0...X7
