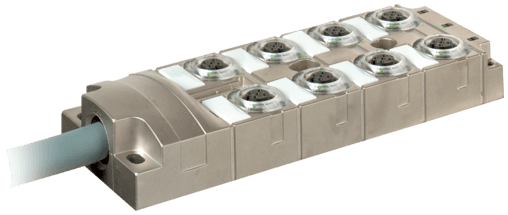

27590 Murr Elektronik I/O Distributors

Product Details

• Weight
  1440 g
• Series
  Distribution Systems
• Product article number of manufacturer
  27590
• Functional description
  All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-reseting). Supply voltage of other ports remains the same. In case of a fault the DIAGNOSTIC signal “active high”
• PIN 5
  (Earth)
• PIN 4
  (NO)/(S1)
• PIN 3
  (-)
• PIN 1
  (+)
• PIN 2
  (NC)/(S2)
• Material (jacket)
  PUR (UL/CSA)
• Travel speed (C-track)
  max. 2 m/s
• Acceleration (C-track)
  max. 5 m/s²
• Bend radius (fixed)
  5× outer Ø
• No. of bending cycles (C-track)
  max. 5 Mio. (25 °C)
• Bend radius (moving)
  10× outer Ø
• Temperature range (fixed)
  -40...+90 °C
• Temperature range (mobile)
  -25...+80 °C
• Test voltage
  2000 V AC
• Current load capacity
  to DIN VDE 0298-4
• Nominal voltage
  300/500 V AC
Shore hardness (jacket)
85 ±5 A
Jacket Color
gray
Shield
yes
Shore hardness (wire isolation)
55 ±5 D
Material (wire isolation)
TPE-E
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Diameter (core)
16× 0.34 + 5× 0.75 mm²
Material (wire)
Cu wire, bare
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Single wire Ø (core)
0.1 mm
Outer Ø
11.5 mm ±5%
Approval (cable)
UL (AWM-Style 20233/10042), CSA; CE conform
No./diameter of wires
16× 0.34 + 5× 0.75 mm²
Cable number
403
Wire isolation
TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye)
Dimensions H×W×D
145×55×21 mm
C-track properties
5 Mio.
Temperature range
-20...+60 °C
Unit protection
pulse switching
Total current
max. 10 A
LED display per port
LED (yellow): contact 4 and 2; 2× LED (red): for failure
Inrush capacity
max. 1470 µF
Locking of ports
Screw thread (M12×1 mm)
Operating voltage
24 V DC (EN 61131-2), potential separation 0 V for left/right side
Housing
Zinc die casting, matte nickel plated
LED display
LED (green): P1 and P2; LED (red): ERROR for optical diagnostics
Current consumption
max. 35 mA
Operating current (contact 3)
max. 2 A (shutoff 2.3...2.7 A)
Diagnostic output
active high, max. load 25 mA, wire (brown 2)
Protection
IP65, IP67, IP68 inserted and tightened (EN 60529)
Required power supply with max. ports
max. 20 A
