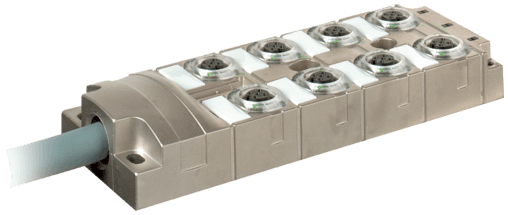

27501 Murr Elektronik I/O Distributors

Product Details

• Weight
  3360 g
• Series
  Distribution Systems
• Functional description
  All M12 ports are current monitored regarding 0 V total current (contact 3), and are switched off in case of overload or short-circuit (self-reseting). Supply voltage of other ports remains the same. In case of a fault the DIAGNOSTIC signal “active high”
• Product article number of manufacturer
  27501
• PIN 4
  (NO)/(S1)
• PIN 2
  (NC)/(S2)
• Material (jacket)
  PUR (UL/CSA)
• PIN 5
  (Earth)
• Travel speed (C-track)
  max. 2 m/s
• PIN 3
  (-)
• PIN 1
  (+)
• Bend radius (moving)
  10× outer Ø
• No. of bending cycles (C-track)
  max. 5 Mio. (25 °C)
• Bend radius (fixed)
  5× outer Ø
• Temperature range (fixed)
  -40...+90 °C
• Acceleration (C-track)
  max. 5 m/s²
• Temperature range (mobile)
  -25...+80 °C
• Diagnostic output
  active high, max. load 25 mA, wire (brown 2)
• Jacket Color
  gray
• Current load capacity
  to DIN VDE 0298-4
Housing
Zinc die casting, matte nickel plated
Nominal voltage
300/500 V AC
Test voltage
2000 V AC
Shield
yes
Shore hardness (jacket)
85 ±5 A
Required power supply with max. ports
min. 10 A
Protection
IP65, IP67, IP68 inserted and tightened (EN 60529)
Resistor (core)
max. 57 Ω/km (0.34 mm²), max. 26 Ω/km (0.75 mm²); (20 °C)
Shore hardness (wire isolation)
55 ±5 D
Material (wire isolation)
TPE-E
AWG
similar to AWG 22 (0.34 mm²); similar to AWG 18 (0.75 mm²)
Diameter (core)
16× 0.34 + 5× 0.75 mm²
Single wire Ø (core)
0.1 mm
Material (wire)
Cu wire, bare
Cable number
403
Approval (cable)
UL (AWM-Style 20233/10042), CSA; CE conform
Temperature range
-20...+60 °C
Outer Ø
11.5 mm ±5%
Wire isolation
TPE (grpk, wh, rdbl, gn, whgn, ye, brgn, gr, whye, pk, yebr, rd, whgr, bk, grbr, vi, br, bl, gnye)
C-track properties
5 Mio.
No./diameter of wires
16× 0.34 + 5× 0.75 mm²
Unit protection
pulse switching
Dimensions H×W×D
145×55×21 mm
Total current
max. 10 A
LED display
LED (green): P1 and P2; LED (red): ERROR for optical diagnostics
LED display per port
LED (yellow): contact 4 and 2; 2× LED (red): for failure
Locking of ports
Screw thread (M12×1 mm)
Inrush capacity
max. 1470 µF
Operating voltage
24 V DC (EN 61131-2), potential separation 0 V for left/right side
Current consumption
max. 35 mA
Operating current (contact 3)
max. 0.5 A (shutoff 0.7...0.9 A)
