10464 Murr Elektronik Line Filters & Conditioners

Name: 10464
Brand: Murr Elektronik
Price: 181.25 USD
Availability: BackOrder

Part#:10464

Manufacturer:Murr Elektronik

Category:Line Filters & Conditioners

Product Lifecycle:Active

Get a quick Quote!

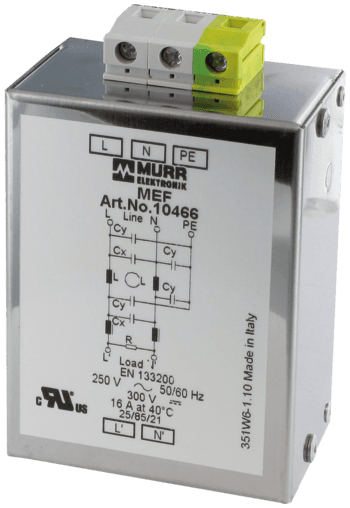

10464 Murrelektronik - MEF EMC-FILTER 1-PHASE 2-STAGE, I:6A U:250 VAC/300 VDC snap on, Against symmetrical interference

About the manufacturer: Murr Elektronik is one of the manufacturers that offers Line Filters & Conditioners that you can order at Applied Automation site. Murrelektronik is a worldwide frontrunner in creating, producing, and distributing automation solutions. Our product offerings are categorized into four main lines: Power Supplies and Control, Interfaces, Cables/Connectors, and IO Systems.

Check out the 10464 Murr Elektronik price in the box on the right side or send a quick quote.

Product Details

Weight
313.5 g
Series
Filter Modules
Dimensions H×W×D
107×65×39 mm
Application
symmetrical interferences: units with high repetitions of the switching processes, - switch mode P.S.U.s, - phase angle controller, - supply of universal motors, - behind transformers
Product article number of manufacturer
10464
Functional description
The single phase 2-stage EMC filters MEF 1/2 are used in the range 0.1...30 MHz to suppress cable carried interference on mains and control cables. The best filter performance is achieved by using short connection wires (suggestion: earth connection < 10
Mounting method
DIN-rail mountable TH35 (EN 60715)
Test isolation voltage
2.7 kV (L - N), 2 s; 2.1 kV (L - L), 2 s (EN 60939-2)
Connection cross section
0.2...6 mm² single core (AWG 24...9); 0.2...4 mm² multiple core (AWG 24...11)
Consumption
max. 5 mA (250 V AC)
Connection
Screw connection, touch protected
Operating frequency
50...60 Hz
Climatic category
25/085/21 (EN 60068-1)
Overload current
18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)
Operating voltage
max. 250 V AC/300 V DC
