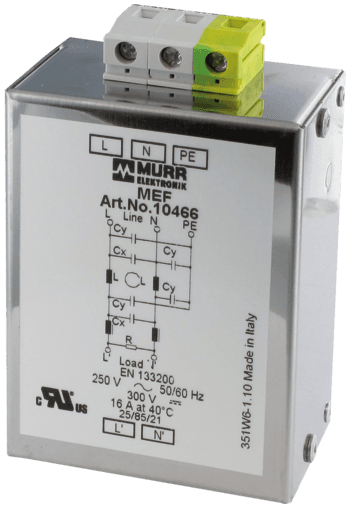

10462 Murr Elektronik Line Filters & Conditioners

Product Details

• Weight
  450 g
• Series
  Filter Modules
• Product article number of manufacturer
  10462
• Functional description
  The single phase 2-stage EMC filters MEF 1/2 are used in the range 0.1...30 MHz to suppress cable carried interference on mains and control cables. The best filter performance is achieved by using short connection wires (suggestion: earth connection < 10
• Dimensions H×W×D
  107×65×39 mm
• Connection cross section
  0.2...6 mm² single core (AWG 24...9); 0.2...4 mm² multiple core (AWG 24...11)
• Application
  symmetrical interferences: units with high repetitions of the switching processes, - switch mode P.S.U.s, - phase angle controller, - supply of universal motors, - behind transformers
• Connection
  Screw connection, touch protected
• Overload current
  18× (IN t) max. 0.5 ms; 1.5× (IN t) max. 1 min. (1× per hour)
• Test isolation voltage
  2.7 kV (L - N), 2 s; 2.1 kV (L - L), 2 s (EN 60939-2)
• Mounting method
  DIN-rail mountable TH35 (EN 60715)
• Consumption
  max. 5 mA (250 V AC)
• Operating frequency
  50...60 Hz
• Climatic category
  25/085/21 (EN 60068-1)
• Operating voltage
  max. 250 V AC/300 V DC
