643.200.54 Werma Signal Towers
Part#:643.200.54
Manufacturer:Werma
Category:Signal Towers
Product Lifecycle:Active
Product description

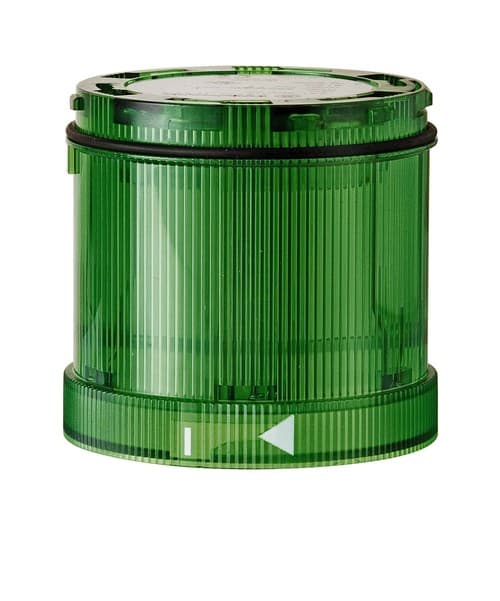

Flashing light element 12VDC GN
Product Details
- Conforms with VdS No
- Conforms with RoHS CN No
- ICAO Certification No
- Conforms with GL No
- Conforms with IC No
- EAC certificate available Yes
- Conforms with AS-I No
- Conforms with FCC No
- UL Type Rating Type 12
- Conforms with UL cULus
- Conforms with CCC No
- Conforms with CE Yes
- WEEE Yes
- Conforms with RED directive No
- Conform with ATEX-directive No
- Optical signal image Flash
- Service life optical 4 million flashes minimum
- Flash output 2 J
- Flash frequency 1 Hz
- Rated inrush current 500 mA
- Light colour Green
- Light source Xenon
- Pollution degree 3
- Protection class Protection class 2
- Rated operational current 195 mA
- Product weight 76 g
- Operating voltage tolerance +/- 10%
- Operating voltage type DC
- Rated operational voltage 12 VDC
- Weight with packaging 88 g
- Operating voltage 12V
- Dome colour Green
- Protection category IP65
- Working temperature maximum +50°C
- Materials PC
- Working temperature minimum -20°C
- Height 66 mm
- Diameter 70 mm
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
