816.480.55 Werma Signal Beacons

Product Details

• Conforms with VdS
  No
• Conforms with RoHS CN
  No
• ICAO Certification
  No
• Conforms with GL
  No
• EAC certificate available
  No
• Conforms with FCC
  Type 12
• Conforms with AS-I
  Yes
• Conforms with IC
  No
• UL Type Rating
  cULus
• Conforms with UL
  No
• Conforms with CE
  50,000 h maximum
• Conforms with CCC
  No
• WEEE
  Yes
• Conform with ATEX-directive
  Yes
• Service life optical
  Permanent
• Optical signal image
  MC 7 colours
• Light colour
  LED
• Light source
  In the connection area: 2
• Pollution degree
  3
• Protection class
  Protection class 2
Rated inrush current
500 mA
Rated operational voltage
24 VDC
Operating voltage tolerance
+/- 10%
Rated operational current
120 mA
Operating voltage
24V
Operating voltage type
DC
Weight with packaging
132 g
Product weight
110 g
Working temperature maximum
+50°C
Type of fixing
Built-in mounting
Connection
M12 plug 4-pole
Working temperature minimum
-20°C
Protection category
IP65
Materials
PC

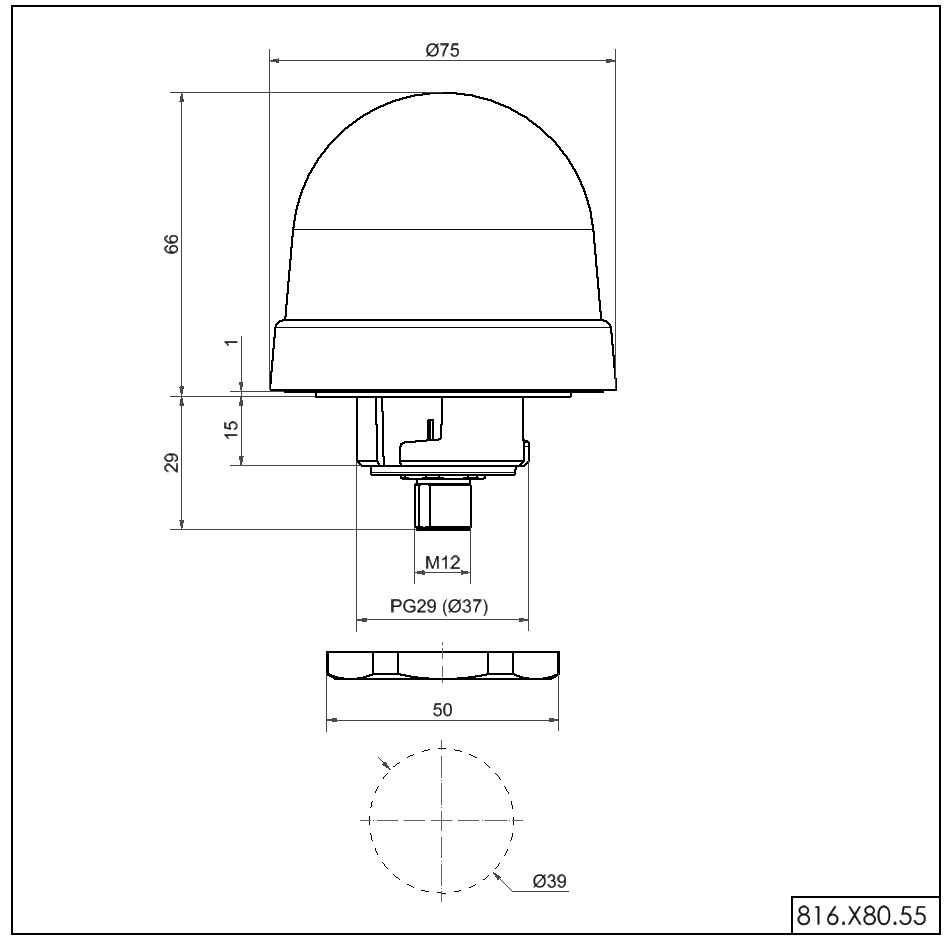

Diameter
75 mm
Dome colour
Clear
Tension relief
Present (conforms to VDE)
Height
97 mm
