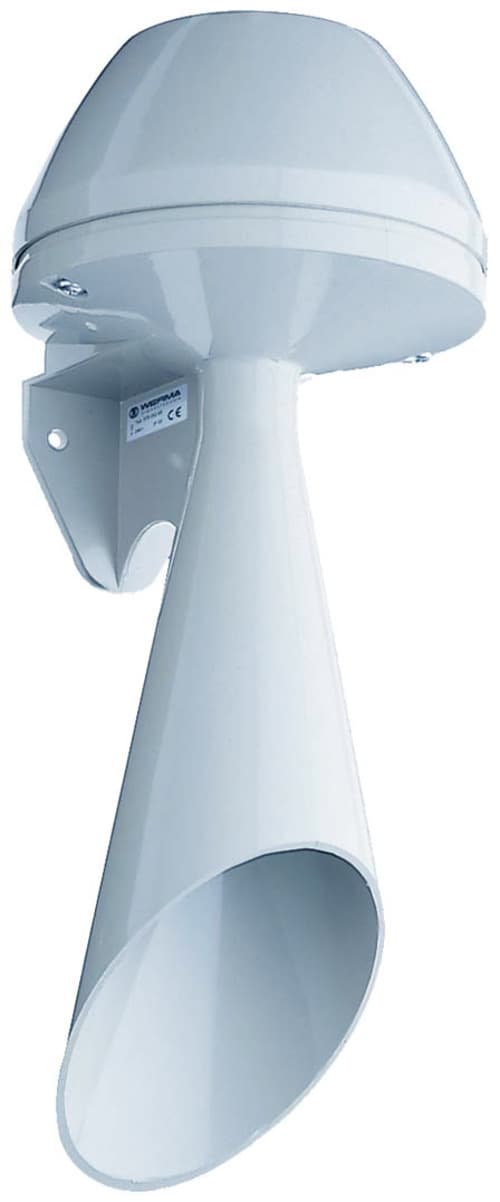

570.052.65 Werma Buzzers

Product Details

• Conforms with GL
  No
• Conforms with VdS
  No
• Conforms with RoHS CN
  No
• Conforms with AS-I
  No
• ICAO Certification
  No
• EAC certificate available
  Yes
• Conforms with IC
  No
• Conforms with FCC
  No
• Conforms with CCC
  No
• Conforms with UL
  No
• Conform with ATEX-directive
  No
• WEEE
  Yes
• Acoustic service life
  250 h minimum
• Conforms with CE
  Yes
• Acoustic signal image
  Continuous tone
• Volume (max) at 1m distance
  108,0 dB (A)
• Pollution degree
  3
• Protection class
  Protection class 2
• Rated inrush current
  <10A
• Rated operational current
  500 mA
Operating voltage frequency
50Hz
Operating voltage tolerance
+/- 10%
Rated operational voltage
24 VAC
Operating voltage type
AC
Product weight
908 g
Working temperature maximum
+60°C
Weight with packaging
1040 g
Type of fixing
Wall mounting
Cable entry maximum
d = 10 mm
Operating voltage
24V
Working temperature minimum
-20°C
Length
152 mm
Housing colour
Grey
Cable entry
Through hole
cross-sectional area maximum
2,50mm² / 14AWG
Materials
PC/ABS
Protection category
IP55
Connection
Screw terminals
Diameter
148 mm
Height
360 mm
