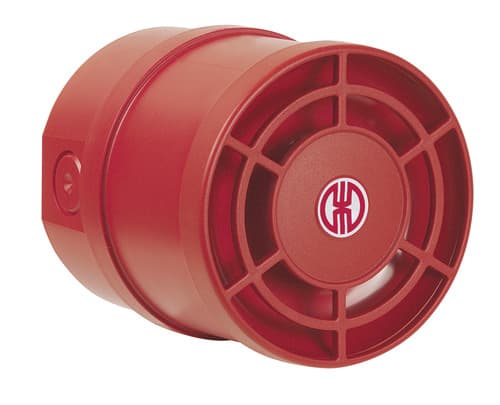

140.150.50 Werma Buzzers

Product Details

• Conforms with VdS
  No
• Conforms with RoHS CN
  No
• Conforms with GL
  No
• ICAO Certification
  No
• Conforms with AS-I
  No
• Conforms with UKCA (Importer)
  Yes (WERMA (UK) Ltd.)
• Conforms with IC
  No
• EAC certificate available
  Yes
• Conforms with FCC
  No
• Conforms with UL
  No
• Conforms with CCC
  No
• Conform with ATEX-directive
  No
• WEEE
  Yes
• Acoustic service life
  5,000 h minimum
• Conforms with CE
  Yes
• Number of tones
  32 tone
• Acoustic signal image
  Multi-tone
• Volume (max) at 1m distance
  115,0 dB (A)
• Pollution degree
  3
• Protection class
  Protection class 2
Rated inrush current
1.400 mA
Rated operational current
120 mA
Rated operational voltage
24 VDC
Operating voltage type
DC
Operating voltage tolerance
+/- 0%
Operating voltage
9–28V
Product weight
272 g
Working temperature maximum
+70°C
Weight with packaging
310 g
Working temperature minimum
-40°C
Housing colour
Red
Connection
Screw terminals
Type of fixing
Wall mounting
Cable entry
Through hole
cross-sectional area maximum
2,50mm² / 14AWG
Protection category
IP65
Diameter
100 mm
Materials
PC/ABS
Height
110 mm
