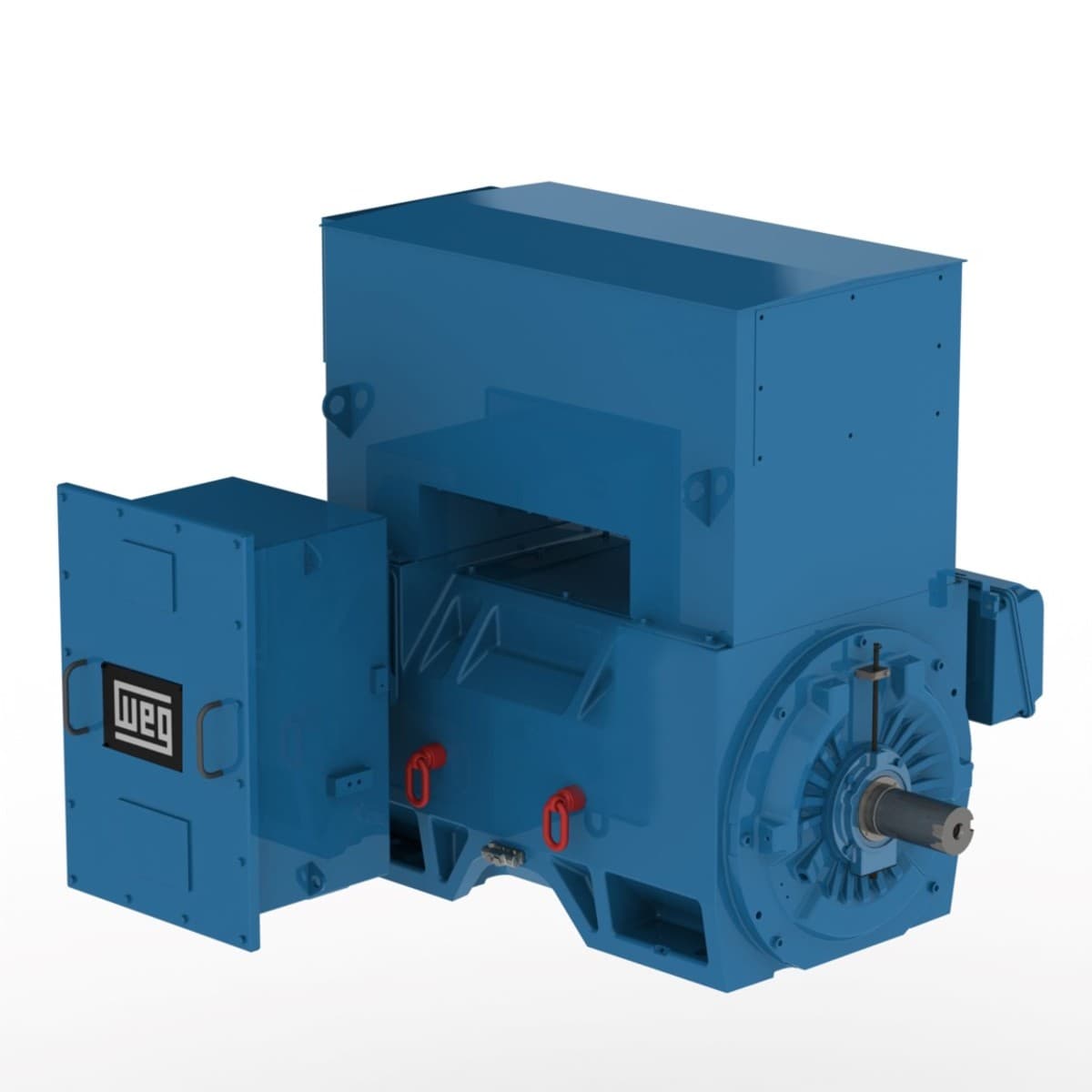

16166676 WEG AC Motors

Product Details

• Flange
  Without
• Terminal box¹
  Left position
• Voltage
  4160 V
• Number of poles
  2
• Output rating
  750 HP
• Synchronous speed
  3600 rpm
• Degree of Protection
  IP24
• Standard
  NEMA MG-1
• Mounting
  F-1
• Approx. weight³
  4381 lb
• Altitude
  1000 m.a.s.l.
• Noise level²
  80.0 dB(A)
• Ambient temperature
  -20°C to +40°C
• Rotation¹
  CW
• Duty Cycle
  Cont.(S1)
• Starting Method
  Direct On Line
• Temperature rise
  80 K
• Insulation Class
  F
• Moment of inertia (J)
  80.8 sq.ft.lb
• Rated torque
  1110 ft.lb
Service factor
1.00
LRC
6.5x(Code G)
Locked rotor time
34s (cold) 19s (hot)
Locked rotor torque
80 %
Rated current
92.8 A
No load current
21.0 A
Breakdown torque
210 %
Rated speed
3557 rpm
Frame
5010/11
Frequency
60 Hz
Slip
1.19 %
L. R. Amperes
603 A
Number of Poles
2
Rated voltage
4160 V
Output
750 HP (560 kW)

16166676 Related Documents
