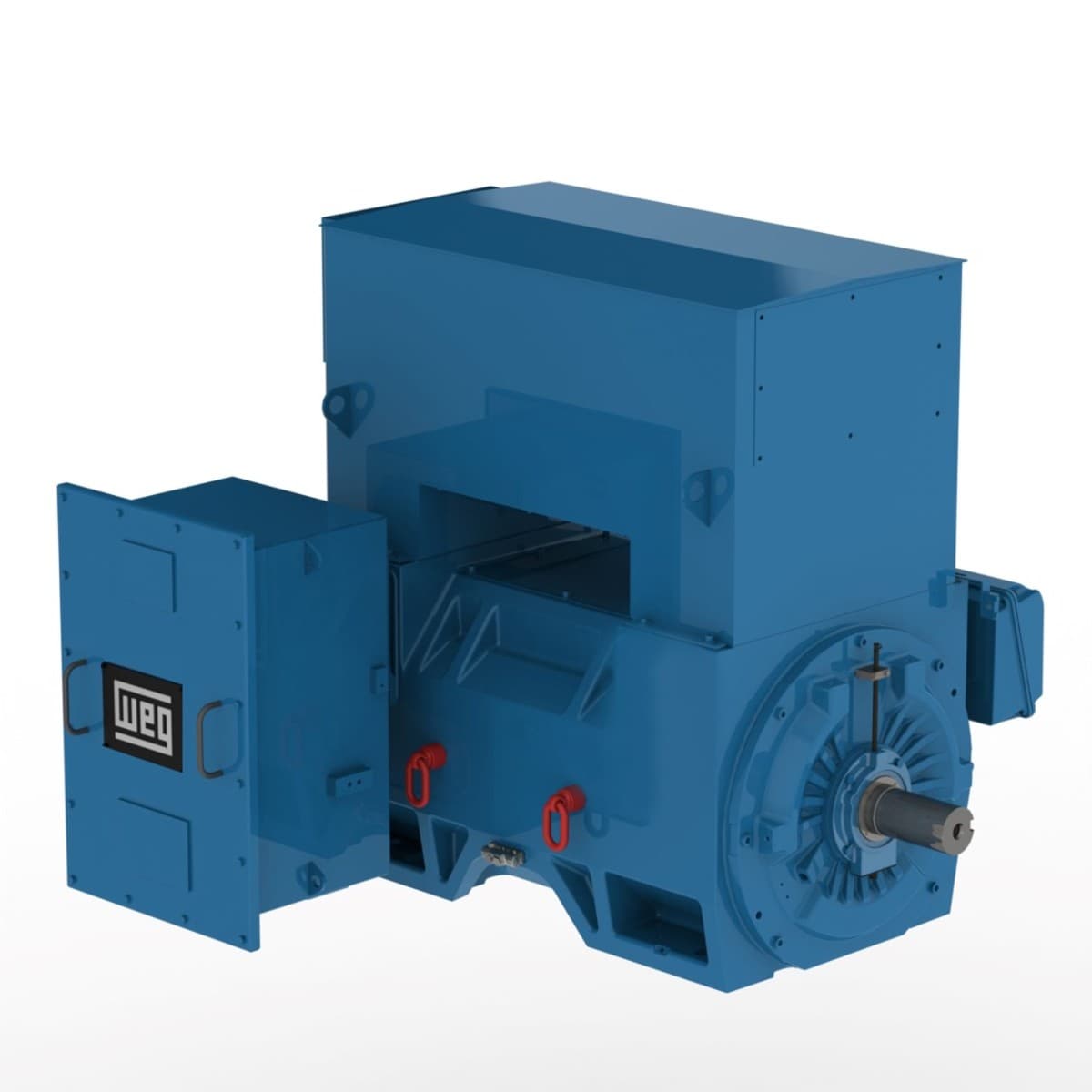

16166688 WEG AC Motors

Product Details

• Flange
  Without
• Terminal box¹
  Left position
• Output rating
  850 HP
• Voltage
  4160 V
• Synchronous speed
  3600 rpm
• Number of poles
  2
• Standard
  NEMA MG-1
• Approx. weight³
  4489 lb
• Rotation¹
  CW
• Noise level²
  80.0 dB(A)
• Degree of Protection
  IP24
• Altitude
  1000 m.a.s.l.
• Mounting
  F-1
• Ambient temperature
  -20°C to +40°C
• Starting Method
  Direct On Line
• Temperature rise
  80 K
• Duty Cycle
  Cont.(S1)
• Moment of inertia (J)
  86.3 sq.ft.lb
• Insulation Class
  F
• Service factor
  1.00
Locked rotor time
25s (cold) 14s (hot)
Breakdown torque
210 %
LRC
6.2x(Code F)
No load current
23.8 A
Rated torque
1260 ft.lb
Rated speed
3555 rpm
Locked rotor torque
80 %
Frequency
60 Hz
L. R. Amperes
645 A
Output
850 HP (630 kW)
Rated voltage
4160 V
Slip
1.25 %
Number of Poles
2
Rated current
104 A
Frame
5010/11
