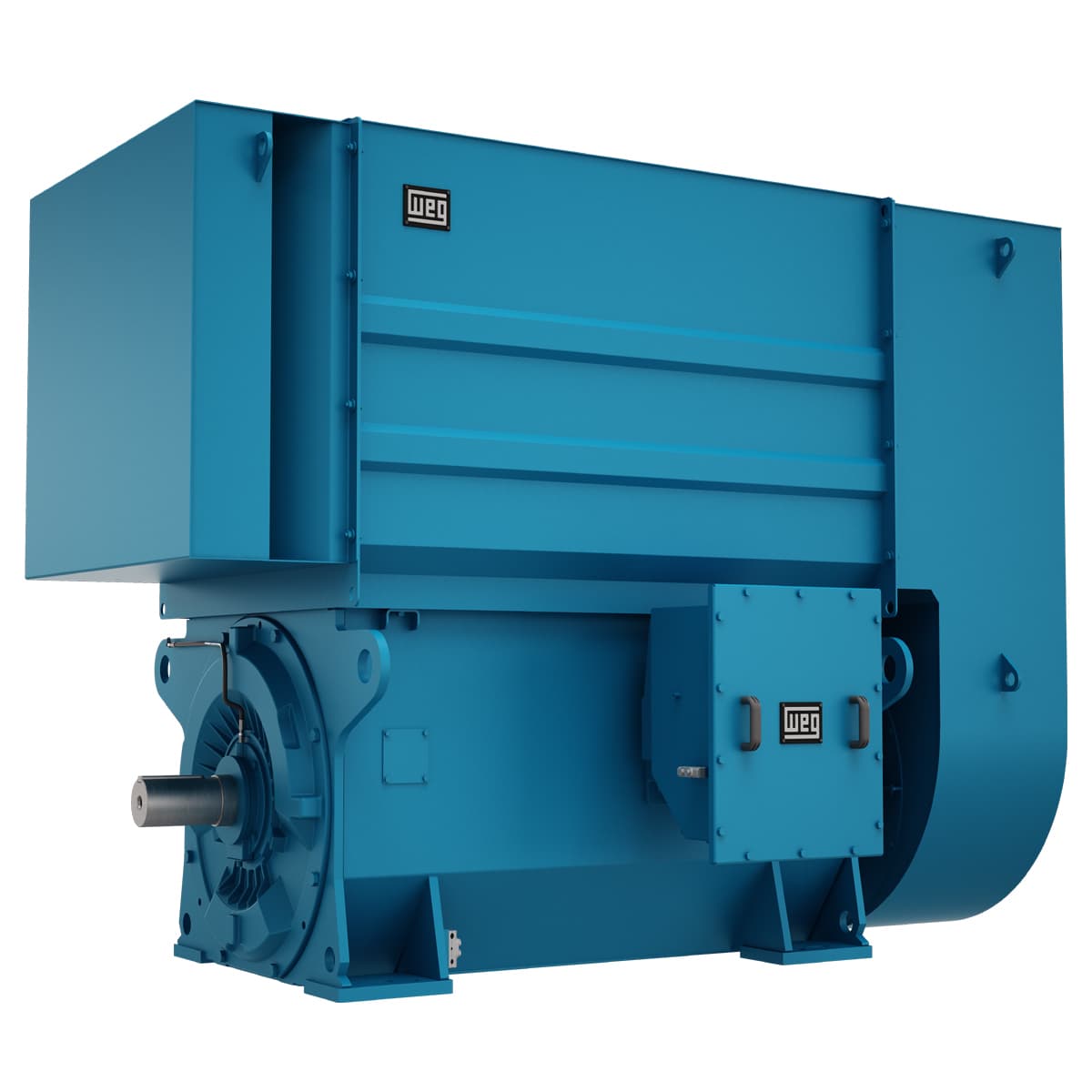

14960842 WEG AC Motors

Product Details

• Flange
  Without
• Number of poles
  4
• Terminal box¹
  Left position
• Output rating
  1100 HP
• Voltage
  4160 V
• Synchronous speed
  1800 rpm
• Standard
  NEMA MG-1
• Ambient temperature
  -20°C to +40°C
• Noise level²
  81.0 dB(A)
• Mounting
  F-1
• Approx. weight³
  5901 lb
• Starting Method
  Direct On Line
• Degree of Protection
  IP24
• Rotation¹
  CW
• Altitude
  1000 m.a.s.l.
• Locked rotor torque
  70 %
• Duty Cycle
  Cont.(S1)
• Temperature rise
  80 K
• Locked rotor time
  37s (cold) 21s (hot)
• Breakdown torque
  229 %
Moment of inertia (J)
157 sq.ft.lb
Insulation Class
F
Service factor
1.00
Rated torque
3250 ft.lb
No load current
35.6 A
L. R. Amperes
781 A
LRC
5.7x(Code F)
Number of Poles
4
Rated speed
1780 rpm
Rated voltage
4160 V
Slip
1.11 %
Frequency
60 Hz
Rated current
137 A
Output
1100 HP (800 kW)
Frame
5810/11
