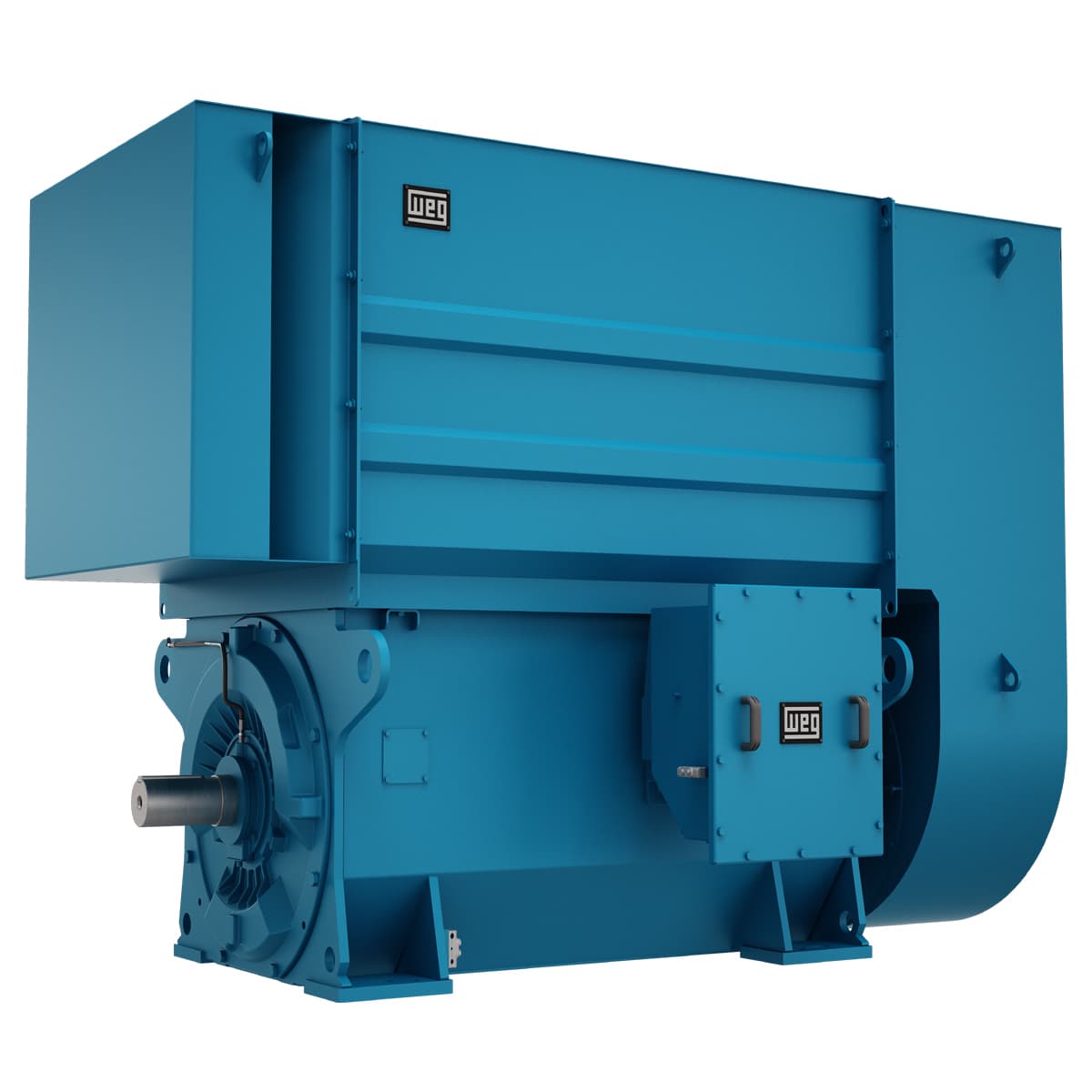

14960687 WEG AC Motors

Product Details

• Flange
  Without
• Temperature rise
  80 K
• Standard
  NEMA MG-1
• Synchronous speed
  3600 rpm
• Terminal box¹
  Left position
• Output rating
  1250 HP
• Voltage
  4160 V
• Number of poles
  2
• Mounting
  F-1
• Rated torque
  1840 ft.lb
• Rotation¹
  CW
• Noise level²
  85.0 dB(A)
• Approx. weight³
  5821 lb
• Degree of Protection
  IP24
• Locked rotor torque
  70 %
• Ambient temperature
  -20°C to +40°C
• Moment of inertia (J)
  91.7 sq.ft.lb
• Starting Method
  Direct On Line
• Duty Cycle
  Cont.(S1)
• Altitude
  1000 m.a.s.l.
Locked rotor time
19s (cold) 11s (hot)
Breakdown torque
250 %
Service factor
1.00
LRC
6.5x(Code G)
Insulation Class
F
Slip
1.00 %
No load current
42.9 A
Output
1250 HP (900 kW)
Rated voltage
4160 V
L. R. Amperes
1060 A
Rated speed
3564 rpm
Number of Poles
2
Rated current
163 A
Frequency
60 Hz
Frame
5810/11
