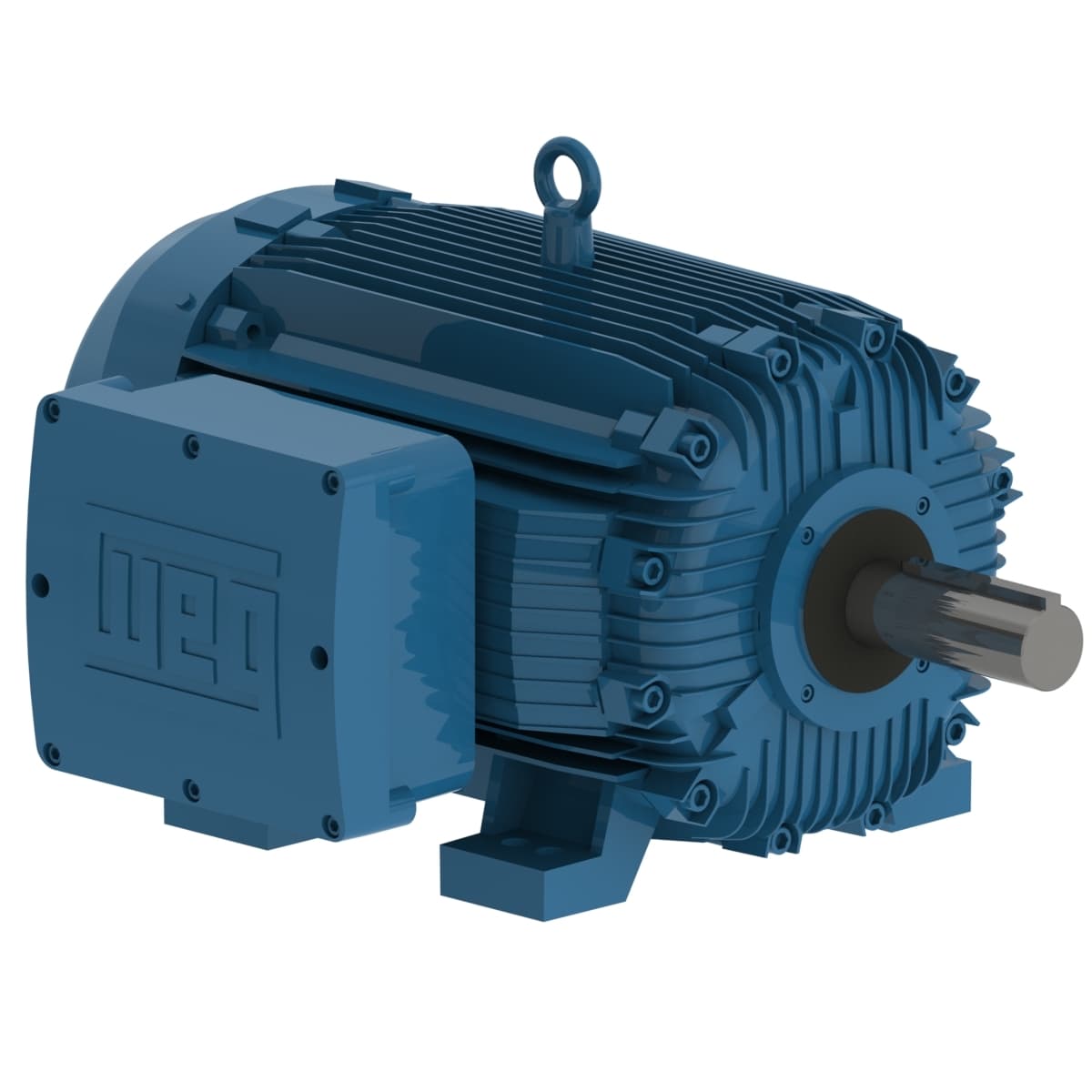

07509XT3E444T WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  230/460 V
• Output Rating
  75 HP
• Rated Speed
  890 rpm
• Flange Type
  Without
• Synchronous speed
  900 rpm
• Terminal box¹
  Left position
• Flange
  Without
• Number of poles
  8
• Output rating
  75 HP
• Insulation Class
  F
• Voltage
  230/460//380 V
• Standard
  NEMA MG-1
• Ambient temperature
  -20°C to +40°C
• Mounting
  F-1
• Approx. weight³
  1954 lb
• Service factor
  1.15
• Degree of Protection
  IP55
• Rotation¹
  Both (CW and CCW)
• Noise level²
  64.0 dB(A)
Enclosure
IC411 - TEFC
Starting Method
Direct On Line
Duty Cycle
Cont.(S1)
Altitude
1000 m.a.s.l.
Moment of inertia (J)
73.6 sq.ft.lb
Rated torque
443 ft.lb
Temperature rise
80 K
Design
B
Breakdown torque
210 %
Locked rotor torque
170 %
LRC
6.1x(Code G)
Locked rotor time
32s (cold) 18s (hot)
No load current
76.0/38.0 A
Rated speed
890 rpm
Frame
444/5T
Frequency
60 Hz
Slip
1.11 %
L. R. Amperes
1125/562 A
Number of Poles
8
Rated current
184/92.2 A
Rated voltage
230/460 V
Output
75 HP (55 kW)
