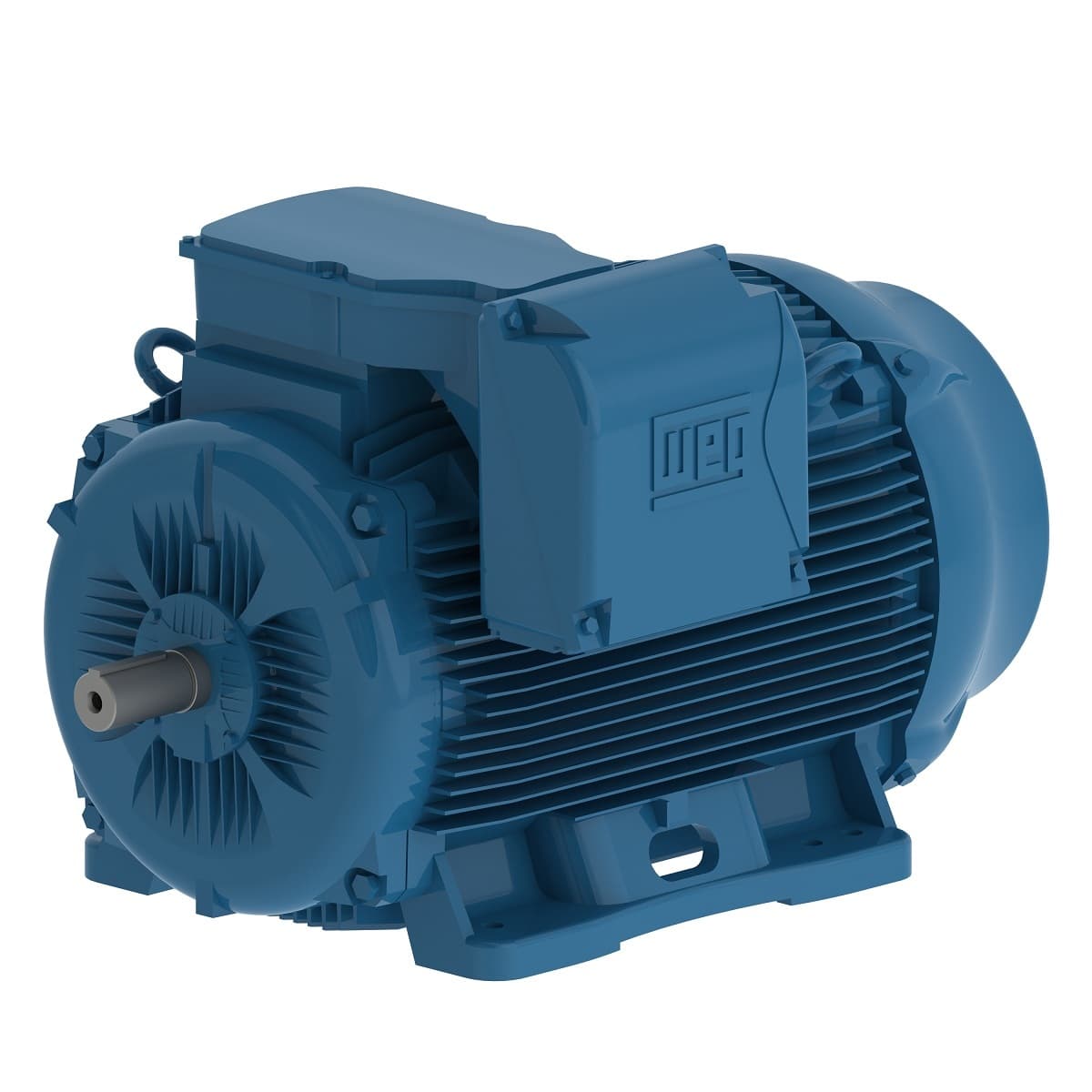

07509ET3Y315S/M-W22 WEG AC Motors

Product Details

• Number of Poles
  8 Pole
• Voltage
  380 V
• Output Rating
  100 HP
• Rated Speed
  740 rpm
• Flange Type
  Without
• Terminal box¹
  Right position
• Flange
  Without
• Output rating
  100 HP
• Synchronous speed
  900 rpm
• Number of poles
  8
• Voltage
  460//380-415 V
• Approx. weight³
  2518 lb
• Standard
  NEMA MG-1
• Enclosure
  IC411 - TEFC
• Noise level²
  62.0 dB(A)
• Rotation¹
  Both (CW and CCW)
• Mounting
  B3L(E)
• Altitude
  1000 m.a.s.l.
• Degree of Protection
  IP55
• Ambient temperature
  -20°C to +40°C
Starting Method
Direct On Line
Duty Cycle
S1
Insulation Class
F
Moment of inertia (J)
95.7 sq.ft.lb
Breakdown torque
160 %
Locked rotor time
72s (cold) 40s (hot)
Rated torque
710 ft.lb
Locked rotor torque
160 %
Design
N
Temperature rise
80 K
No load current
57.8 A
LRC
6.0
Frame
315S/M
Number of Poles
8
Rated voltage
380 V
Frequency
50 Hz
Output
100 HP (75 kW)
Rated speed
740 rpm
Slip
1.33 %
Rated current
150 A
L. R. Amperes
900 A
