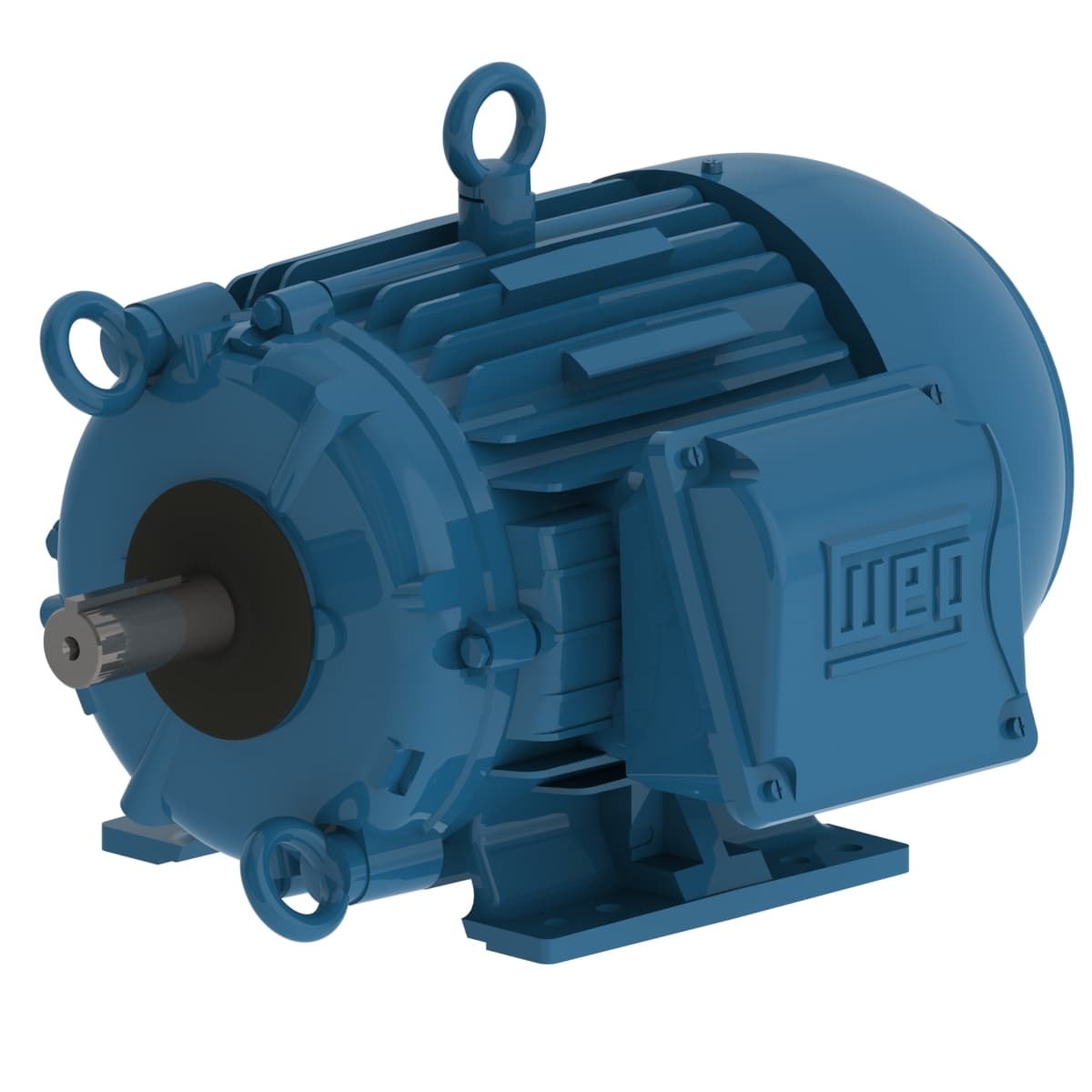

00389EP3QCT182V-W22 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  460 V
• Output Rating
  0.75/3.0 HP
• Rated Speed
  1755 rpm
• Flange Type
  Without
• L. R. Amperes
  29.9 A
• Rated current
  3.99 A
• Terminal box¹
  Right position
• Approx. weight³
  91.2 lb
• Flange
  Without
• Voltage
  460 V
• Synchronous speed
  900/1800 rpm
• Output rating
  0.75/3.0 HP
• Standard
  NEMA MG-1
• Number of poles
  8/4
• Rotation¹
  Both (CW and CCW)
• Starting Method
  Direct On Line
• Ambient temperature
  -20°C to +40°C
• Noise level²
  58.0 dB(A)
• Mounting
  F-2
Degree of Protection
IP55
Duty Cycle
Cont.(S1)
Enclosure
IC411 - TEFC
Temperature rise
80 K
Locked rotor torque
200 %
Altitude
1000 m.a.s.l.
Service factor
1.15
Breakdown torque
290 %
Rated torque
8.98 ft.lb
Locked rotor time
18s (cold) 10s (hot)
Insulation Class
F
Moment of inertia (J)
0.3821 sq.ft.lb
No load current
2.30 A
LRC
7.5x(Code J)
Slip
2.50 %
Frequency
60 Hz
Output
3 HP (2.2 kW)
Rated speed
1755 rpm
Number of Poles
8/4
Rated voltage
460 V
Frame
182T
