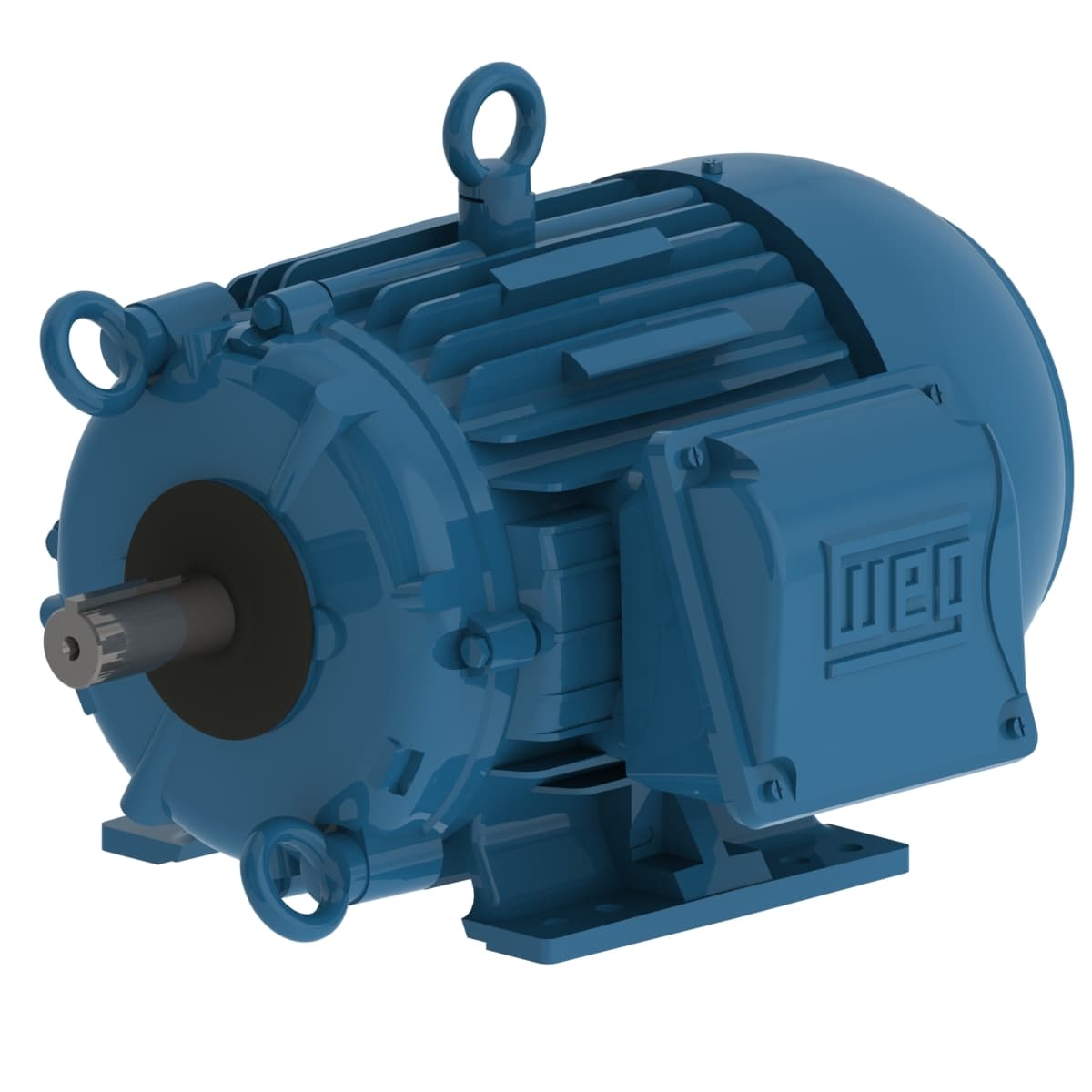

00389EP3PCT182V-W22 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  200 V
• Output Rating
  0.75/3.0 HP
• Rated Speed
  1755 rpm
• Flange Type
  Without
• L. R. Amperes
  68.8 A
• Output rating
  0.75/3.0 HP
• Synchronous speed
  900/1800 rpm
• Terminal box¹
  Right position
• Number of poles
  8/4
• Standard
  NEMA MG-1
• Flange
  Without
• Voltage
  200 V
• Noise level²
  58.0 dB(A)
• Rotation¹
  Both (CW and CCW)
• Approx. weight³
  92.0 lb
• Duty Cycle
  Cont.(S1)
• Starting Method
  Direct On Line
• Degree of Protection
  IP55
• Altitude
  1000 m.a.s.l.
Enclosure
IC411 - TEFC
Mounting
F-2
Ambient temperature
-20°C to +40°C
Temperature rise
80 K
Service factor
1.15
Locked rotor torque
200 %
Moment of inertia (J)
0.3821 sq.ft.lb
Locked rotor time
18s (cold) 10s (hot)
Breakdown torque
290 %
Insulation Class
F
No load current
5.29 A
Rated torque
8.98 ft.lb
LRC
7.5x(Code J)
Frequency
60 Hz
Frame
182T
Rated speed
1755 rpm
Rated voltage
200 V
Output
3 HP (2.2 kW)
Rated current
9.18 A
Number of Poles
8/4
Slip
2.50 %
