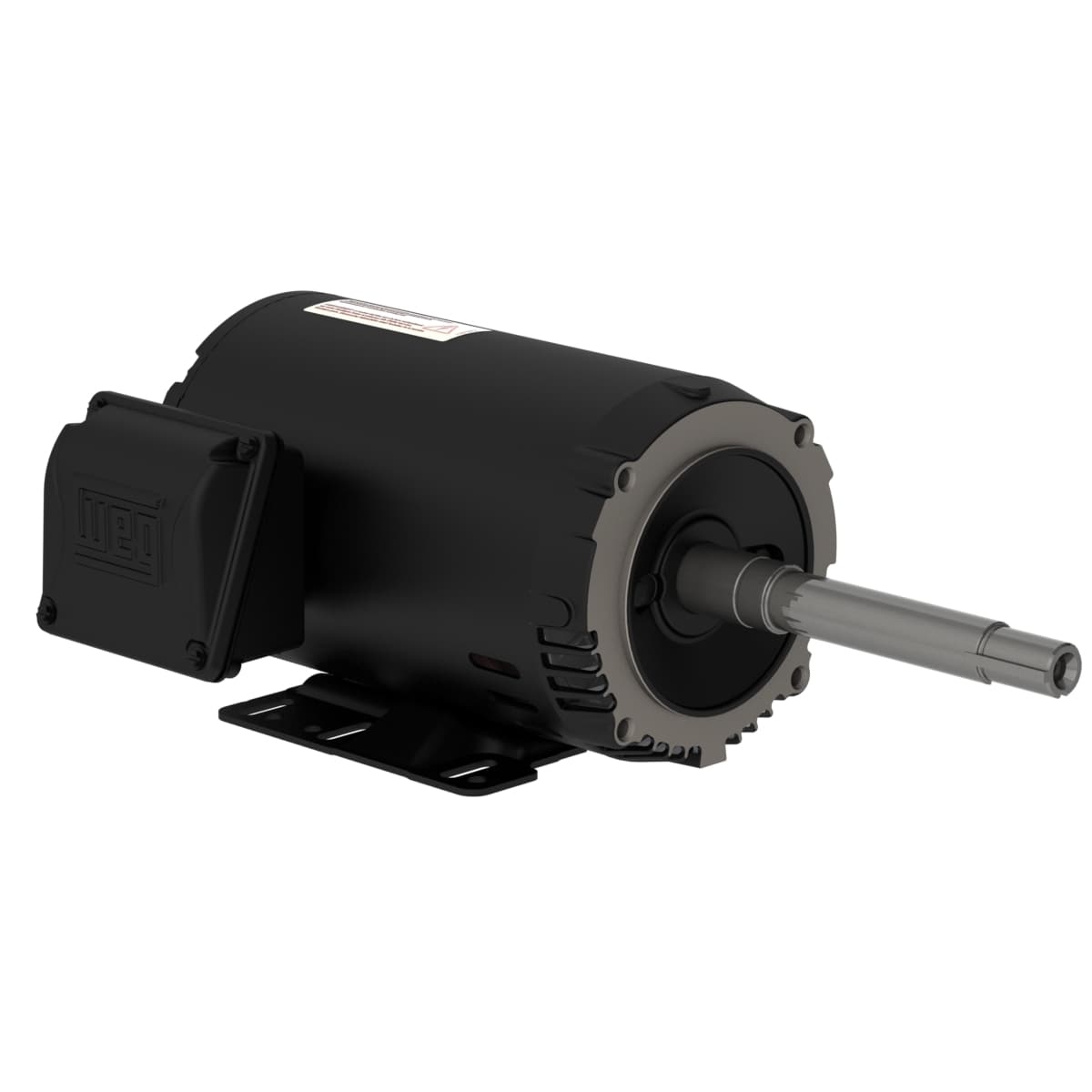

00336OT3V145JP-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  200/400 V
• Output Rating
  3 HP
• Rated Speed
  3480 rpm
• Flange Type
  C
• Synchronous speed
  3600 rpm
• Voltage
  200/400 V
• Terminal box¹
  Left position
• Flange
  C
• Output rating
  3 HP
• Number of poles
  2
• Approx. weight³
  39.9 lb
• Standard
  NEMA MG-1
• Noise level²
  62.0 dB(A)
• Mounting
  F-1
• Rotation¹
  Both (CW and CCW)
• Ambient temperature
  -20°C to +40°C
• Enclosure
  IC01 - ODP
• Altitude
  1000 m.a.s.l.
• Insulation Class
  F
Moment of inertia (J)
0.1279 sq.ft.lb
Starting Method
Direct On Line
Temperature rise
80 K
Service factor
1.15
Locked rotor time
16s (cold) 9s (hot)
Rated torque
4.53 ft.lb
Duty Cycle
Cont.(S1)
Design
B
Breakdown torque
300 %
No load current
2.99/1.49 A
Locked rotor torque
229 %
LRC
8.0x(Code J)
Output
3 HP (2.2 kW)
Frame
143/5JP
Frequency
60 Hz
Number of Poles
2
Slip
3.33 %
Rated speed
3480 rpm
Rated voltage
200/400 V
L. R. Amperes
66.1/33.0 A
Rated current
8.26/4.13 A
