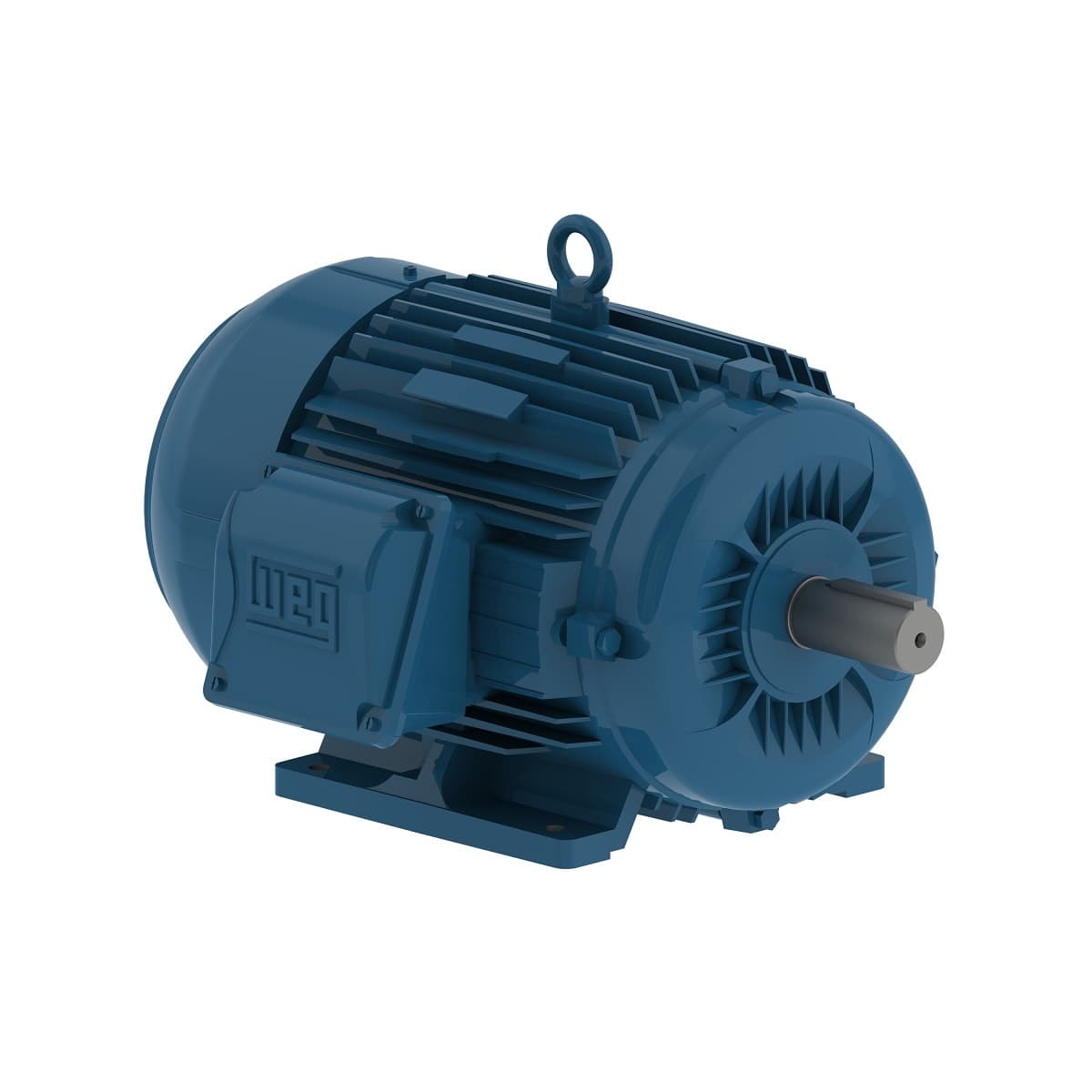

00336ET3E182T-W22 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  3 HP
• Rated Speed
  3515 rpm
• Flange Type
  Without
• Terminal box¹
  Left position
• Flange
  Without
• Synchronous speed
  3600 rpm
• Output rating
  3 HP
• Standard
  NEMA MG-1
• Voltage
  230/460//380 V
• Degree of Protection
  IP55
• Noise level²
  66.0 dB(A)
• Enclosure
  IC411 - TEFC
• Approx. weight³
  77.2 lb
• Starting Method
  Direct On Line
• Mounting
  F-1
• Duty Cycle
  Cont.(S1)
• Service factor
  1.25
• Temperature rise
  80 K
Insulation Class
F
Locked rotor time
46s (cold) 26s (hot)
Moment of inertia (J)
0.1889 sq.ft.lb
Locked rotor torque
250 %
No load current
3.20/1.60 A
Rated voltage
230/460 V
Rated speed
3515 rpm
L. R. Amperes
64.7/32.3 A
Frequency
60 Hz
Rated current
7.52/3.76 A
Frame
182/4T
Number of poles
2
Rotation¹
Both (CW and CCW)
Ambient temperature
-20°C to +40°C
Altitude
1000 m.a.s.l.
Rated torque
4.48 ft.lb
Design
B
Breakdown torque
380 %
LRC
8.6x(Code K)
Slip
2.36 %
Number of Poles
2
Output
3 HP (2.2 kW)
