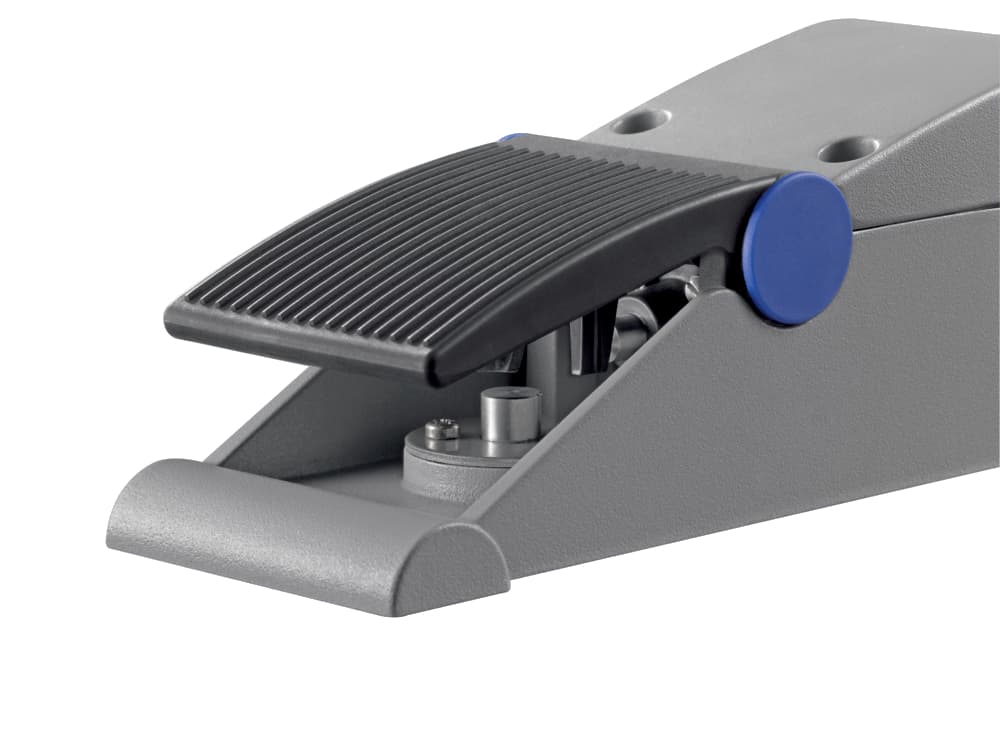

ZF 232-04 Schmersal Electronic Components
Part#:ZF 232-04
Alt. Part#:101181540
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Automation technology; Foot switch; 4 Contacts; Also available as safety foot switch; Low operating height of pedal; Cable entry M 20 x 1.5; High level of stability; Metal enclosure; single-pedal types
Product Details
- Switching element Opener (NC)
- Switching principle Snap action
- Utilisation category DC-13 24 VDC
- Thermal test current 10 A
- Utilisation category AC-15 4 A
- Rated impulse withstand voltage Uimp 6 kV
- Rated insulation voltage Ui 500 V
- Ambient temperature, maximum +70 °C
- Ambient temperature, minimum -25 °C
- Degree of protection IP65 to EN 60529
- Depth 274 mm
- Height 189 mm
- Colour of the housing RAL 9006 (White aluminum)
- Width 170 mm
- Enclosure material Aluminium
- Gross weight 1,100 g
- Material of the cover Aluminium
- Cable section, maximum 1 x 2.5 mm²
- Enclosure coating material powder-coated
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Terminal Connector Screw connection
- Mechanical life, minimum 1,000,000 Operations
- Standards BG-GS-ET-15, DIN VDE 0660-200, EN 60947-5-1
- Material of the protective shield Aluminium
- Material of the pedal Glass-fibre, reinforced thermoplastic
- Number of openers 4
- Probing possible Yes
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
