RS656-Z22 Schmersal Safety Switches


Part#:RS656-Z22
Alt. Part#:153031613
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

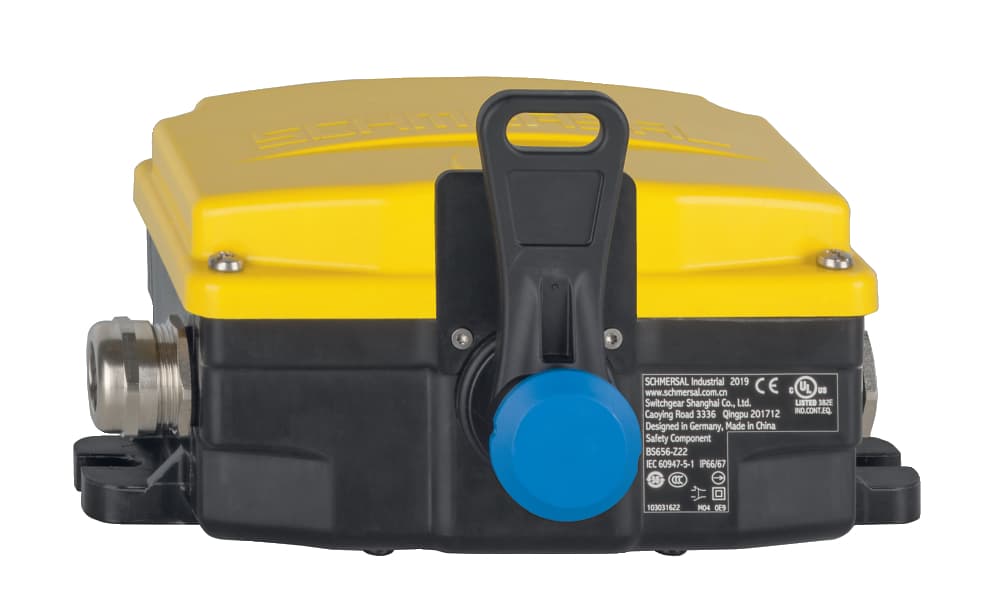

RS656-Z22 Schmersal - Pull-wire emergency stop switches; Thermoplastic enclosure; wire pull and breakage detection; Protection class IP66, IP67; Central connection terminal; Mechanical switching position indication; two-side operation / wire up to 2 x 100 m
Product Details
- Utilisation category DC-13 24 VDC
- Switching principle Snap switch element
- Utilisation category AC-15 3 A
- Thermal test current 6 A
- Degree of pollution to IEC/EN 60947-1 3
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 300 V
- Protection rating II
- Cable section, maximum 2.5 mm², flexible
- Ambient temperature, maximum +70 °C
- Ambient temperature, minimum -40 °C
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Cable section, minimum 0.5 mm², flexible
- Cable entry 2 x M25 x 1.5
- Actuation direction Each time 75° right-hand side and left-hand side rotation
- Terminal Connector Spring pulley connection
- Mechanical life, minimum 100,000 Operations
- Number of safety contacts 2
- Gross weight 1,690 g
- Enclosure material thermosetting resin
- Material of the contacts, electrical Silver
- Material of the cover thermosetting resin
- Standards IEC 60947-5-1, IEC 60947-5-5, ISO 13850
- Length of the wire, maximum 100 m
- Actuating element Roller lever N300
- Number of auxiliary contacts 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of RS656-Z22 on Applied Automation is $759.00. Order now.
About the product
RS656-Z22 Schmersal - Pull-wire emergency stop switches; Thermoplastic enclosure; wire pull and breakage detection; Protection class IP66, IP67; Central connection terminal; Mechanical switching position indication; two-side operation / wire up to 2 x 100 m
