RS656-Z22-DS Schmersal Electronic Components

RS656-Z22-DS on Applied Automation
Schmersal

Part#:RS656-Z22-DS

Alt. Part#:153031619

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

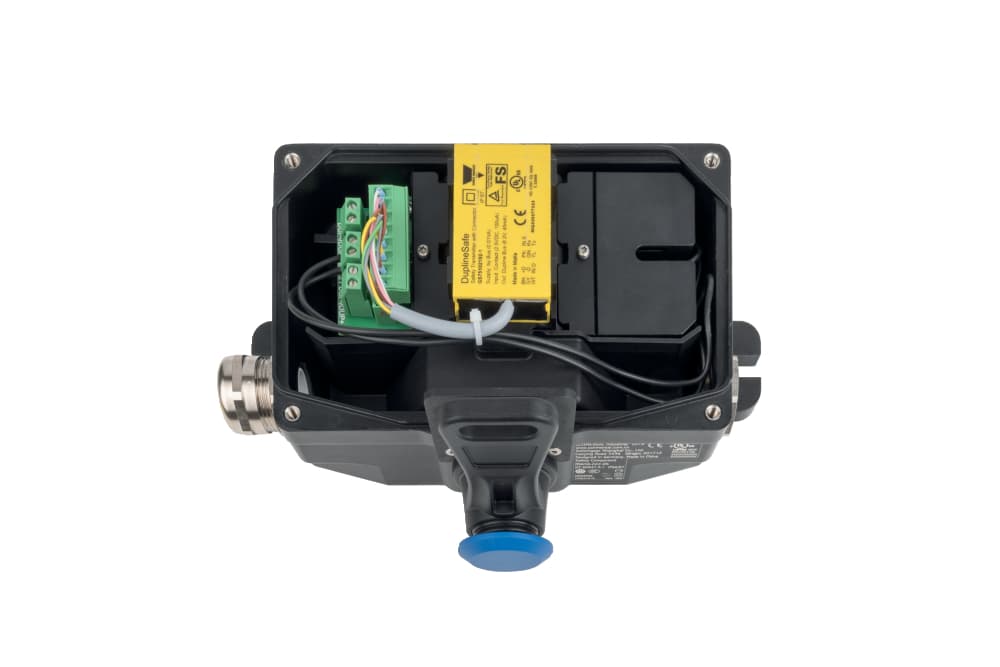

Pull-wire emergency stop switches; Thermoplastic enclosure; wire pull and breakage detection; Protection class IP66, IP67; Central connection terminal; Mechanical switching position indication; two-side operation / wire up to 2 x 100 m

Product Details

  • Field bus
    DuplineSafe
  • Operating voltage
    8.2 VDC
  • Operating current
    1 mA
  • Switching principle
    Snap switch element
  • Degree of pollution to IEC/EN 60947-1
    3
  • Utilisation category DC-13
    3 A
  • Utilisation category AC-15
    230 VAC
  • Thermal test current
    6 A
  • Protection rating
    II
  • Rated insulation voltage Ui
    300 V
  • Rated impulse withstand voltage Uimp
    0.8 kV
  • Ambient temperature, maximum
    +70 °C
  • Cable section, minimum
    0.2 mm², rigid, 0.25 mm², flexible
  • Degree of protection
    IP66 to EN 60529, IP67 to EN 60529
  • Cable section, maximum
    2.5 mm², flexible, 4 mm², rigid
  • Ambient temperature, minimum
    -40 °C
  • Terminal Connector
    Spring pulley connection
  • Mechanical life, minimum
    100,000 Operations
  • Actuation direction
    Each time 75° right-hand side and left-hand side rotation
  • Cable entry
    2 x M25 x 1.5
  • Material of the contacts, electrical
    Silver
  • Number of safety contacts
    2
  • Length of the wire, maximum
    100 m
  • Material of the cover
    thermosetting resin
  • Number of auxiliary contacts
    2
  • Standards
    IEC 60947-5-1, IEC 60947-5-5, ISO 13850
  • Actuating element
    Roller lever N300
  • Enclosure material
    thermosetting resin
  • Gross weight
    2,830 g

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
