RDLMGB Schmersal Pushbuttons
Part#:RDLMGB
Manufacturer:Schmersal
Alt. Part#:101188169
Product Lifecycle:Active
Get a quick Quote!

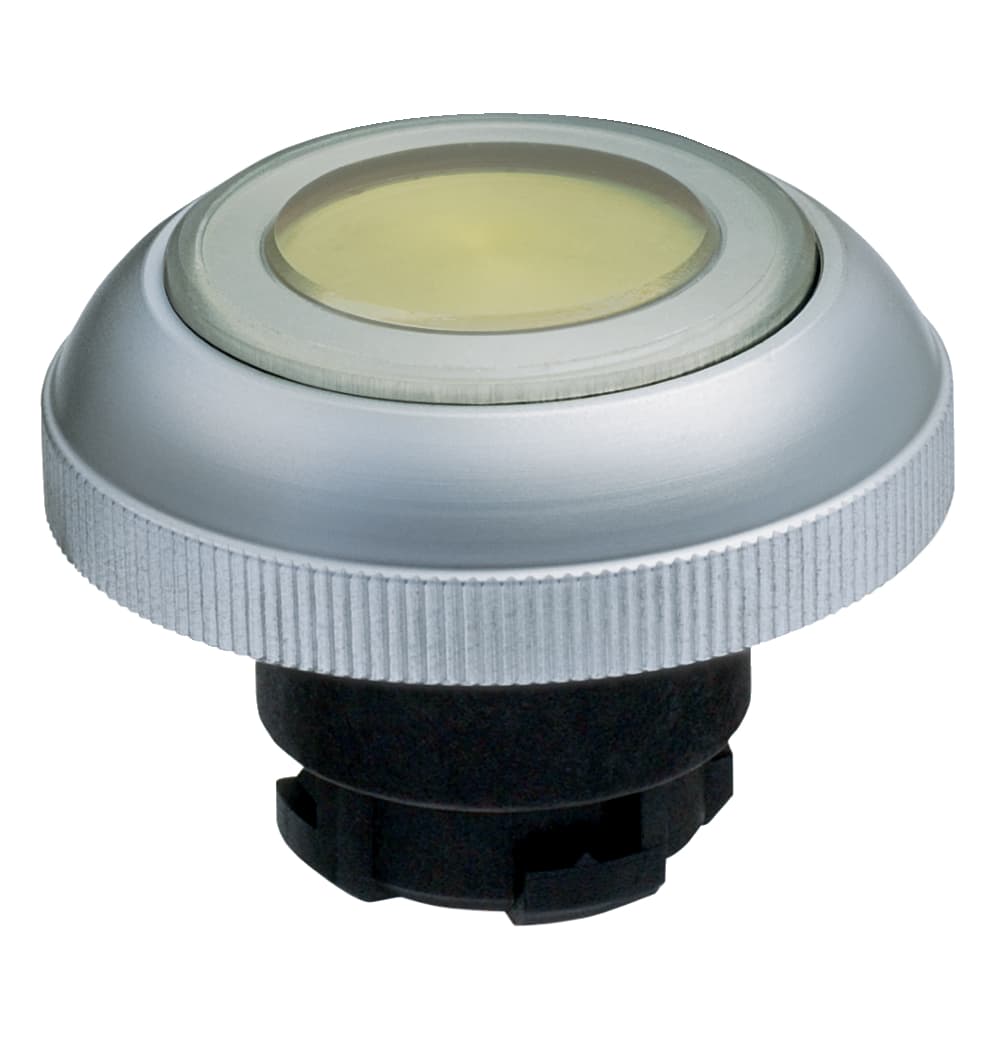

RDLMGB Schmersal - Command and signalling devices; "R" program; Illuminated pushbutton with membrane; Symbols still clearly visible under transparent membrane
About the manufacturer: Schmersal is one of the manufacturers that offers Pushbuttons that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the RDLMGB Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching frequency 1,200 /h
- Restistance to shock 50 g
- Ambient temperature, maximum +75 °C
- Spacing 40 x 50 mm
- Ambient temperature, minimum -25 °C
- Degree of protection IP65
- Thickness of the front panel, maximum 6 mm
- Diameter hole, with tolerance indication 22.3 + 0.4 mm
- Thickness, of the front panel, minimum 1 mm
- Diameter hole 22.3 mm
- Height of touch surface 1.5 mm
- Diameter of the front ring 39.5 mm
- Diameter of touch surface 28 mm
- Height 12 mm
- Diameter total 39.5 mm
- Mounting Mounting flange ELM
- Tightening torque of the screw 0.6 Nm
- Actuating force, approx. 1.5 N
- Actuating stroke 4 mm
- Mechanical life, minimum 1,000,000 Operations
- Probing possible Yes
- Integral System Diagnostics, general No
- Unlocking without
- Fully insulated Yes
- Illuminable Yes
- Mounting flange Yes
- Gross weight 45 g
- Membrane Yes
- Colour of the front ring Silver
- Colour of the operating element Yellow
- Material of the front ring Aluminium
- Design Round
- Standards EN 60947-5-1, IEC/EN 60947-1
- Versions Flush-mounted illuminated pushbutton - Front plate mounting
- Material of the operators Glass
- Sealing type Membrane, Lip gaskets, Form seals
- Installation conditions (mechanical) arbitrarily
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
RDLMGB Description
RDLMGB Schmersal - Command and signalling devices; "R" program; Illuminated pushbutton with membrane; Symbols still clearly visible under transparent membrane
Related documents RDLMGB Specs
