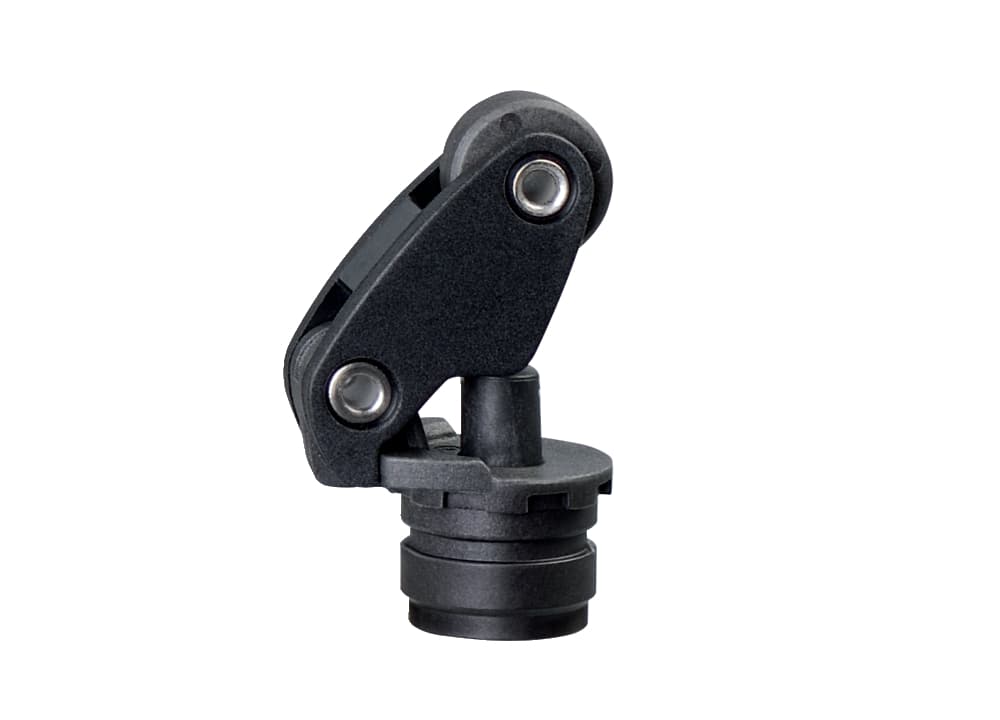

PS216-Z12-K200 Schmersal Safety Switches
Part#:PS216-Z12-K200
Manufacturer:Schmersal
Alt. Part#:103015007
Product Lifecycle:Active
Get a quick Quote!
PS216-Z12-K200 Schmersal - Position switch; PS216; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50047
About the manufacturer: Schmersal is one of the manufacturers that offers Safety Switches that you can order at Applied Automation site. Schmersal produces a wide range of high-quality switchgears specifically engineered to protect machinery and facilities in industrial automation and the elevator industry.
Check out the PS216-Z12-K200 Schmersal price in the box on the right side or send a quick quote.
Product Details
- Switching element 1 NO contact, 2 NC contacts
- Switching frequency 5,000 /h
- Switching principle Snap switch element
- Utilisation category DC-13 3 A
- Utilisation category AC-15 3 A
- Required rated short-circuit current to EN 60947-5-1 400 A
- Thermal test current 5 A
- Rated impulse withstand voltage Uimp 4 kV
- Rated insulation voltage Ui 300 V
- Ambient temperature, minimum -30 °C
- Width of sensor 31 mm
- Ambient temperature, maximum +80 °C
- Degree of protection IP66, IP67
- Height of sensor 95 mm
- Length of sensor 32.5 mm
- Cable section, maximum 1.5 mm²
- Cable section, minimum 0.34 mm²
- Actuating speed, maximum 1 m/s
- Terminal Connector Screw connection
- Positive break force, minimum 40 N
- Actuating speed, minimum 10 mm/min
- Mechanical life, minimum 10,000,000 Operations
- Standards IEC 60947-5-1
- Number of auxiliary contacts 1
- Number of safety contacts 2
- Actuator type to DIN EN 50047 e
- Safety functions Yes
- Material of the contacts, electrical Silver
- Housing construction form Norm construction design
- Actuating element Offset roller lever K200
- Gross weight 190 g
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
PS216-Z12-K200 Description
PS216-Z12-K200 Schmersal - Position switch; PS216; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Design to EN 50047
