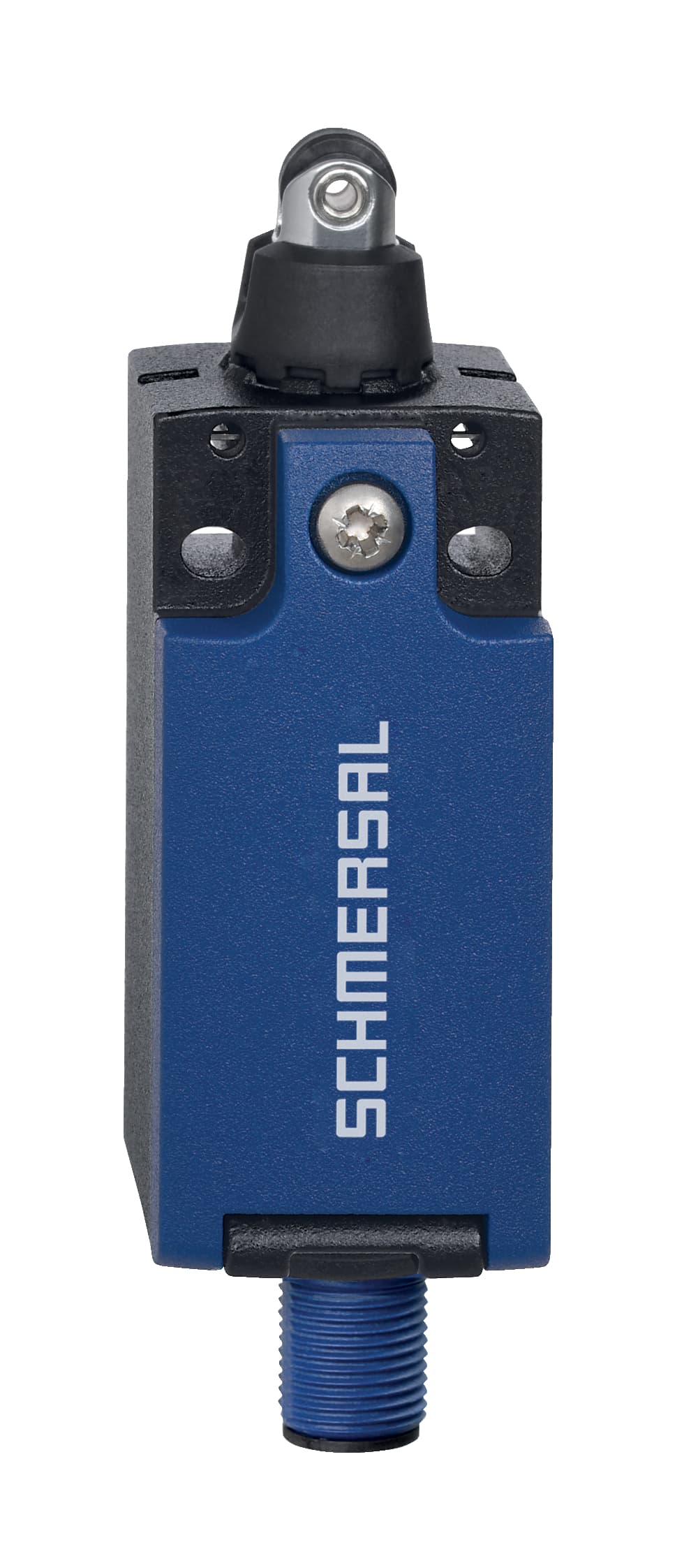

PS215-Z02-K230 Schmersal Safety Switches
Part#:PS215-Z02-K230
Alt. Part#:103014964
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS215-Z02-K230 Schmersal - Position switch; PS215; Metal enclosure; Design to EN 50047; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 1 x M20 x 1,5; Actuation from bottom parallel to the swit
Product Details
- Utilisation category DC-13 3 A
- Switching frequency 5,000 /h
- Switching principle Snap switch element
- Switching element 2 NC contact
- Utilisation category AC-15 240 VAC
- Rated impulse withstand voltage Uimp 4 kV
- Required rated short-circuit current to EN 60947-5-1 400 A
- Rated insulation voltage Ui 300 V
- Ambient temperature, maximum +80 °C
- Thermal test current 10 A
- Ambient temperature, minimum -30 °C
- Gross weight 203 g
- Degree of protection IP66, IP67
- Height of sensor 93.5 mm
- Safety functions Yes
- Width of sensor 31 mm
- Number of safety contacts 2
- Enclosure coating material painted

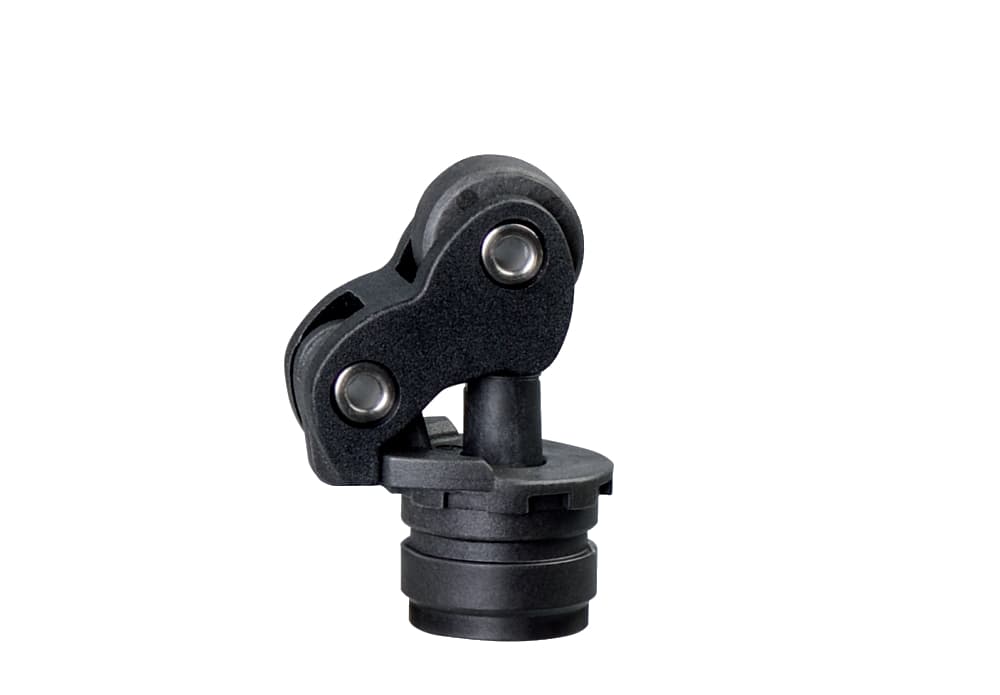

- Actuating element Angle roller lever K230
- Cable section, maximum 1.5 mm²
- Length of sensor 32.5 mm
- Cable section, minimum 0.34 mm²
- Actuating speed, maximum 1 m/s
- Terminal Connector Screw connection
- Actuating speed, minimum 10 mm/min
- Mechanical life, minimum 10,000,000 Operations
- Positive break force, minimum 40 N
- Standards IEC 60947-5-1
- Enclosure material Metal, zinc die-cast
- Material of the contacts, electrical Silver
- Housing construction form Norm construction design
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS215-Z02-K230 on Applied Automation is $96.00. Order now.
