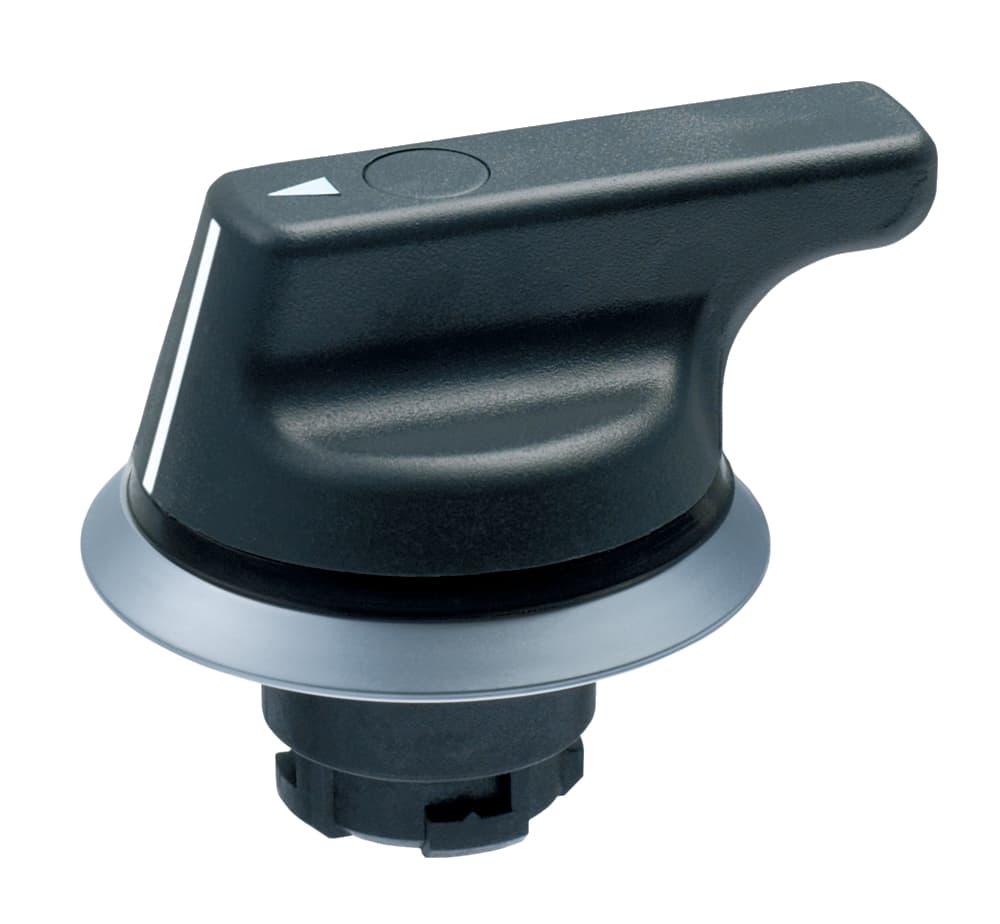

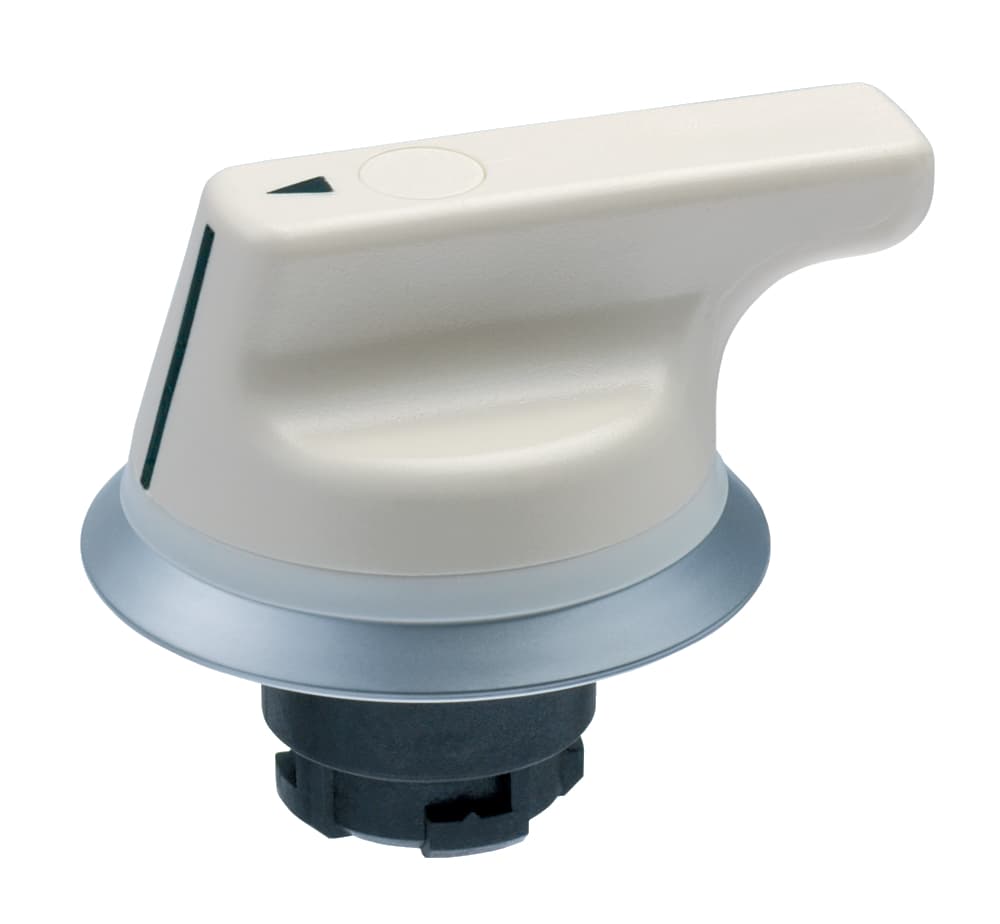

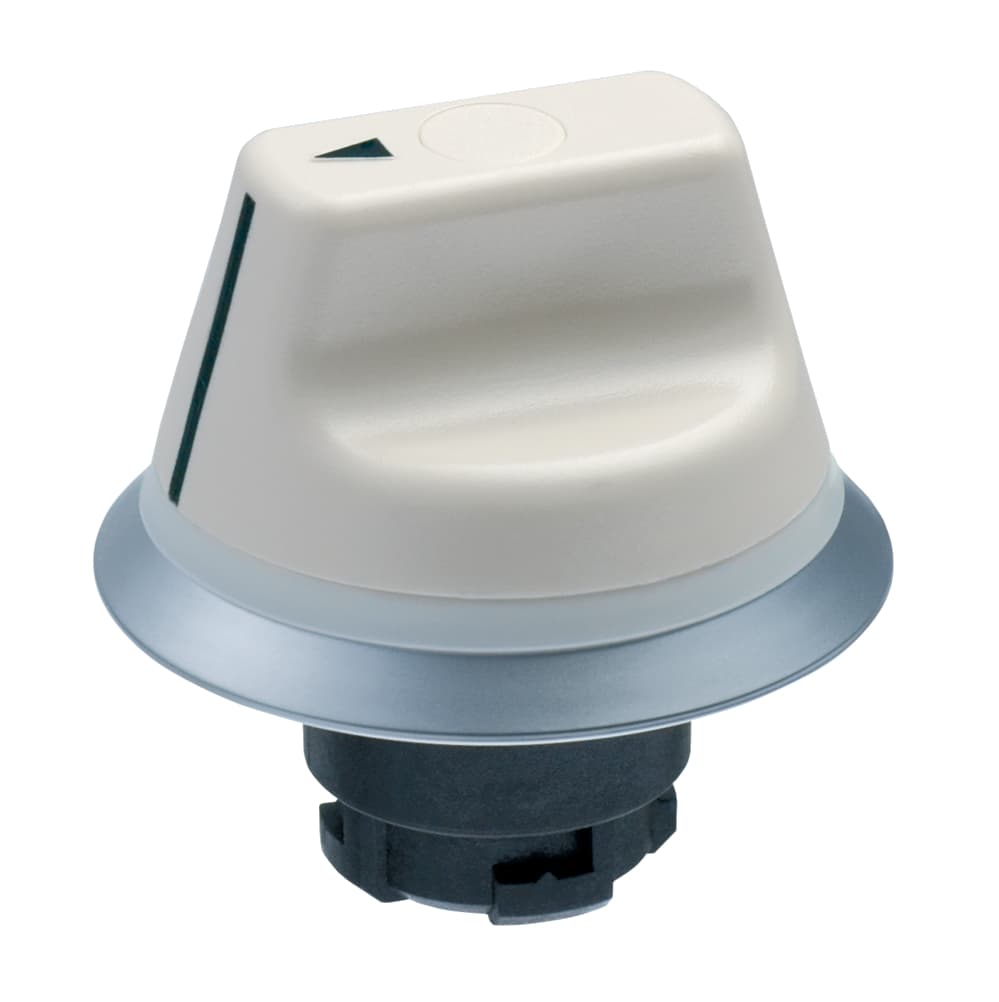

NWT32 Schmersal Selector Switches

Product Details

• Ambient temperature, maximum
  +80 °C
• Ambient temperature, minimum
  +0 °C
• Degree of protection
  IP67, IP69K
• Spacing
  50 x 50 mm
• Thickness of the front panel, maximum
  6 mm
• Thickness, of the front panel, minimum
  1.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Diameter hole
  22.3 mm
• Length of the handle
  28 mm
• diameters for the actuating heads
  44.5 mm
• Height
  26 mm
• Tightening torque of the screw
  0.6 Nm
• Mounting
  Mounting flange EFM
• Switching angle, right
  35 °
• Material of the operators
  ABS
• Switching angle, left
  35 °
• Touch position
  right, left
• Versions
  Toggle
• Unlocking
  without
• Material of the front ring
  ABS, chrome-plated
Colour of the handle
Grey
Number of switch positions
3
Sealing type
Membrane, Lip gaskets
Number of plunger
2
Toggle
short
Colour of the front ring
Silver
Fully insulated
Yes
Probing possible
Yes
Standards
EN 60947-5-1, IEC/EN 60947-1
Gross weight
35 g
