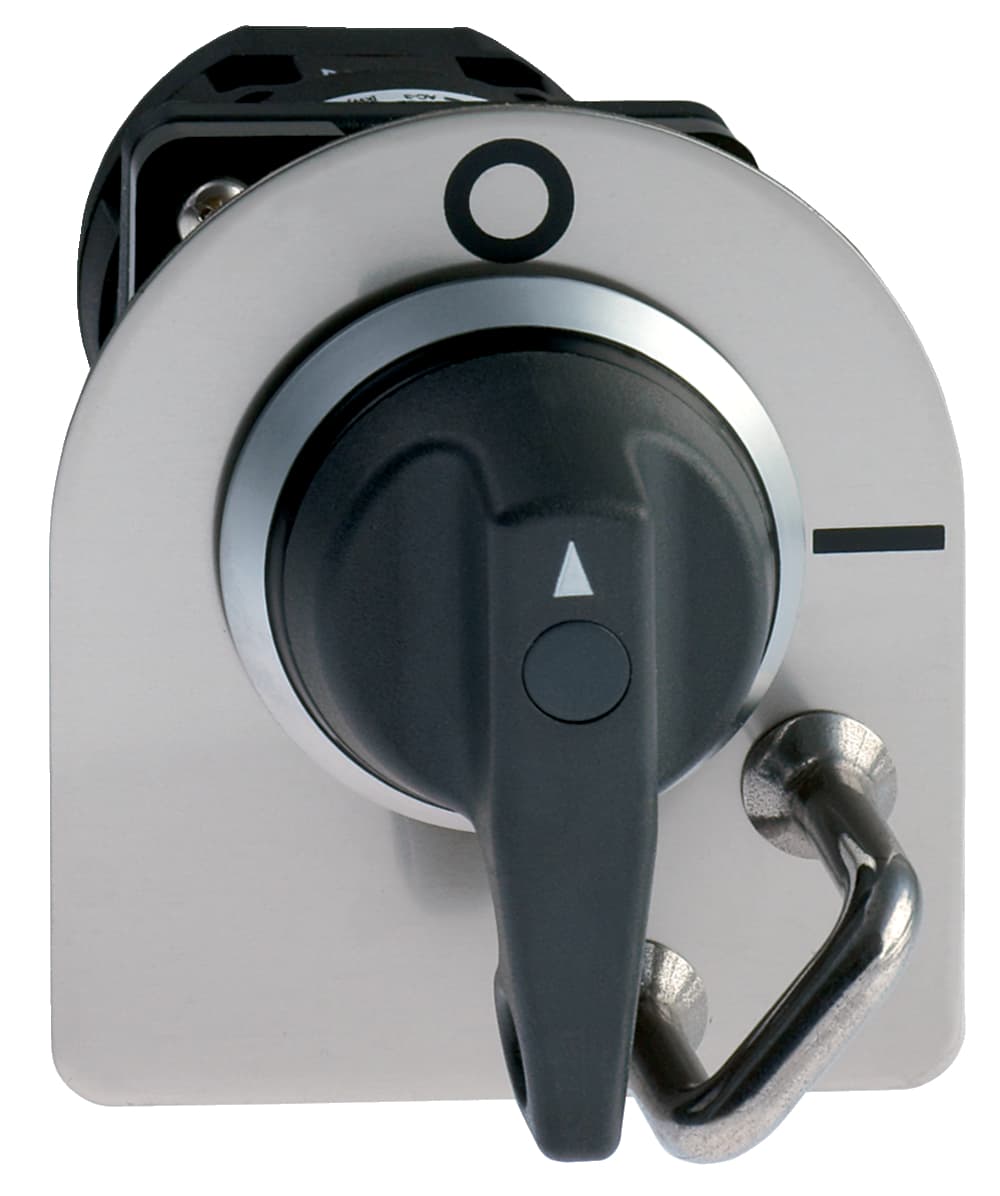

NHSNH40 Schmersal Disconnect Switches

Product Details

• Switching capacity, AC-23
  15,000 W
• Switching capacity, AC-3
  11,000 W
• Rated operating voltage
  690 V
• Degree of protection
  IP67, IP69K
• Ambient temperature, minimum
  +0 °C
• Ambient temperature, maximum
  +80 °C
• Thickness of the front panel, maximum
  6 mm
• Thermal test current
  40 A
• Thickness, of the front panel, minimum
  1.5 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Length of the handle
  52 mm
• Diameter hole
  22.3 mm
• Diameter of the knob
  39 mm
• Width
  48 mm
• Diameter of the front ring
  44.5 mm
• Height
  29 mm
• Length x Width x Height
  Grid dimensions: 110 mm x 110 mm, Dimensions of the mounting plate: 110 mm x 110 mm
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Mounting depth
  85 mm
• Length
  48 mm
switching angle
90 °
Tightening torque of the screw
0.6 Nm
Cable section, minimum
4 mm², rigid, 2.5 mm², flexible
Mounting
mounting flange
Terminal Connector
Screw connection
Mechanical life, minimum
1,000,000 Operations
Cable section, maximum
16 mm², rigid, 10 mm², flexible
Unlocking
Rotating unlatcher
Number of switch positions
2
Colour of the mounting plate
Silver
Fully insulated
Yes
Colour of the handle
Red
Gross weight
650 g
Latching
Yes
Versions
Toggle, Main switch - Front plate mounting
Colour of the bracket
Silver
Colour of the front ring
Silver
Standards
IEC 60947
Material of the bracket
Stainless steel (V4A)
Sealing type
Membrane, Lip gaskets
Colour of the identification plate
Yellow
Material of the mounting plate
Stainless steel (V4A)
Material of the identification label
Stainless steel (V4A)
Material of the operators
ABS
Material of the front ring
ABS, chrome-plated
