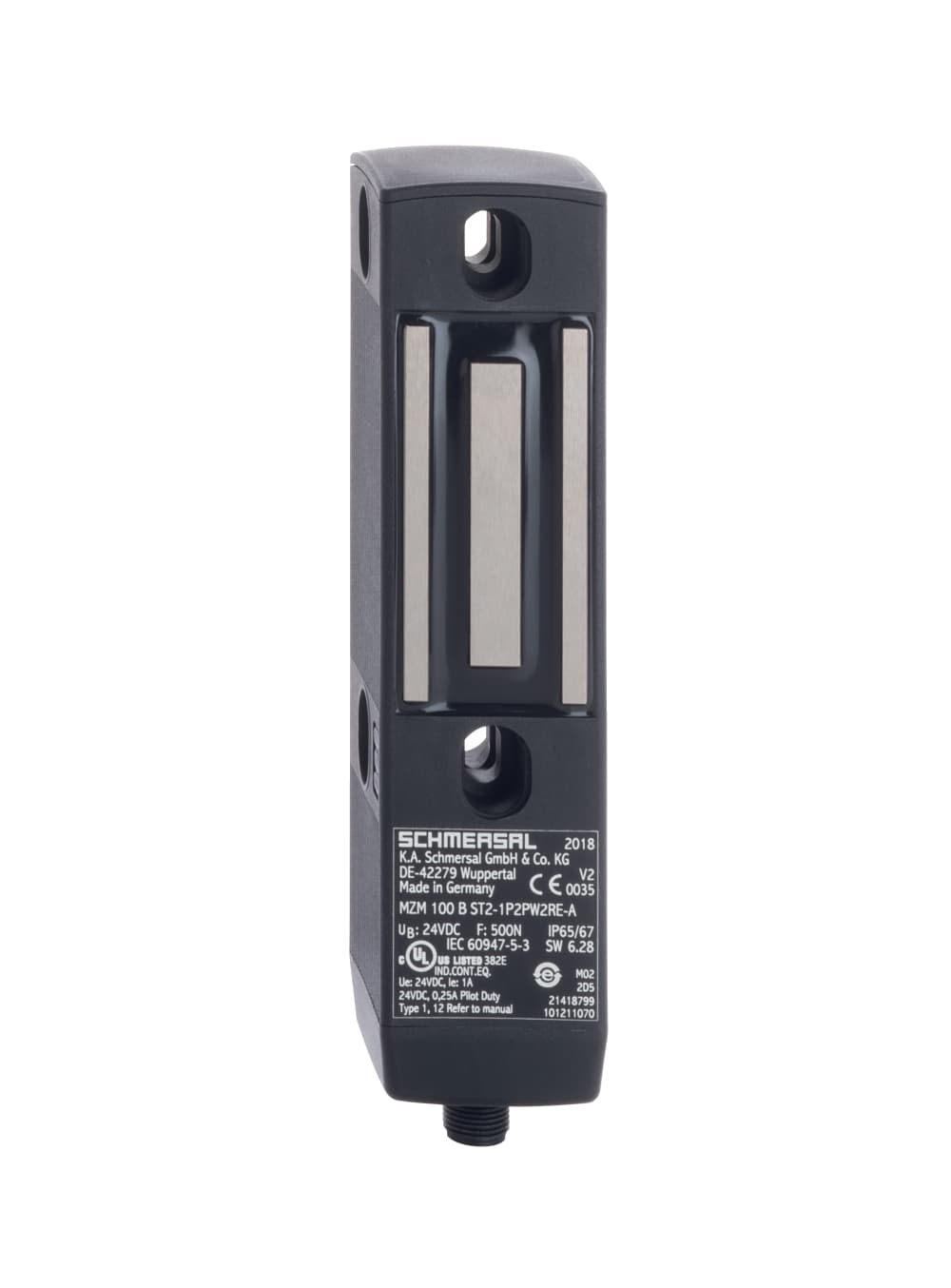

MZM 100 ST2-1P2PWRE-A Schmersal Safety Switch Interlocks

Product Details

• Voltage drop Ud, maximum
  2 V
• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Current leakage Ir
  0.5 mA
• Rated operating current (safety outputs)
  250 mA
• Classification ZVEI CB24I, Source
  C1
• Classification ZVEI CB24I, Sink
  C1
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Switching frequency, maximum
  1 Hz
• Note
  Cable length and cable section alter the voltage drop depending on the output current
• Operating current
  1,000 mA, 50 mA
• Required rated short-circuit current to EN 60947-5-1
  100 A
• No-load supply current I0
  600 mA
• Operating voltage, maximum
  26.4 VDC
• Operating voltage, minimum
  20.4 VDC
• Overvoltage category
  III
• Degree of pollution to VDE 0100
  3
• Rated impulse withstand voltage Uimp
  0.8 kV
• Rated insulation voltage Ui
  32 VDC
• Protection rating
  III
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
95 %
Storage and transport temperature, maximum
+70 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+55 °C
Ambient temperature, minimum
-25 °C
Relative humidity, minimum
30 %
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Height of sensor
179 mm
Width of sensor
40 mm
Clamping force, typically
750 N
Terminal Connector
Connector M12, 8-pole
Length of sensor
40 mm
Latching force, minimum
30 N
Clamping force, guaranteed
500 N
Latching force, maximum
100 N
Note (Mechanical lifetime)
Actuating speed < 0.5 m/s, Operations for door weights ≤ 5 kg
Mechanical life, minimum
1,000,000 Operations
Number of Series-wiring of sensors
31
Number of safety contacts
2
Short-circuit recognition
Yes
Safety functions
Yes
Integral System Diagnostics, status
Yes
Latching
Yes
Series-wiring
Yes
Short circuit detection
Yes
Guard locking monitored
Yes
Power to lock
Yes
Active principle
inductive
Reaction time, maximum
150 ms
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Enclosure material
Glass-fibre, reinforced thermoplastic
general information
Universal coding
Time to readiness, maximum
4,000 ms
Coding level according to ISO 14119
Low
Duration of risk, maximum
150 ms
Gross weight
700 g
