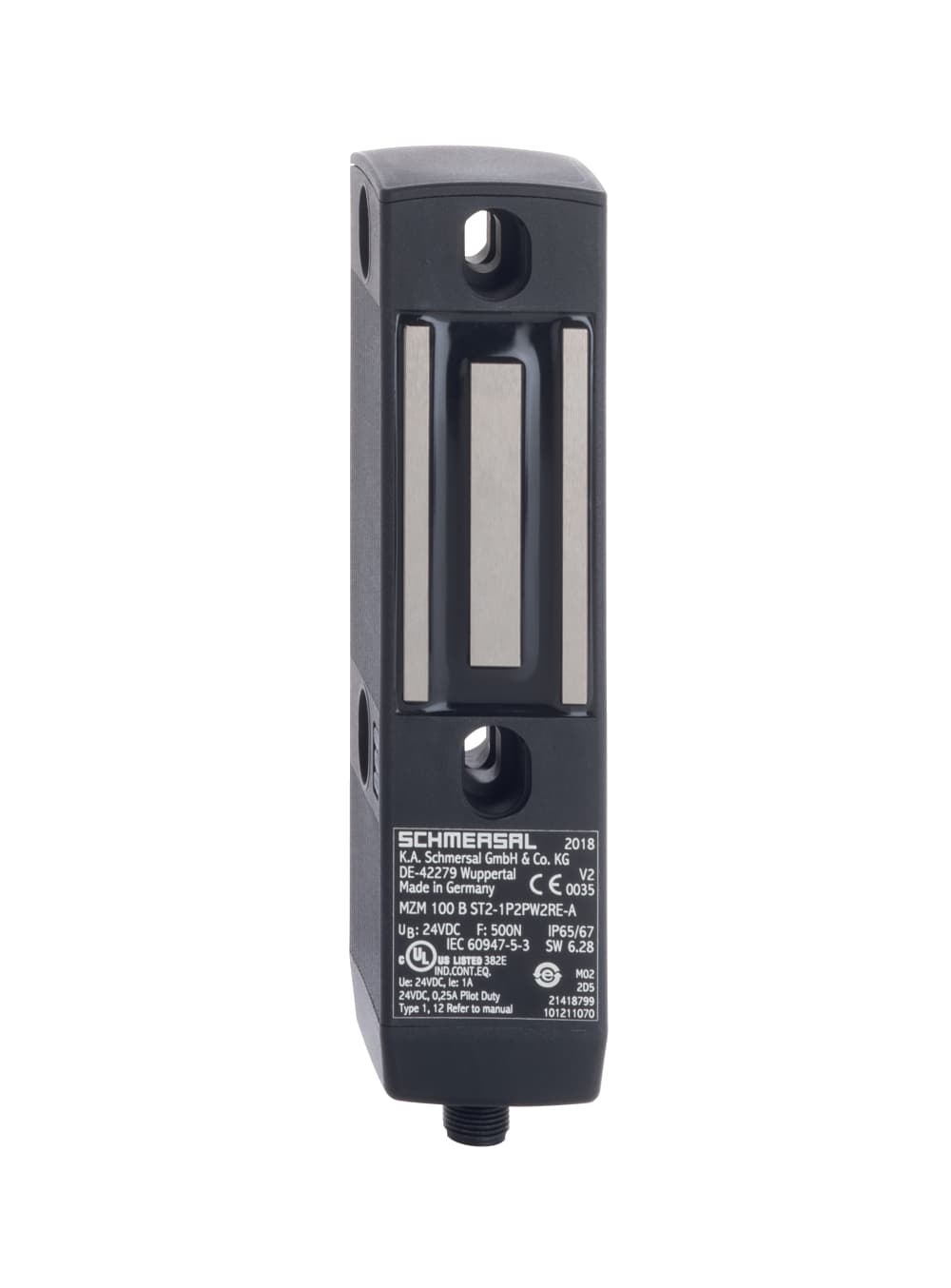

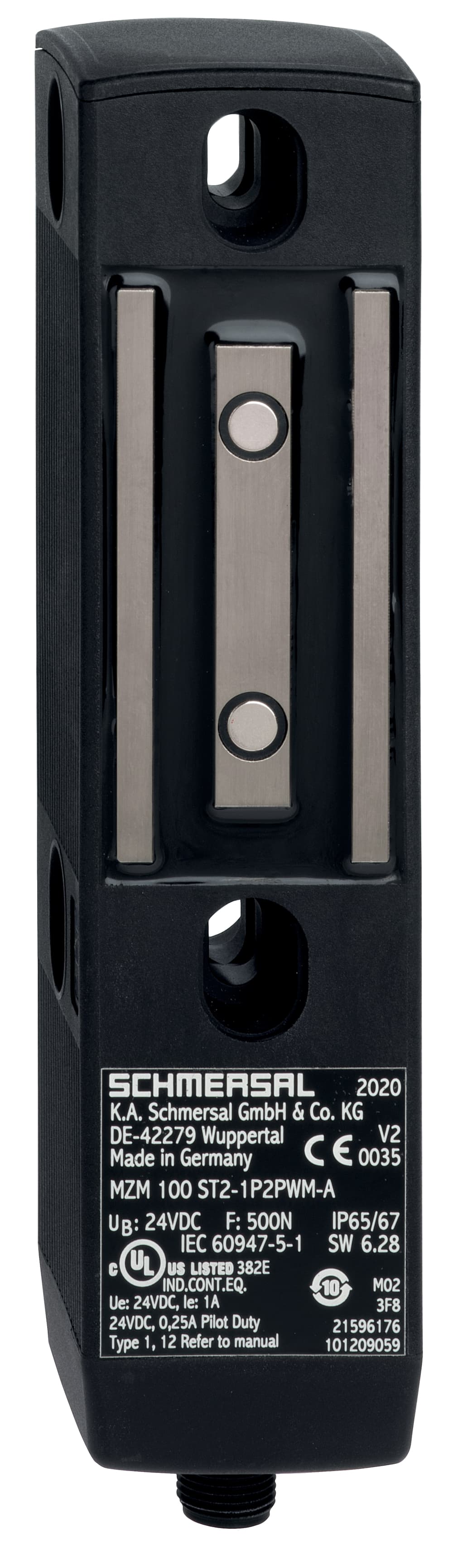

MZM 100 ST2-1P2PWREM-A Schmersal Safety Switch Interlocks

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Current, Utilisation category DC13
  0.05 A
• Classification ZVEI CB24I, Source
  C1
• Voltage drop Ud, maximum
  2 V
• Rated operating current (safety outputs)
  250 mA
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Switching frequency, maximum
  1 Hz
• Note
  Cable length and cable section alter the voltage drop depending on the output current
• No-load supply current I0
  600 mA
• Degree of pollution to VDE 0100
  3
• Overvoltage category
  III
• Rated insulation voltage Ui
  32 VDC
• Operating voltage, maximum
  26.4 VDC
• Protection rating
  III
• Relative humidity, minimum
  30 %
• Note (Relative humidity)
  non-condensing, non-icing
• Ambient temperature, minimum
  -25 °C
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Width of sensor
  40 mm
• Terminal Connector
  Connector M12, 8-pole
Note (Mechanical lifetime)
Actuating speed < 0.5 m/s, Operations for door weights ≤ 5 kg
Mechanical life, minimum
1,000,000 Operations
Clamping force, typically
750 N
Series-wiring
Yes
Safety functions
Yes
Integral System Diagnostics, status
Yes
Power to lock
Yes
Guard locking monitored
Yes
general information
Universal coding
Time to readiness, maximum
4,000 ms
Duration of risk, maximum
150 ms
Reaction time, maximum
150 ms
Current leakage Ir
0.5 mA
Classification ZVEI CB24I, Sink
C1
Required rated short-circuit current to EN 60947-5-1
100 A
Operating current
50 mA
Operating voltage, minimum
20.4 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
95 %
Storage and transport temperature, minimum
-25 °C
Storage and transport temperature, maximum
+70 °C
Ambient temperature, maximum
+55 °C
Height of sensor
179 mm
Length of sensor
40 mm
Latching force, minimum
45 N
Latching force, maximum
115 N
Clamping force, guaranteed
500 N
Number of safety contacts
2
Number of Series-wiring of sensors
31
Latching
Yes
Short circuit detection
Yes
Short-circuit recognition
Yes
Gross weight
698 g
Enclosure material
Glass-fibre, reinforced thermoplastic
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Coding level according to ISO 14119
Low
Active principle
inductive
