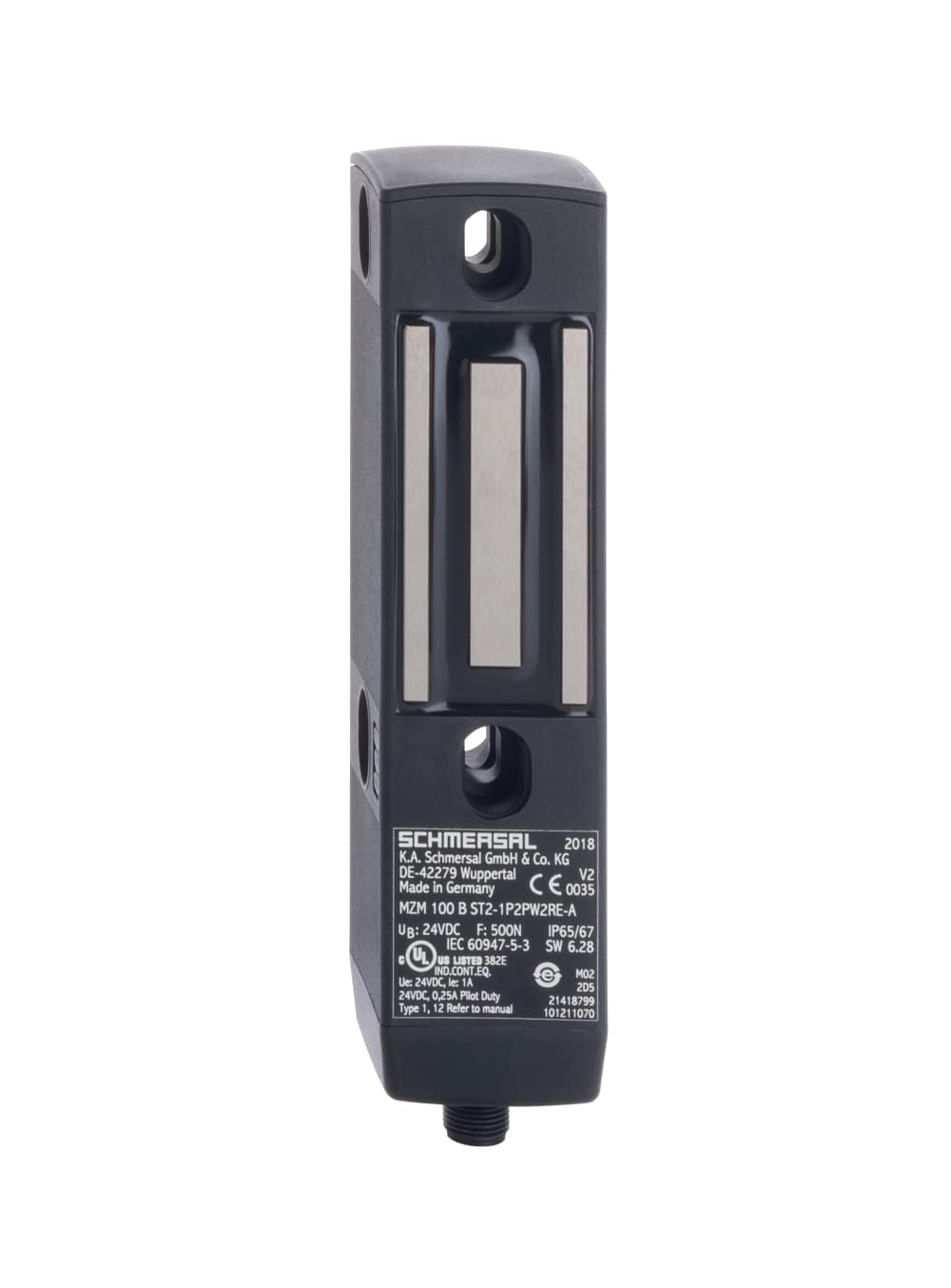

MZM 100 B ST2-1P2PW2RM-A Schmersal Safety Switch Interlocks

Product Details

• Voltage drop Ud, maximum
  2 V
• Current, Utilisation category DC13
  0.25 A
• Voltage, Utilisation category DC13
  24 VDC
• Rated operating current (safety outputs)
  250 mA
• Current leakage Ir
  0.5 mA
• Classification ZVEI CB24I, Source
  C1
• Classification ZVEI CB24I, Sink
  C1
• Switching thresholds
  -3 V … 5 V (Low), 15 V … 30 V (High)
• Note
  Cable length and cable section alter the voltage drop depending on the output current
• Switching frequency, maximum
  1 Hz
• Required rated short-circuit current to EN 60947-5-1
  100 A
• Operating current
  50 mA
• No-load supply current I0
  600 mA
• Operating voltage, maximum
  26.4 VDC
• Operating voltage, minimum
  20.4 VDC
• Degree of pollution to VDE 0100
  3
• Rated impulse withstand voltage Uimp
  0.8 kV
• Rated insulation voltage Ui
  32 VDC
• Protection rating
  III
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
Overvoltage category
III
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, maximum
95 %
Relative humidity, minimum
30 %
Storage and transport temperature, minimum
-25 °C
Storage and transport temperature, maximum
+70 °C
Ambient temperature, maximum
+55 °C
Ambient temperature, minimum
-25 °C
Height of sensor
179 mm
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Width of sensor
40 mm
Length of sensor
40 mm
Duration of risk, maximum
150 ms
Time to readiness, maximum
4,000 ms
Terminal Connector
Connector M12, 8-pole
Latching force
45 N
Reaction time, maximum
150 ms
Clamping force, guaranteed
500 N
Clamping force, typically
750 N
Mechanical life, minimum
1,000,000 Operations
Note (Mechanical lifetime)
Actuating speed < 0.5 m/s, Operations for door weights ≤ 5 kg
Number of safety contacts
2
Number of Series-wiring of sensors
31
Integral System Diagnostics, status
Yes
Enclosure material
Glass-fibre, reinforced thermoplastic
Series-wiring
Yes
Safety functions
Yes
Active principle
inductive
Gross weight
632 g
Standards
IEC 61508, EN 60947-5-3, EN ISO 13849-1
Short circuit detection
Yes
Short-circuit recognition
Yes
Latching
Yes
Actuator monitored
Yes
Power to lock
Yes
general information
Universal coding
Coding level according to ISO 14119
Low

Related documents MZM 100 B ST2-1P2PW2RM-A Specs
