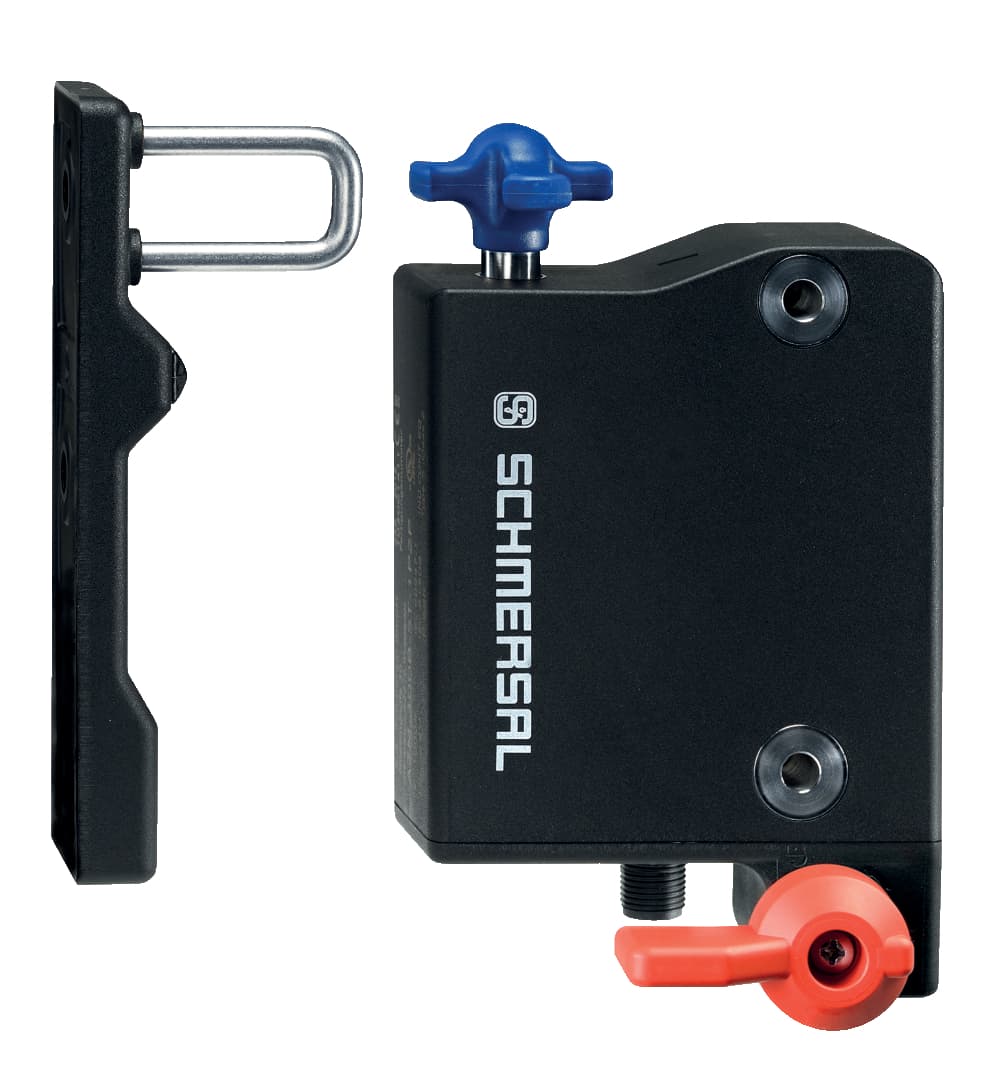

AZM300B-ST-1P2P-A-T Schmersal Safety Switches

Product Details

• Voltage, Utilisation category DC13
  24 VDC
• Test pulse interval, typical
  1000 ms
• Test pulse duration, maximum
  0.5 ms
• Current leakage Ir
  0.5 mA
• Current, Utilisation category DC12
  0.05 A
• Versions
  short-circuit proof, p-type
• Voltage drop Ud, maximum
  4 V
• Current, Utilisation category DC13
  0.05 A
• Voltage, Utilisation category DC12
  24 VDC
• Classification ZVEI CB24I, Source
  C2
• Classification ZVEI CB24I, Sink
  C1, C2
• Test pulse interval, minimum
  100 ms
• Current consumption at 24V
  5 mA
• Duty cycle solenoid
  100 %
• Switching frequency, maximum
  0.5 Hz
• Switching thresholds
  −3 V … 5 V (Low), 15 V … 30 V (High)
• Required rated short-circuit current to EN 60947-5-1
  100 A
• External wiring and device fuse rating
  2 A gG
• Current consumption with solenoid ON, peak
  350 mA / 200 ms
• No-load supply current I0
  100 mA
Current consumption with solenoid ON, average
200 mA
Notes (Power supply, general)
stabilised PELV power supply
Operating voltage, minimum
20.4 VDC
Operating voltage, maximum
26.4 VDC
Degree of pollution to IEC/EN 60664-1
3
Overvoltage category
III
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Protection rating
III
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Restistance to shock
30 g / 11 ms
Note (Relative humidity)
non-condensing, non-icing
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
93 %
Storage and transport temperature, maximum
+90 °C
Storage and transport temperature, minimum
-10 °C
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
+0 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
Height of sensor
55 mm
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Length of sensor
146 mm
Width of sensor
87.5 mm
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Length of sensor chain, maximum
200 m
Terminal Connector
Connector M12, 8-pole, A-coded
Ensured switch distance OFF Sar
20 mm
Ensured switch distance ON Sao
1 mm
Switch distance
2 mm
Tightening torque for the fixing screws, maximum
7 Nm
Tightening torque of the fixing screws, minimum
6 Nm
Type of the fixing screws
2x M6
Latching force, adjustable, position 2
50 N
Latching force, adjustable, position 1
25 N
Clamping force, maximum Fmax
1,500 N
Clamping force in accordance with ISO14119 Fzh
1,150 N
Angular offset between interlocking device and actuator, maximum
2 °
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Number of fail-safe digital outputs
2
Integral System Diagnostics, status
Yes
Mechanical life, minimum
1,000,000 Operations
Series-wiring
Yes
Short-circuit recognition
Yes
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Emergency exit
Yes
Safety functions
Yes
Actuator monitored
Yes
Response time safety outputs in case of switch-off by safety inputs, maximum
1.5 ms
Latching
Yes
Short circuit detection
Yes
Duration of risk, maximum
200 ms
Coding level according to ISO 14119
Low
Frequency band RFID
125 kHz
Gross weight
610 g
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Time to readiness, maximum
5,000 ms
Active principle
RFID
Transmit power, maximum
-6 dB/m
Standards
IEC 61508, IEC 60947-5-3, EN ISO 13849-1
general information
Universal coding
