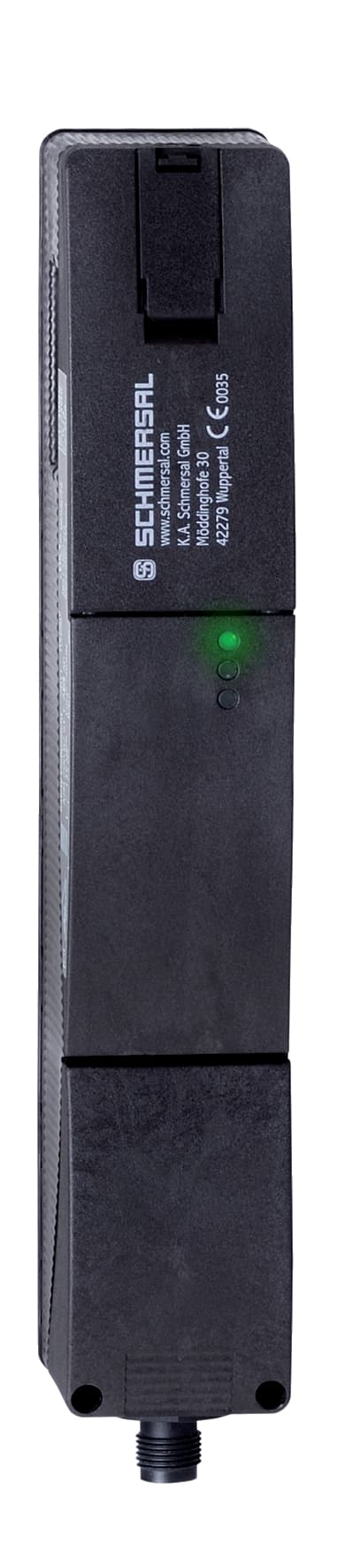

AZM201Z-ST-T-AS-A-P Schmersal Safety Switches

Product Details

• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Operating current
  500 mA
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Note (AS-i Parameter bits)
  FID: periphery error
• AS-i Input module address
  0
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Outputs, DO 3
  No Function
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i, ID-Code2
  0xE
• AS-i, ID-Code
  0xB
• AS-i, ID-Code1
  0xF
• AS-i, IO-Code
  0x7
• AS-i Profile
  S-7.B.F.E
AS-i Specification
Safety-Slave
AS-i Version
V 3.0
AS-i Current consumption, maximum
100 mA
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Operating voltage, minimum
26.5 VDC
Switching frequency, maximum
1 Hz
Note (AS-i Operating voltage)
Protection against polarity reversal
Degree of pollution to IEC/EN 60664-1
3
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Note (Relative humidity)
non-condensing, non-icing
Storage and transport temperature, maximum
+85 °C
Relative humidity, maximum
95 %
Relative humidity, minimum
10 %
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Ambient temperature, maximum
+60 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-25 °C
Height of sensor
220 mm
Tightening torque for the fixing screws, maximum
8 Nm
Clamping force, maximum Fmax
2,600 N
Length of sensor
50 mm
Actuating speed, maximum
0.2 m/s
Width of sensor
40 mm
Latching force
30 N
Safety functions
Yes
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Number of actuating directions
2
Clamping force in accordance with ISO14119 Fzh
2,000 N
Mechanical life, minimum
1,000,000 Operations
Latching
Yes
Guard locking monitored
Yes
Integral System Diagnostics, status
Yes
Manual release
Yes
Power to lock
Yes
general information
Universal coding
Gross weight
538.6 g
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Coding level according to ISO 14119
Low
Reaction time, maximum
100 ms
Active principle
RFID
Enclosure material
Glass-fibre, reinforced thermoplastic
Time to readiness, maximum
4,000 ms
Duration of risk, maximum
200 ms
