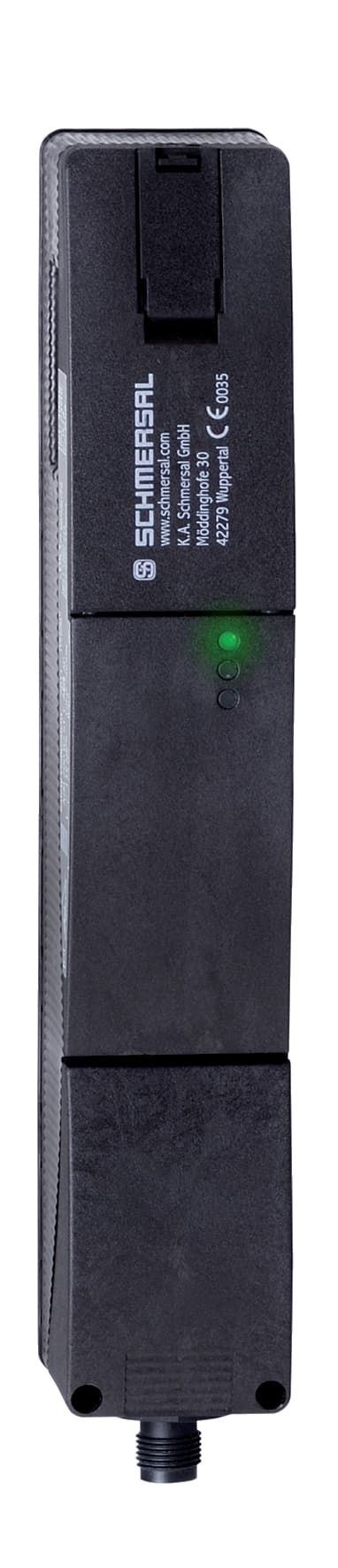

AZM201Z-I2-ST-T-AS-P Schmersal Safety Switches

Product Details

• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Note (AS-i Parameter bits)
  FID: periphery error
• AS-i Input module address
  0
• Operating current
  500 mA
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Outputs, DO 2
  No Function
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i Outputs, DO 3
  No Function
• AS-i, ID-Code2
  0xE
• AS-i, ID-Code1
  0xF
• AS-i Specification
  Safety-Slave
• AS-i, IO-Code
  0x7
• AS-i Profile
  S-7.B.F.E
AS-i Version
V 3.0
AS-i, ID-Code
0xB
AS-i Current consumption, maximum
100 mA
Switching frequency, maximum
1 Hz
Note (AS-i Operating voltage)
Protection against polarity reversal
Rated impulse withstand voltage Uimp
0.8 kV
Rated insulation voltage Ui
32 VDC
Overvoltage category
III
Protection rating
III
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Operating voltage, minimum
26.5 VDC
Degree of pollution to IEC/EN 60664-1
3
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
95 %
Note (Relative humidity)
non-condensing, non-icing
Storage and transport temperature, maximum
+85 °C
Relative humidity, minimum
10 %
Storage and transport temperature, minimum
-25 °C
Ambient temperature, maximum
+60 °C
Ambient temperature, minimum
-25 °C
Height of sensor
220 mm
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Width of sensor
40 mm
Length of sensor
50 mm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Tightening torque for the fixing screws, maximum
8 Nm
Actuating speed, maximum
0.2 m/s
Latching force
30 N
Clamping force in accordance with ISO14119 Fzh
2,000 N
Clamping force, maximum Fmax
2,600 N
Mechanical life, minimum
1,000,000 Operations
Number of actuating directions
2
Safety functions
Yes
Integral System Diagnostics, status
Yes
Manual release
Yes
Latching
Yes
Guard locking monitored
Yes
Duration of risk, maximum
200 ms
Power to unlock
Yes
Reaction time, maximum
100 ms
Time to readiness, maximum
4,000 ms
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
general information
Individual coding, multiple teaching
Gross weight
585 g
Enclosure material
Glass-fibre, reinforced thermoplastic
Coding level according to ISO 14119
High
Active principle
RFID

Related documents AZM201Z-I2-ST-T-AS-P Specs
