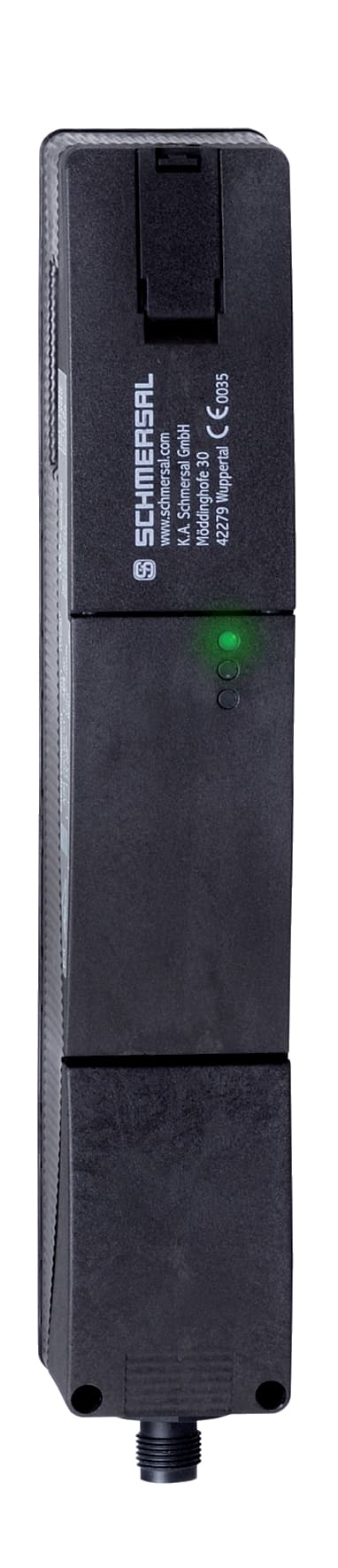

AZM201Z-I2-ST-T-AS-A-P Schmersal Safety Switches

Product Details

• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• Operating current
  500 mA
• Note (AS-i Parameter bits)
  FID: periphery error
• AS-i Input module address
  0
• AS-i Parameter bits, P3
  Internal device error (FID)
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Outputs, DO 3
  No Function
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 1
  No Function
• AS-i, ID-Code2
  0xE
• AS-i, ID-Code1
  0xF
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i, ID-Code
  0xB
• AS-i Version
  V 3.0
• AS-i Specification
  Safety-Slave
AS-i, IO-Code
0x7
AS-i Current consumption, maximum
100 mA
AS-i Profile
S-7.B.F.E
AS-i Operating voltage AS-i maximum
31.6 VDC
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage, minimum
26.5 VDC
Switching frequency, maximum
1 Hz
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Protection rating
III
Degree of pollution to IEC/EN 60664-1
3
Rated insulation voltage Ui
32 VDC
Restistance to shock
30 g / 11 ms
Rated impulse withstand voltage Uimp
0.8 kV
Overvoltage category
III
Ambient temperature, maximum
+60 °C
Note (Relative humidity)
non-condensing, non-icing
Storage and transport temperature, minimum
-25 °C
Relative humidity, maximum
95 %
Storage and transport temperature, maximum
+85 °C
Relative humidity, minimum
10 %
Ambient temperature, minimum
-25 °C
Clamping force in accordance with ISO14119 Fzh
2,000 N
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Height of sensor
220 mm
Length of sensor
50 mm
Width of sensor
40 mm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Tightening torque for the fixing screws, maximum
8 Nm
Latching force
30 N
Actuating speed, maximum
0.2 m/s
Clamping force, maximum Fmax
2,600 N
Integral System Diagnostics, status
Yes
Mechanical life, minimum
1,000,000 Operations
Number of actuating directions
2
Safety functions
Yes
Guard locking monitored
Yes
Manual release
Yes
Power to lock
Yes
Latching
Yes
Duration of risk, maximum
200 ms
Active principle
RFID
general information
Individual coding, multiple teaching
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Coding level according to ISO 14119
High
Enclosure material
Glass-fibre, reinforced thermoplastic
Time to readiness, maximum
4,000 ms
Reaction time, maximum
100 ms
Gross weight
538.5 g

Related documents AZM201Z-I2-ST-T-AS-A-P Specs
