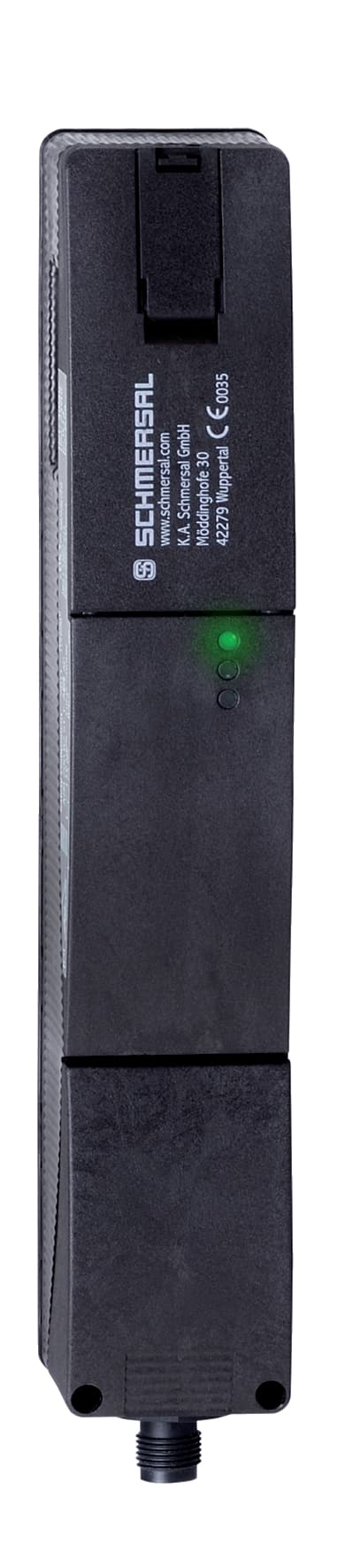

AZM201Z-I1-ST2-T-1P2PW Schmersal Safety Switches
Part#:AZM201Z-I1-ST2-T-1P2PW
Alt. Part#:103013485
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
AZM201Z-I1-ST2-T-1P2PW Schmersal - Solenoid interlocks; Individual coding with RFID technology; Power to unlock; Guard locking monitored; Thermoplastic enclosure; Max. length of the sensor chain 200 m; Self-monitoring series-wiring; Coding in accordance to ISO 14119 by using RFID-Technolog
Product Details
- No-load supply current I0 50 mA
- Restistance to shock 30 g / 11 ms
- Degree of protection IP66 to EN 60529, IP67 to EN 60529
- Clamping force, maximum Fmax 2,600 N
- Integral System Diagnostics, status Yes
- Short circuit detection Yes
- Coding level according to ISO 14119 High
- Current, Utilisation category DC13 0.05 A
- Voltage, Utilisation category DC13 24 VDC
- Rated operating current (safety outputs) 250 mA
- Current leakage Ir 0.5 mA
- Voltage drop Ud, maximum 4 V
- Classification ZVEI CB24I, Source C2
- Classification ZVEI CB24I, Sink C1, C2
- Current consumption with solenoid ON, average 200 mA
- Switching thresholds −3 V … 5 V (Low), 15 V … 30 V (High)
- Switching frequency, approx. 1 Hz
- Operating current 50 mA
- Current consumption with solenoid ON, peak 700 mA / 100 ms
- Operating voltage, maximum 26.4 VDC
- Note (Relative humidity) non-condensing
- Overvoltage category III
- Degree of pollution to VDE 0100 3
- Operating voltage, minimum 20.4 VDC
- Rated impulse withstand voltage Uimp 0.8 kV
- Rated insulation voltage Ui 32 VDC
- Protection rating III
- Relative humidity, maximum 95 %
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Relative humidity, minimum 30 %
- Ambient temperature, minimum -25 °C
- Ambient temperature, maximum +60 °C
- Storage and transport temperature, minimum -25 °C
- Storage and transport temperature, maximum +85 °C
- Length of sensor 50 mm
- Latching force 30 N
- Height of sensor 220 mm
- Width of sensor 40 mm
- Actuating speed, maximum 0.2 m/s
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Mechanical life, minimum 1,000,000 Operations
- Number of safety contacts 2
- Terminal Connector Connector M12, 8-pole
- Enclosure material Glass-fibre, reinforced thermoplastic
- Short-circuit recognition Yes
- Manual release Yes
- Response time safety outputs in case of switch-off by safety inputs, maximum 0.5 ms
- Series-wiring Yes
- Power to unlock Yes
- Safety functions Yes
- Guard locking monitored Yes
- Response time safety outputs in case of switch-off by actuator, maximum 100 ms
- Duration of risk, maximum 200 ms
- general information Individual coding
- Gross weight 595 g
- Standards IEC 60947-5-1, EN ISO 13849-1, IEC 61508
- Time to readiness, maximum 4,000 ms
- Active principle RFID
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM201Z-I1-ST2-T-1P2PW on Applied Automation is $880.00. Order now.
