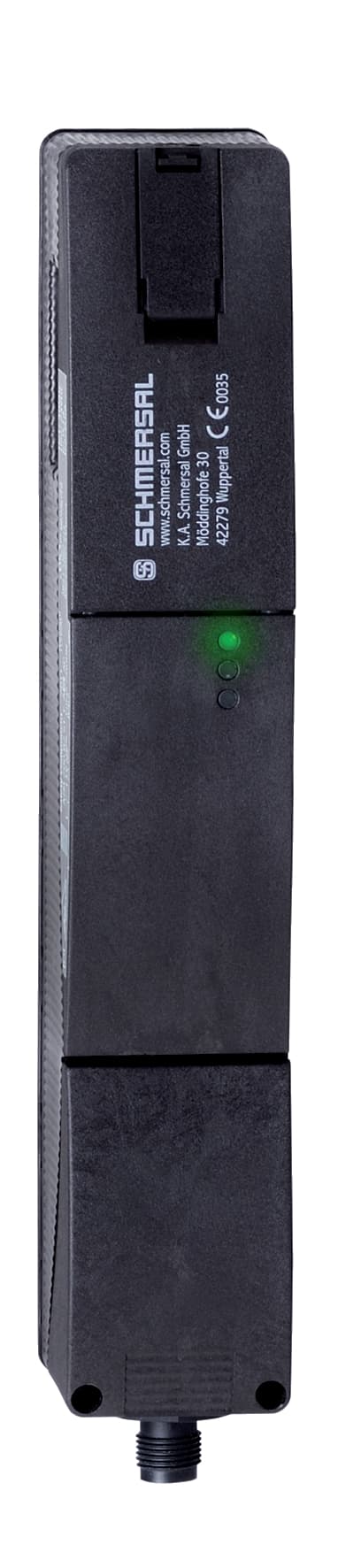

AZM201B-ST-T-AS-P Schmersal Safety Switches

Product Details

• Operating current
  500 mA
• Rated operating voltage
  24 VDC -15% / +10% (stabilised PELV)
• AS-i Input module address
  0
• Note (AS-i Parameter bits)
  FID: periphery error
• AS-i Parameter bits, P3
  Internal device error (FID)
• Note (AS-i Input module address)
  Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
• AS-i Parameter bits, P2
  Magnet voltage in tolerance range
• AS-i Parameter bits, P1
  Solenoid interlock locked
• AS-i Parameter bits, P0
  Safety guard and actuator detected
• AS-i Outputs, DO 3
  No Function
• AS-i Outputs, DO 2
  No Function
• AS-i Outputs, DO 1
  No Function
• AS-i Outputs, DO 0
  Solenoid control
• AS-i Input, Channel 1
  Data bits DI 0 / DI 1 = dynamic code transmission
• AS-i, ID-Code1
  0xF
• AS-i Input, Channel 2
  Data bits DI 2 / DI 3 = dynamic code transmission
• AS-i, ID-Code
  0xB
• AS-i, ID-Code2
  0xE
• AS-i, IO-Code
  0x7
• AS-i Profile
  S-7.B.F.E
AS-i Version
V 3.0
AS-i Specification
Safety-Slave
AS-i Current consumption, maximum
100 mA
Note (AS-i Operating voltage)
Protection against polarity reversal
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Operating voltage, minimum
26.5 VDC
Switching frequency, maximum
1 Hz
Degree of pollution to IEC/EN 60664-1
3
Overvoltage category
III
Rated insulation voltage Ui
32 VDC
Rated impulse withstand voltage Uimp
0.8 kV
Protection rating
III
Restistance to shock
30 g / 11 ms
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
Relative humidity, maximum
95 %
Note (Relative humidity)
non-condensing, non-icing
Relative humidity, minimum
10 %
Storage and transport temperature, maximum
+85 °C
Ambient temperature, maximum
+60 °C
Storage and transport temperature, minimum
-25 °C
Ambient temperature, minimum
-25 °C
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Length of sensor
50 mm
Height of sensor
220 mm
Width of sensor
40 mm
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Tightening torque for the fixing screws, maximum
8 Nm
Latching force
30 N
Actuating speed, maximum
0.2 m/s
Clamping force, maximum Fmax
2,600 N
Clamping force in accordance with ISO14119 Fzh
2,000 N
Mechanical life, minimum
1,000,000 Operations
Safety functions
Yes
Number of actuating directions
2
Integral System Diagnostics, status
Yes
Manual release
Yes
Latching
Yes
Power to unlock
Yes
Actuator monitored
Yes
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Coding level according to ISO 14119
Low
Reaction time, maximum
100 ms
general information
Universal coding
Time to readiness, maximum
4,000 ms
Enclosure material
Glass-fibre, reinforced thermoplastic
Duration of risk, maximum
200 ms
Active principle
RFID
Gross weight
537.7 g
