P32SA14SCNA2CN Parker Hannifin Industrial Automation Components

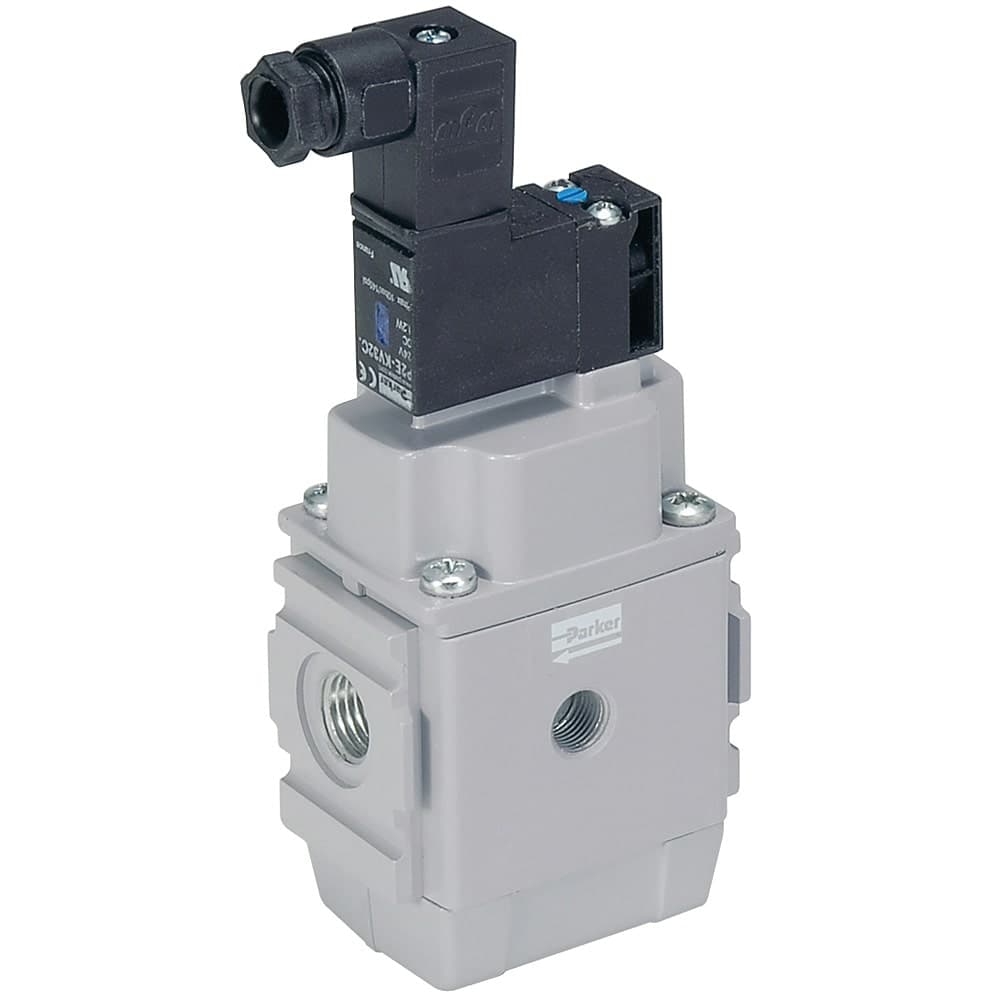

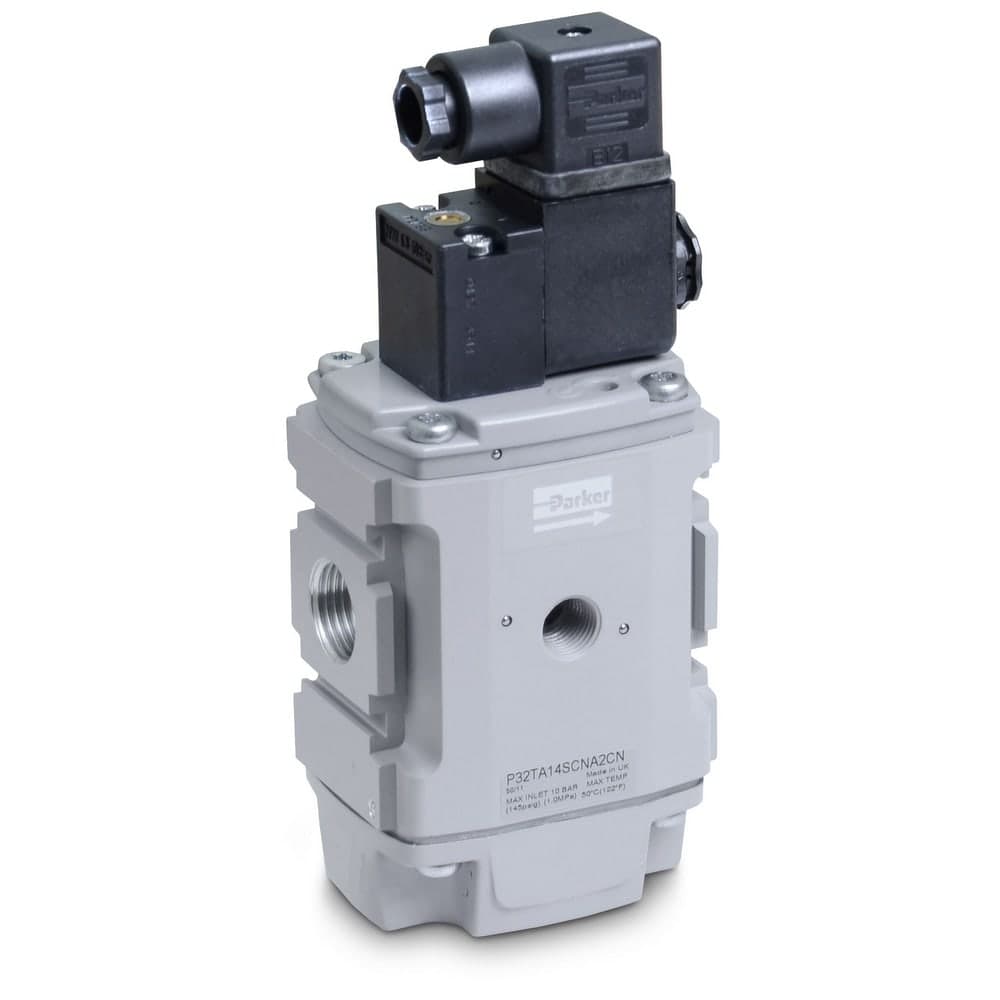

P32S modular global compact soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover. Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P32S can be mounted using a modular connector to other P32 global air preparation products.    Markets Air and Gas Appliances Entertainment Automation Factory Automation Machine Tools Misc. Industrial Misc. Manufacturing Molding Packaging Machinery Printing and Marking Equipment Vehicle Assembly Facilities Wearing Apparel Food and Beverage Misc. Processing Features/Benefits Modular design with 1/2" integral ports (NPT, BSPP & BSPT) The 2-way, 2-position function provides for the safe introduction of pressure Adjustable slow start Solenoid or air pilot options High flow Applications To be used in combination with valves and cylinders main function to protect and as safety device in Positioning Cutting Machining Pick and place Packaging and wrapping systems
