85442 Murr Elektronik AC/DC Power Supplies
Part#:85442
Manufacturer:Murr Elektronik
Category:AC/DC Power Supplies
Product Lifecycle:Active
Product description

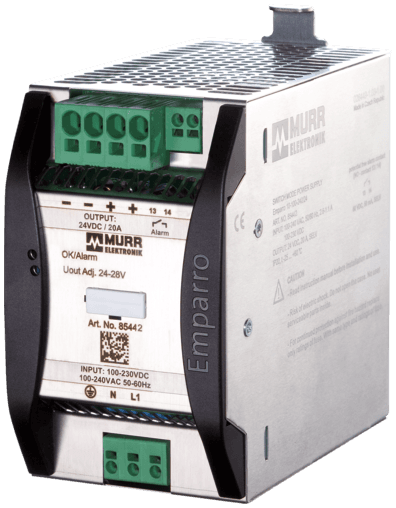

85442 Murrelektronik - EMPARRO POWER SUPPLY 1-PHASE, IN: 100-240VAC OUT: 24-28VDC/20A, Power Boost - for 4 seconds 50% additional power, Alarm Contact
Product Details
- Weight 1360 g
- Series Transformators/Power Supplies
- Frequency 50...60 Hz
- Product article number of manufacturer 85442
- Inrush current after 1 ms max. 23 A (230 V AC)
- Power factor 0.96 (230 V AC)
- Input fuse (internal) 10 A (T)
- Unit protection short-circuit and overload protected
- Input current 5.2 A (100 V AC); 2.2 A (240 V AC)
- Ripple max. 50 mV eff/rms
- Mains failure bridging time min. 30 ms (100 V AC); 20 A (24 V DC)
- LED display LED (green): OK; LED (red): overload, overheating or short-circuit
- Input voltage 90...265 V AC/90...250 V DC
- Parallel usage/serial usage max. 5 units/max. 2 units
- Spikes max. 200 mV ss/pp
- Output voltage 24 V DC (SELV), ±1%; 24...28 V adjustable
- Output current 20 A
- Power Boost Iout N × 150% (min. 4 s)
- Dimensions H×W×D 123×85×138 mm
- Temperature range -40...+60 °C, ...+70 °C derating (storage temperature -40...+80 °C)
- Protection IP20
- Standards IEC 61010-2-201, EN 61204-3, EN 55011 B, EN 61000-3-2, SEMI F47
- Connection Push-In spring clamp terminals
- Mounting method DIN-rail mountable TH35 (EN 60715)
- Relative humidity 5...95%, no condensation
- Efficiency 91.7% (110 V AC); 94.1% (230 V AC)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of 85442 on Applied Automation is $645.50. Order now.
85442 Related Documents
Manufacturer warranty
85442 Murr Elektronik
$645.50
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$645.50
$645.50 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare 85442 with other AC/DC Power Supplies products
Weight
Series
Frequency
Product article number of...
Inrush current after 1 ms
Power factor
Input fuse (internal)
Unit protection
Input current
Ripple
Selected product
85442
Murr Elektronik
85442 Murrelektronik - EMPARRO POWER SUPPLY 1-PHASE, IN: 100-240VAC OUT: 24-28VDC/20A, Power Boost -...
Weight1360 g
SeriesTransformators/Power Supplie...
Frequency50...60 Hz
Product article number of manufacturer85442
Inrush current after 1 msmax. 23 A (230 V AC)
Power factor0.96 (230 V AC)
Input fuse (internal)10 A (T)
Unit protectionshort-circuit and overload p...
Input current5.2 A (100 V AC); 2.2 A (240...
Ripplemax. 50 mV eff/rms
SVL2-24-100
SolaHD
SVL2-24-100 SolaHD single phase power supply, 100-240 VAC input, 24 VDC output, 2.1 A, 50W
Weight-
Series-
Frequency-
Product article number of manufacturer-
Inrush current after 1 ms-
Power factor-
Input fuse (internal)-
Unit protection-
Input current-
Ripple-
SVL5-24-100
SolaHD
SVL5-24-100 SolaHD single phase power supply, 100-240 VAC input, 24 VDC output, 5 A, 120W
Weight-
Series-
Frequency-
Product article number of manufacturer-
Inrush current after 1 ms-
Power factor-
Input fuse (internal)-
Unit protection-
Input current-
Ripple-
About the manufacturer
Applied Automation is an authorized Murr Elektronik distributor, offering a robust selection of high-quality components engineered to drive efficiency and innovation in industrial applications. Murr Elektronik, a leader in the electronics industry, specializes in providing sophisticated automation solutions that cater to diverse sectors by integrating cutting-edge technology with unmatched enginee...
About the Product Category
AC/DC power supplies are power supplies that convert alternating current from the grid into direct current that is needed to power most electronics. AC/DC power supplies are integral components in systems that make the world go round.
