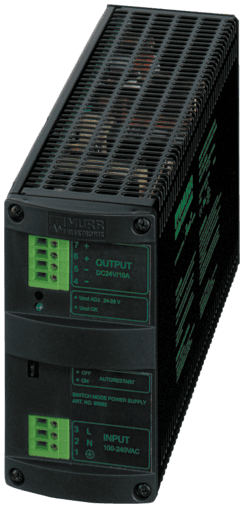

85063 Murr Elektronik AC/DC Power Supplies

Product Details

• Weight
  2700 g
• Series
  Transformators/Power Supplies
• Product article number of manufacturer
  85063
• Frequency
  50...60 Hz
• Input voltage
  90...265 V AC/110...300 V DC
• Input current
  5.5 A (100 V AC); 2.4 A (230 V AC)
• Parallel usage/serial usage
  max. 5 units/max. 2 units
• Unit protection
  short-circuit and overload protected
• Inrush current after 1 ms
  max. 30 A
• Spikes
  max. 250 mV ss/pp
• Output current
  20 A (+60 °C); 24 A (+40 °C, 110...265 V AC)
• Ripple
  max. 20 mV eff/rms
• Primary fusing external
  max. 16 A
• Mains failure bridging time
  min. 18 ms (230 V AC)
• Standards
  IEC 61010-2-201, EN 61204-3, EN 55022 B, EN 61000-3-2
• Efficiency
  87% (230 V AC)
• Dimensions H×W×D
  209×84×233 mm
• Output voltage
  24 V DC (SELV), ±1%; 24...28 V adjustable
• Relative humidity
  5...95%, no condensation
• Selectable switch-off mode
  front sided plug link (automatic re-start or definite shut-off)
LED display
LED (green) for output voltage
Temperature range
0...+60 °C (storage temperature -25...+85 °C)
Mounting method
Screw fixing M4, 4 pcs. in rectangle 60×197 mm

Related documents 85063 Specs
