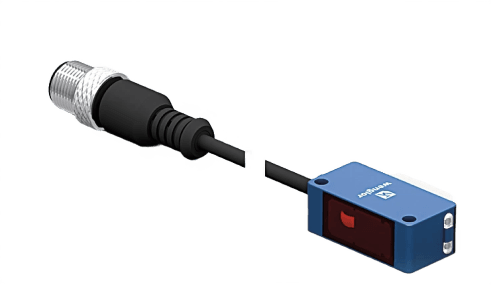

Through Beam Sensors on Applied Automation

Panasonic SC-T1JA is an I/O unit designed as an analog communication unit.

Panasonic FX-551-C2 is an amplifier designed for sensor applications, featuring a digital fiber sensor amplifier with a red LED and a 2m cable. It includes functions such as interference prevention, OFF-delay/ON-delay timer ranging from 0.1ms to 32s, and a one-shot timer. The case cover is made of polycarbonate, and the switch is constructed from polyacetal. This part is pre-wired with a 2m length 0.2mm2 3-core cabtyre cable terminated with bare end flying leads. It offers outputs short-circuit protection, operates at a wavelength of 660 nm, and can function within an ambient air temperature range of -10 to +55 °C. The FX-551-C2 has an IP40 degree of protection, supports both Light-ON and Dark-ON operating modes, and has a current consumption of 40mA (0.04 A) under normal conditions and 28mA (0.028 A) in eco mode, both at 24Vdc. It features 1 x digital output (NPN open-collector / 24Vdc / 100mA), with response times varying from 60µs to 24ms depending on the setting. The display includes a 4-digit red LED and a 4-digit green LED. Power consumption is 0.96 W in normal mode and 0.68 W in eco mode.

Panasonic FX-MR7 is a lens designed for use with reflective sensors, featuring an M3 thread for secure mounting. This cylindrical (threaded) barrel lens is compatible with a range of sensors, producing spot diameters of 0.1mm with FD-R33EG and FD-EG31, 0.15mm with FD-R34EG, 0.2mm with FD-R32EG and FD-EG30, and 0.4mm with FD-R31G, FD-32G, FD-32GX, FD-42G, and FD-42GW. It operates effectively within an ambient air temperature range of -55 to +70 degrees Celsius and offers a sensing distance of 7mm.

Panasonic FX-AT6G1 is a gland designed for use with mixed fibers, accommodating diameters of 1mm (0.039in) and 1.3mm (0.051in). It is available in a black and gray color scheme.

Panasonic FT-Z8Y-M5T is a fiber sensor designed with a rectangular head that is chemical- and oil-resistant, featuring both an emitter and receiver pair that complies with SEMI S2 standards. The construction of the sensor includes fluorine resin for the head, lens, and cable insulation, ensuring durability against harsh chemicals. It has a cable length of 5 meters and a beam axis diameter of 3.7mm. This sensor operates effectively within an ambient air temperature range of 0 to +60 °C and boasts an IP68G degree of protection, signifying its high resistance to dust and water ingress. Additionally, it is designed to withstand a minimum bending radius of R25, making it versatile for various installation environments.

Panasonic FT-E13 is a fiber sensor designed with a cylindrical smooth head for both the emitter and receiver, featuring a narrow beam. This sensor comes in a barrel shape with a total length of 1m. The head diameter measures 3mm, while the beam axis is notably thinner at 0.125mm. It is built to operate within an ambient air temperature range of -40 to +70°C, ensuring functionality in various environmental conditions. The FT-E13 is also equipped with an IP67 degree of protection, signifying its dust tightness and immersion resistance. Additionally, it has a minimum bending radius of R2, accommodating flexible installation requirements.

Panasonic FD-Z20HBW is a fiber sensor characterized by a rectangular shape and designed for operation in ambient air temperatures ranging from -40 to +60°C. It boasts a degree of protection rated at IP67, ensuring its durability and resistance to dust and water ingress. This flat fiber sensor with boss is specifically a fiber bending type, featuring a length of 1m and a minimum bending radius of R1.

Panasonic FD-V30W is a fiber sensor designed with a cylindrical (smooth) barrel shape, featuring a sleeve fiber sensor for side sensing. It has a head diameter of 3mm and a total length of 2m. This sensor operates within an ambient air temperature range of -40 to +60°C and offers a degree of protection rated at IP30. Its design allows for a minimum bending radius of R1, accommodating flexible installation requirements.

Panasonic FD-V30 is a fiber sensor designed with a cylindrical (smooth) barrel shape, featuring side sensing capabilities. It has a head diameter of 3mm and a total length of 2m. This sensor operates within an ambient air temperature range of -55 to +80°C and offers a degree of protection rated at IP30. Its design includes a minimum bending radius of R2, making it suitable for various applications where space and flexibility are considerations.

Panasonic FD-S34G is a fiber sensor characterized by a cylindrical smooth head design, incorporating a coaxial structure with a lens. It features a 3mm diameter head and a total length of 2m. The sensor operates within an ambient air temperature range of -40 to +70°C and is rated with an IP40 degree of protection, indicating protection against solid objects larger than 1mm but not against liquids. Its design allows for a minimum bending radius of R2, facilitating installation in tight spaces while maintaining the integrity of the fiber.
