860.640.12 Werma Signal Towers

Product Details

• Conforms with VdS
  No
• Conforms with RoHS CN
  No
• ICAO Certification
  No
• Conforms with GL
  No
• EAC certificate available
  Yes
• Conforms with AS-I
  No
• Conforms with FCC
  No
• Conforms with UL
  No
• Conforms with IC
  No
• Conforms with RED directive
  Yes
• Conforms with CCC
  No
• Conforms with CE
  Yes
• Service life optical
  50,000 h maximum
• Conform with ATEX-directive
  No
• WEEE
  Yes
• Pollution degree
  2
• connectivity
  WIN
• Protection class
  Protection class 2
• Rated operational current
  40 mA
• Rated operational voltage
  24 VDC

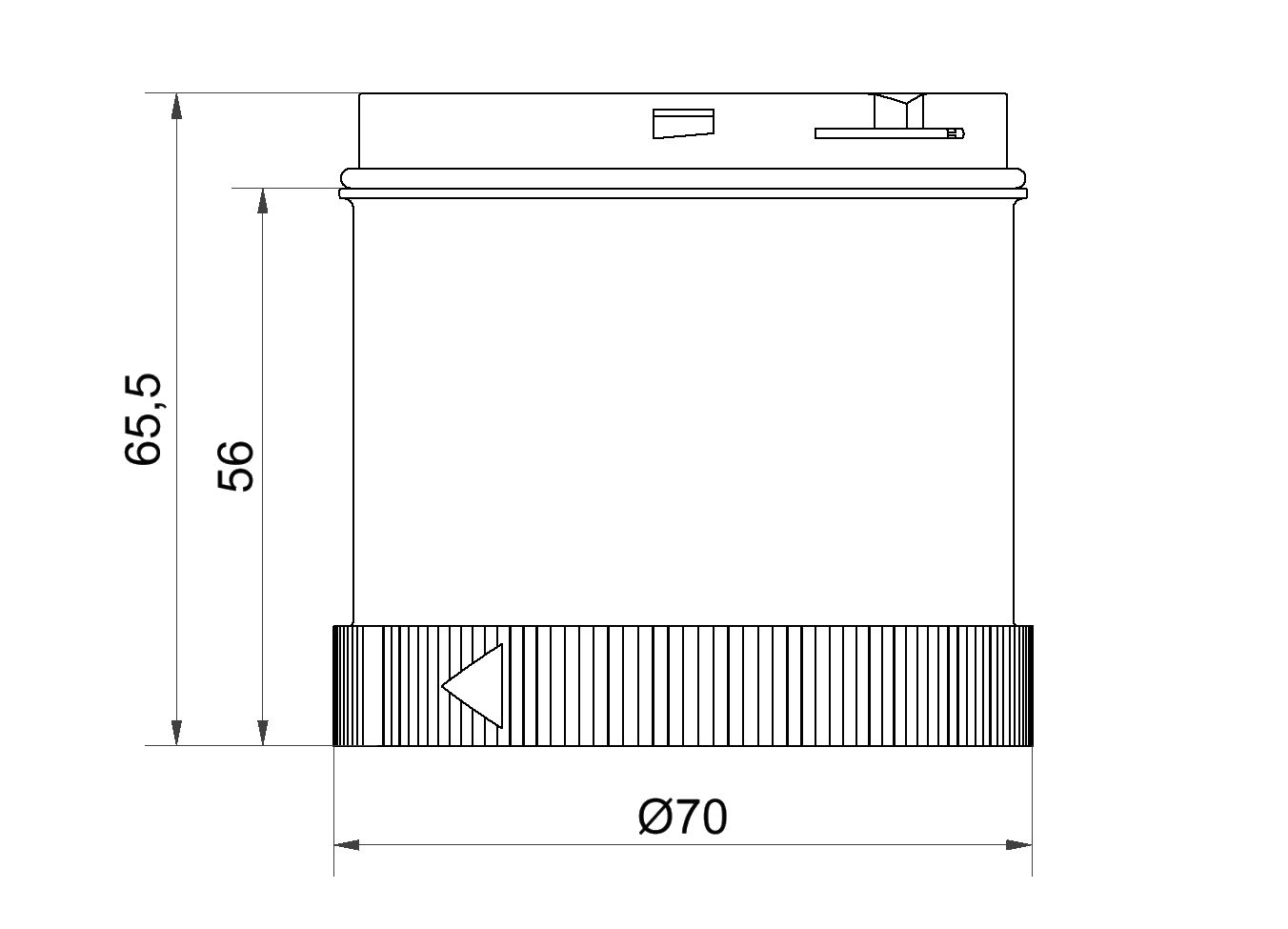

Height
66 mm
Operating voltage frequency
50Hz
Operating voltage
24V
Operating voltage tolerance
+/- 10%
Product weight
80 g
Operating voltage type
AC/DC
Rated inrush current
430 mA
Housing colour
Black
Diameter
70 mm
Connection
USB
Working temperature minimum
-20°C
Protection category
IP65
Materials
PC
Weight with packaging
102 g
Working temperature maximum
+50°C
