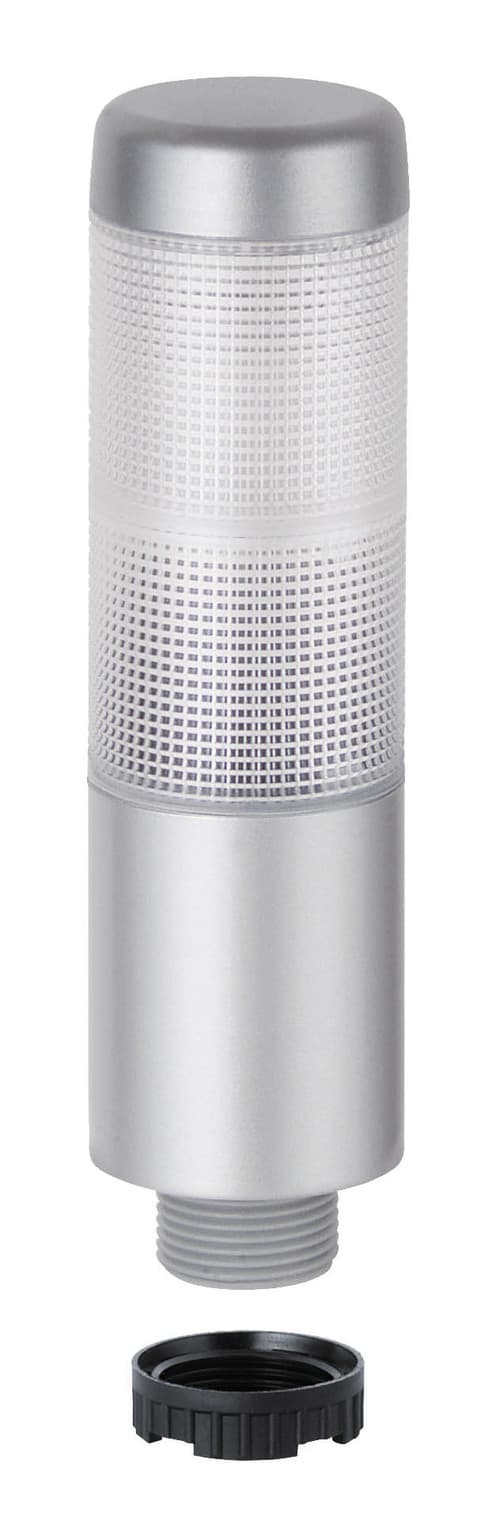

699.420.75 Werma Signal Towers

Product Details

• Conforms with RoHS CN
  No
• Conforms with VdS
  No
• Conforms with FCC
  cULus
• ICAO Certification
  No
• UL Type Rating
  No
• Conforms with AS-I
  No
• Conforms with IC
  Type 12
• EAC certificate available
  Type 4X
• Conforms with GL
  Yes
• Conforms with UL
  No
• Conforms with CCC
  No
• Conform with ATEX-directive
  Yes
• Conforms with CE
  2900 Hz
• Conforms with RED directive
  Yes
• Acoustic service life
  Pulse tone
• Audio frequency
  85,0 dB (A)
• WEEE
  5,000 h minimum
• Volume (max) at 1m distance
  Permanent
• Service life optical
  Red
• Acoustic signal image
  50,000 h maximum
Light colour
LED
Optical signal image
Green
Protection class
Protection class 2
Pollution degree
3
Rated operational voltage
24 VDC
Rated inrush current
500 mA
Light source
In the connection area: 2
Operating voltage tolerance
+/- 10%
Rated operational current
95 mA
Operating voltage frequency
50Hz
Operating voltage type
AC/DC
Working temperature maximum
+50°C
Operating voltage
24V
Product weight
76 g
Weight with packaging
116 g
Working temperature minimum
-20°C
Tension relief
Pull-out protection
Type of fixing
Built-in mounting
Cable entry maximum
d = 9 mm
Height
141 mm
Protection category
IP65
Cable entry minimum
d = 1 mm
Housing colour
Black
Dome colour
Clear
Diameter
38 mm
Connection
M12 plug 5-pole
Cable entry
Membrane grommet
Materials
PC
