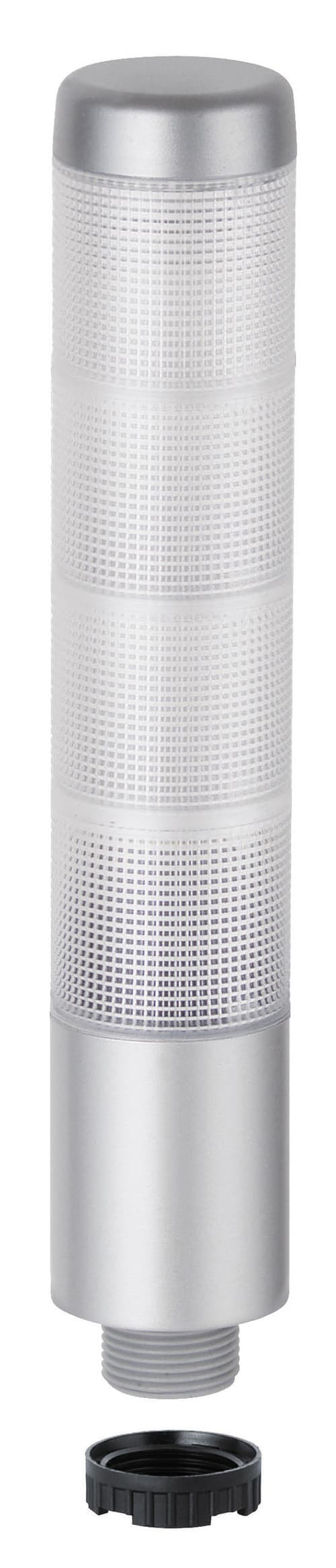

699.340.75 Werma Signal Towers

Product Details

• Conforms with GL
  No
• ICAO Certification
  Type 4X
• EAC certificate available
  cULus
• Conforms with FCC
  No
• Conforms with VdS
  Yes
• Conforms with RoHS CN
  No
• Conforms with IC
  No
• Conforms with AS-I
  Type 12
• UL Type Rating
  No
• Conforms with UL
  Yes
• Conforms with CCC
  Yes
• Conforms with RED directive
  2900 Hz
• Conform with ATEX-directive
  5,000 h minimum
• WEEE
  Pulse tone
• Conforms with CE
  85,0 dB (A)
• Acoustic service life
  50,000 h maximum
• Acoustic signal image
  Yellow
• Audio frequency
  Permanent
• Volume (max) at 1m distance
  White
• Light colour
  LED
Light source
In the connection area: 2
Optical signal image
Green
Service life optical
Red
Protection class
Protection class 2
Pollution degree
3
Operating voltage tolerance
+/- 10%
Rated operational current
160 mA
Rated operational voltage
24 VDC
Rated inrush current
500 mA
Operating voltage frequency
50Hz
Operating voltage type
AC/DC
Operating voltage
24V
Product weight
198 g
Weight with packaging
239 g
Working temperature maximum
+50°C
Working temperature minimum
-20°C
Cable length
2000 mm
Type of fixing
Built-in mounting
Tension relief
Pull-out protection
Cable entry maximum
d = 9 mm
Cable entry minimum
d = 1 mm
cross-sectional area maximum
0,34mm² / 22AWG
Cable entry
Membrane grommet
Housing colour
Silver
Protection category
IP65
Dome colour
Clear
Materials
PC
Diameter
38 mm
Height
209 mm
Connection
Cable
