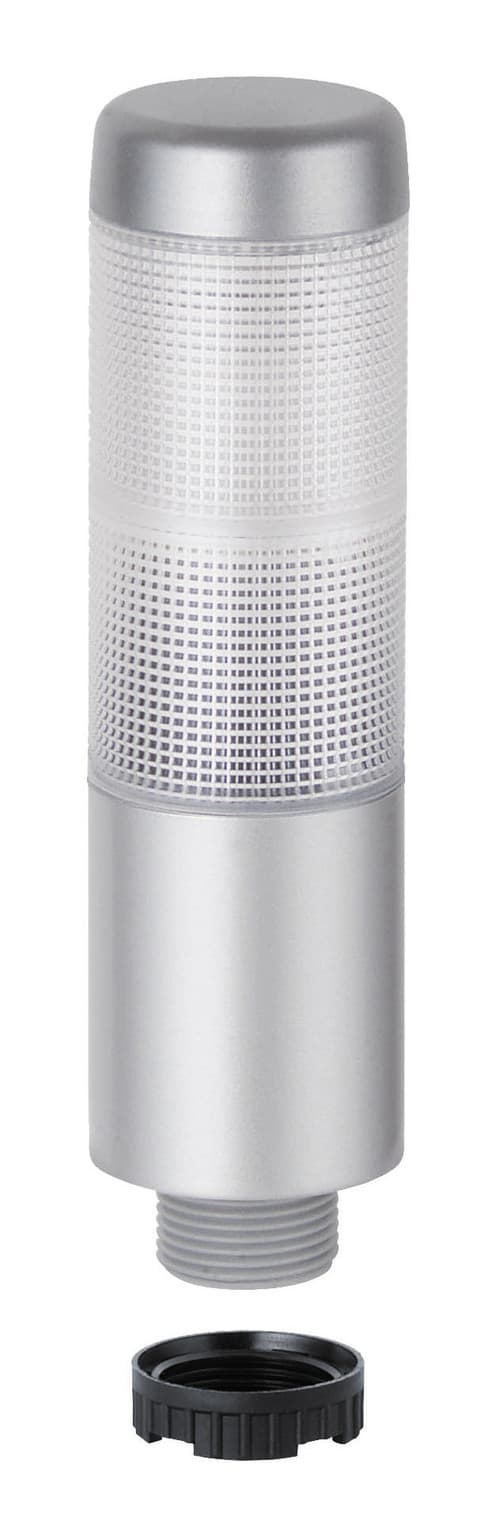

698.420.75 Werma Signal Towers

Product Details

• Conforms with FCC
  cULus
• Conforms with VdS
  No
• Conforms with AS-I
  No
• Conforms with RoHS CN
  No
• Conforms with GL
  Yes
• Conforms with IC
  Type 12
• ICAO Certification
  No
• UL Type Rating
  No
• EAC certificate available
  Type 4X
• Conforms with UL
  No
• Conform with ATEX-directive
  Yes
• Conforms with CCC
  No
• Conforms with RED directive
  Yes
• WEEE
  50,000 h maximum
• Service life optical
  Red
• Conforms with CE
  Permanent
• Optical signal image
  Green
• Light colour
  LED
• Pollution degree
  3
• Light source
  In the connection area: 2
Rated operational voltage
24 VDC
Rated inrush current
500 mA
Operating voltage tolerance
+/- 10%
Protection class
Protection class 2
Rated operational current
70 mA
Operating voltage frequency
50Hz
Operating voltage type
AC/DC
Operating voltage
24V
Tension relief
Pull-out protection
Product weight
74 g
Weight with packaging
115 g
Cable entry maximum
d = 9 mm
Working temperature maximum
+50°C
Working temperature minimum
-20°C
Type of fixing
Built-in mounting
Materials
PC
Cable entry minimum
d = 1 mm
Cable entry
Membrane grommet
Diameter
38 mm
Housing colour
Black
Protection category
IP65
Dome colour
Clear
Connection
M12 plug 5-pole
Height
141 mm
