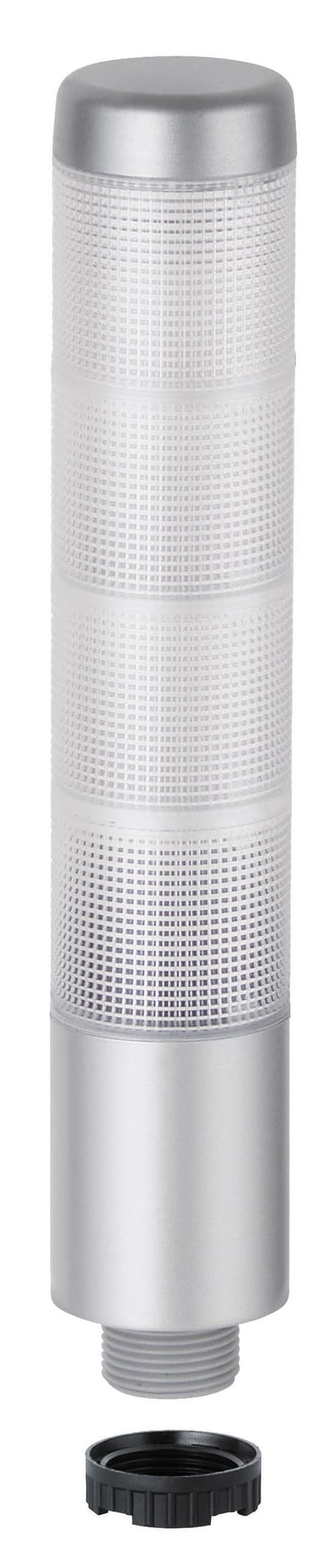

698.340.75 Werma Signal Towers

Product Details

• ICAO Certification
  Type 4X
• Conforms with RoHS CN
  No
• Conforms with VdS
  Yes
• Conforms with GL
  No
• Conforms with AS-I
  Type 12
• EAC certificate available
  cULus
• Conforms with IC
  No
• UL Type Rating
  No
• Conforms with FCC
  No
• Conforms with CCC
  Yes
• Conforms with UL
  Yes
• Conform with ATEX-directive
  50,000 h maximum
• Conforms with RED directive
  Permanent
• WEEE
  Yellow
• Conforms with CE
  White
• Optical signal image
  Green
• Service life optical
  Red
• Light colour
  LED
• Light source
  In the connection area: 2
• Pollution degree
  3
Protection class
Protection class 2
Rated operational current
135 mA
Rated operational voltage
24 VDC
Rated inrush current
500 mA
Operating voltage frequency
50Hz
Operating voltage type
AC/DC
Operating voltage tolerance
+/- 10%
Operating voltage
24V
Product weight
195 g
Working temperature maximum
+50°C
Weight with packaging
236 g
Type of fixing
Built-in mounting
Tension relief
Pull-out protection
Cable length
2000 mm
Working temperature minimum
-20°C
Cable entry maximum
d = 9 mm
Cable entry minimum
d = 1 mm
Housing colour
Silver
Cable entry
Membrane grommet
cross-sectional area maximum
0,34mm² / 22AWG
Materials
PC
Connection
Cable
Protection category
IP65
Dome colour
Clear
Diameter
38 mm
Height
209 mm
