690.200.55 Werma Signal Towers

Product Details

• Conforms with RoHS CN
  No
• Conforms with VdS
  No
• ICAO Certification
  No
• Conforms with GL
  No
• Conforms with AS-I
  Yes
• EAC certificate available
  No
• Conforms with IC
  No
• Conforms with UL
  No
• Conforms with FCC
  No
• Conforms with CCC
  No
• Conform with ATEX-directive
  No
• Conforms with RED directive
  Yes
• Acoustic service life
  2400 Hz
• WEEE
  Yes
• Conforms with CE
  5,000 h minimum
• Acoustic signal image
  85,0 dB (A)
• Volume (max) at 1m distance
  50,000 h maximum
• Audio frequency
  Continuous tone
• Service life optical
  Permanent
• Light source
  3
Optical signal image
MC 3 colours
Light colour
LED
Protection class
300 mA
Pollution degree
Protection class 2
Rated inrush current
300 mA
Rated operational current
24 VDC
Operating voltage tolerance
DC
Rated operational voltage
+/- 10%
Operating voltage type
24V
Operating voltage
245 g
Product weight
305 g
Weight with packaging
+50°C
Working temperature maximum
-30°C
Working temperature minimum
Base mounting
Cable entry maximum
d = 1 mm
Type of fixing
d = 11 mm
Cable entry minimum
Membrane grommet
Cable entry
1,50mm² / 16AWG
Connection
IP65
cross-sectional area maximum
Screw terminals
Protection category
Black
Dome colour
PC/ABS
Housing colour
Clear
Materials
PC

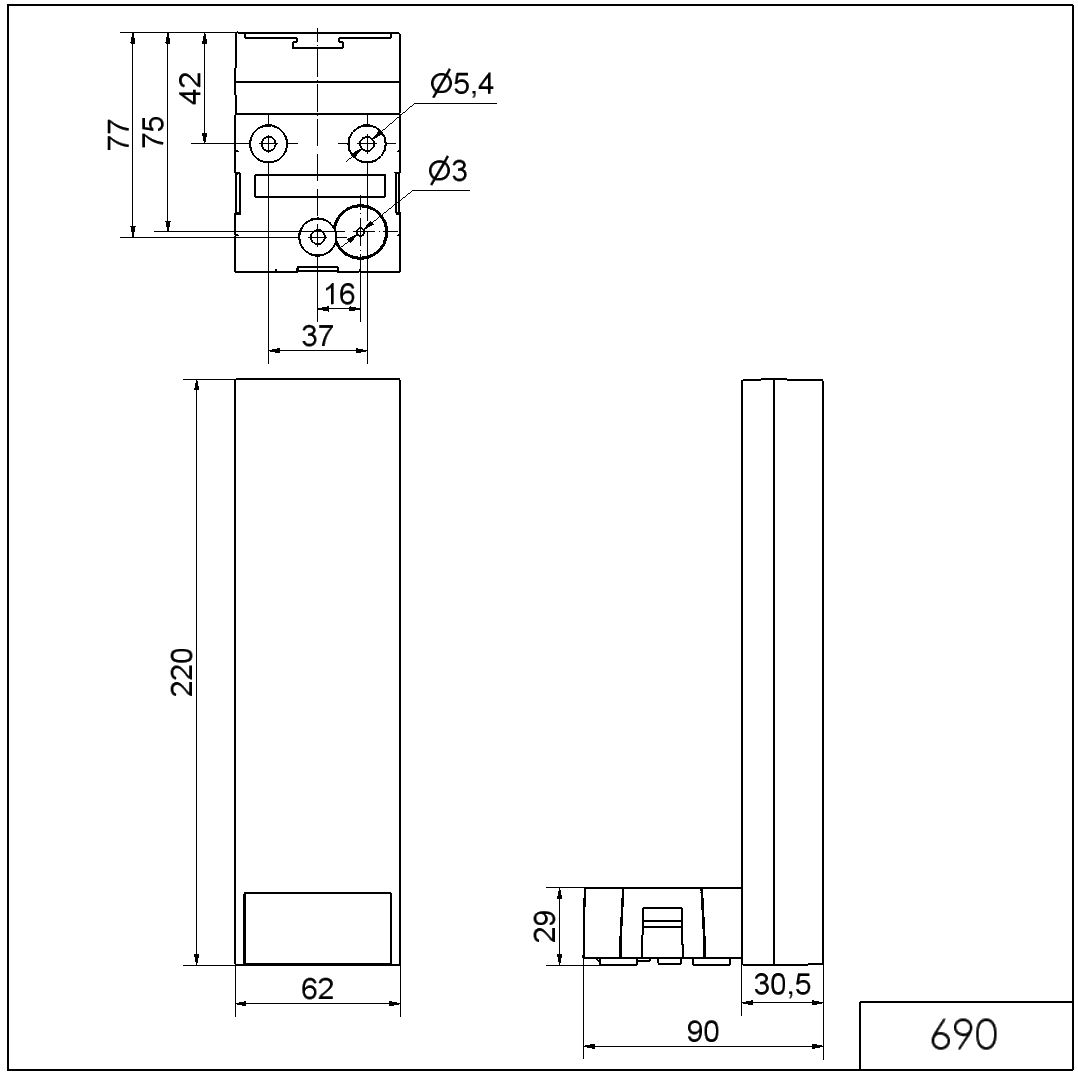

Length
90 mm
Height
220 mm
Width
62 mm
