645.800.75 Werma Buzzers

Product Details

• Conforms with VdS
  No
• Conforms with RoHS CN
  No
• Conforms with GL
  No
• ICAO Certification
  No
• Conforms with AS-I
  No
• Conforms with CMIM
  No
• Conforms with UKCA (Importer)
  Yes
• EAC certificate available
  No
• Conforms with IC
  No
• Conforms with FCC
  Type 12
• UL Type Rating
  cULus
• Conforms with UL
  No
• Conforms with CCC
  No
• Conform with ATEX-directive
  No
• Conforms with RED directive
  Yes
• Acoustic service life
  3500 Hz
• WEEE
  Yes
• Conforms with CE
  5,000 h minimum
• Audio frequency
  Pulse tone
• Volume (max) at 1m distance
  85,0 dB (A)
Pollution degree
3
Acoustic signal image
Continuous tone
Protection class
Protection class 2
Rated inrush current
100 mA
Rated operational current
11 mA
Rated operational voltage
24 VDC
Operating voltage tolerance
+/- 10%
Operating voltage frequency
50Hz
Operating voltage type
AC/DC
Operating voltage
24V
Weight with packaging
87 g
Product weight
73 g
Working temperature maximum
+50°C
Working temperature minimum
-20°C
Protection category
IP65

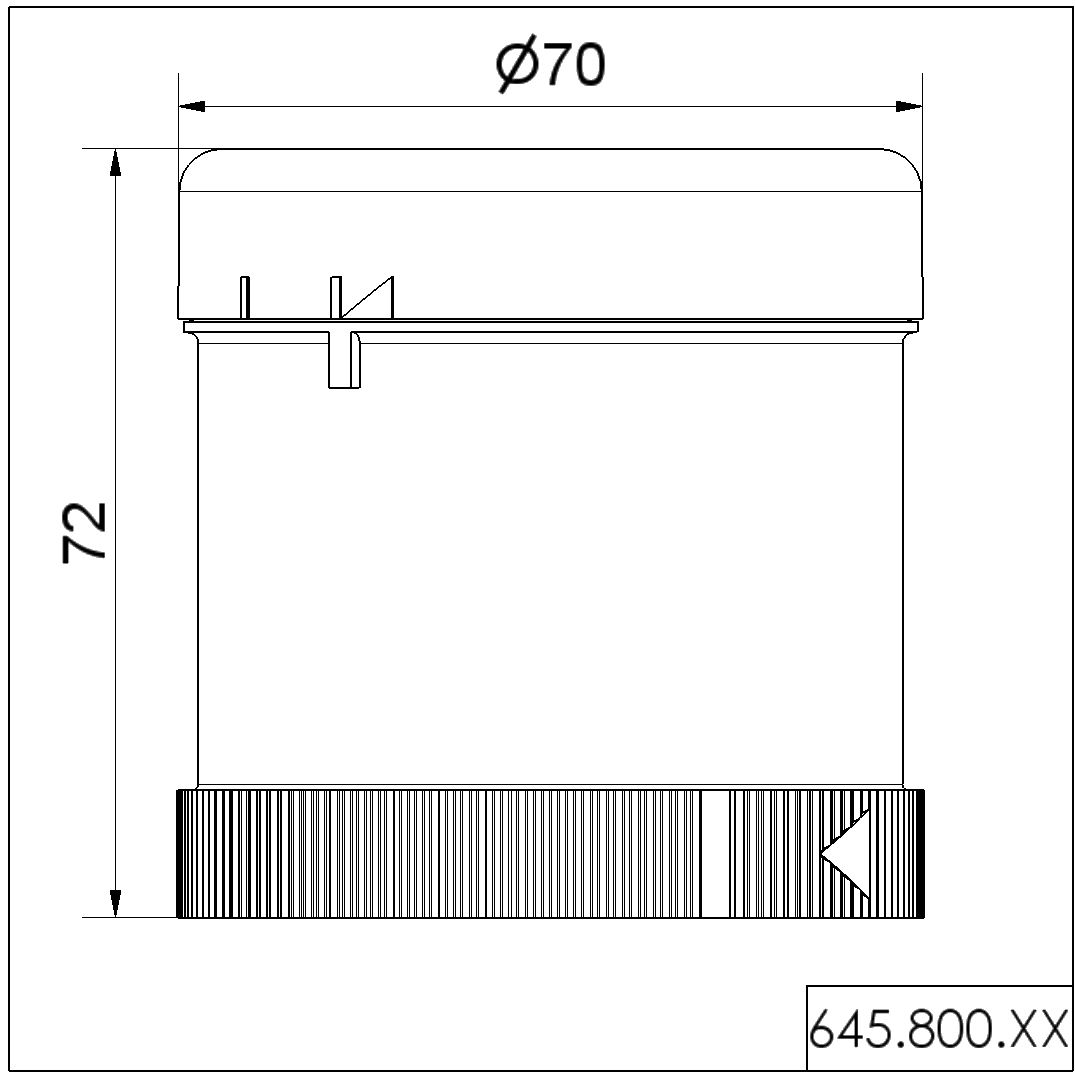

Diameter
70 mm
Housing colour
Black
Height
72 mm
Materials
PC
