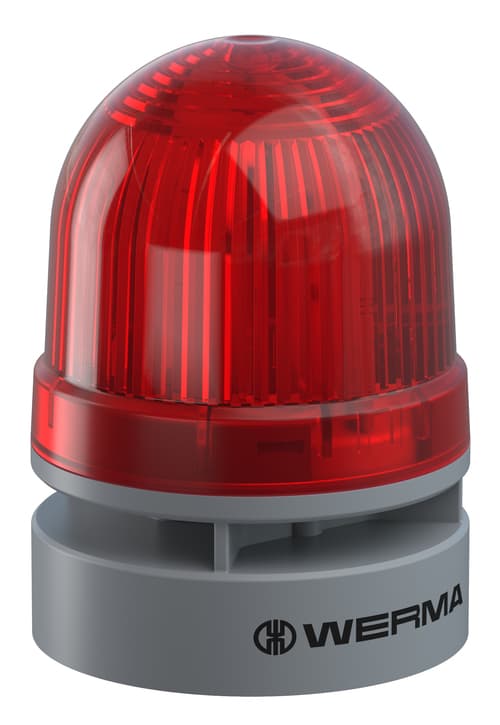

460.120.75 Werma Signal Beacons

Product Details

• Conforms with GL
  Yes
• Conforms with RoHS CN
  No
• ICAO Certification
  No
• Conforms with VdS
  No
• EAC certificate available
  Type 12
• Conforms with FCC
  No
• Conforms with AS-I
  No
• UL Type Rating
  No
• Conforms with IC
  cULus
• Conforms with UL
  Yes
• Conforms with CCC
  Yes
• Conform with ATEX-directive
  5,000 h minimum
• Audio frequency
  Continuous tone
• WEEE
  4000 Hz
• Conforms with CE
  2 tone
• Number of tones
  95,0 dB (A)
• Volume (max) at 1m distance
  50,000 h minimum
• Acoustic service life
  Pulse tone
• Acoustic signal image
  28ON, 165OFF, 28ON, 744OFF
• Pulse- & pause Duration [ms]
  1 Hz
Service life optical
TwinFlash
Flash frequency
EVS
Light colour
LED
Light source
III
Optical signal image
Red
Pollution degree
Protection class 2
Overvoltage category
3
Protection class
3000 mA
Rated operational current
24 VDC
Rated inrush current
96 mA
Rated operational voltage
+/- 10%
Operating voltage frequency
AC/DC
Operating voltage tolerance
50Hz
Operating voltage type
24V
Operating voltage
78 g
Product weight
100 g
Weight with packaging
+60°C
Working temperature maximum
-30°C
Working temperature minimum
Wall mounting
Type of fixing
1,50mm² / 16AWG
Height
85 mm
cross-sectional area minimum
Push-in terminal
Materials
PC
Connection
IP66
cross-sectional area maximum
0,25mm² / 24AWG
Protection category
Grey
Housing colour
Red
Dome colour
PC/ABS
Diameter
62 mm
