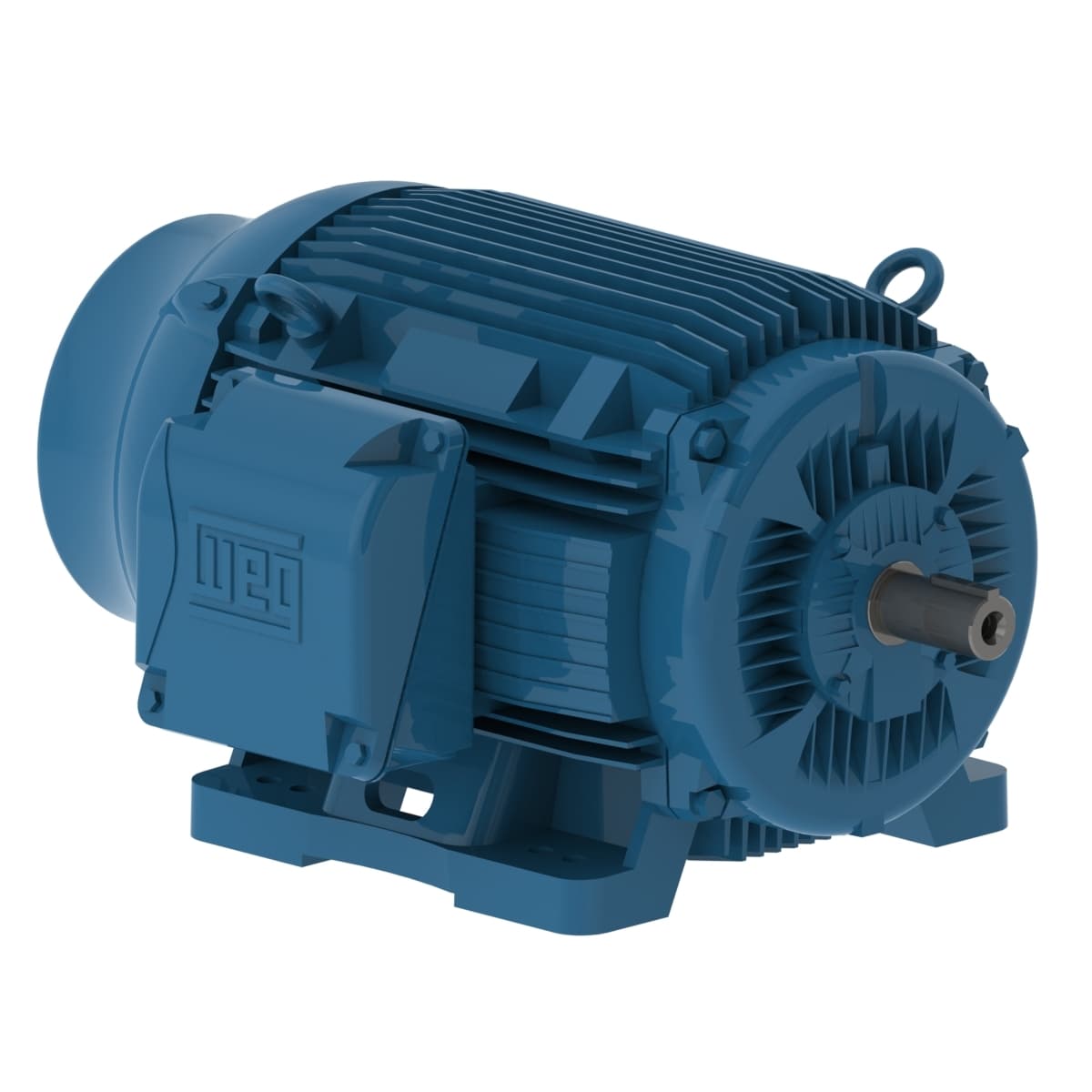

15036ET3E445TSF3-W22 WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  230/460 V
• Output Rating
  150 HP
• Rated Speed
  3570 rpm
• Flange Type
  Without
• Output rating
  150 HP
• Noise level²
  81.0 dB(A)
• Standard
  NEMA MG-1
• Flange
  Without
• Terminal box¹
  Top
• Voltage
  230/460//380 V
• Approx. weight³
  1757 lb
• Starting Method
  Direct On Line
• Synchronous speed
  3600 rpm
• Number of poles
  2
• Rotation¹
  Both (CW and CCW)
• Duty Cycle
  Cont.(S1)
• Enclosure
  IC411 - TEFC
• Mounting
  F-3
• Degree of Protection
  IP55
Insulation Class
F
Temperature rise
80 K
Ambient temperature
-20°C to +40°C
Altitude
1000 m.a.s.l.
Design
B
Breakdown torque
240 %
No load current
82.0/41.0 A
Locked rotor time
39s (cold) 22s (hot)
Moment of inertia (J)
39.1 sq.ft.lb
Rated torque
221 ft.lb
Service factor
1.15
Locked rotor torque
180 %
LRC
6.5x(Code G)
Rated speed
3570 rpm
Frame
444/5TS
Frequency
60 Hz
Slip
0.83 %
L. R. Amperes
2119/1060 A
Output
150 HP (110 kW)
Rated voltage
230/460 V
Rated current
326/163 A
Number of Poles
2
