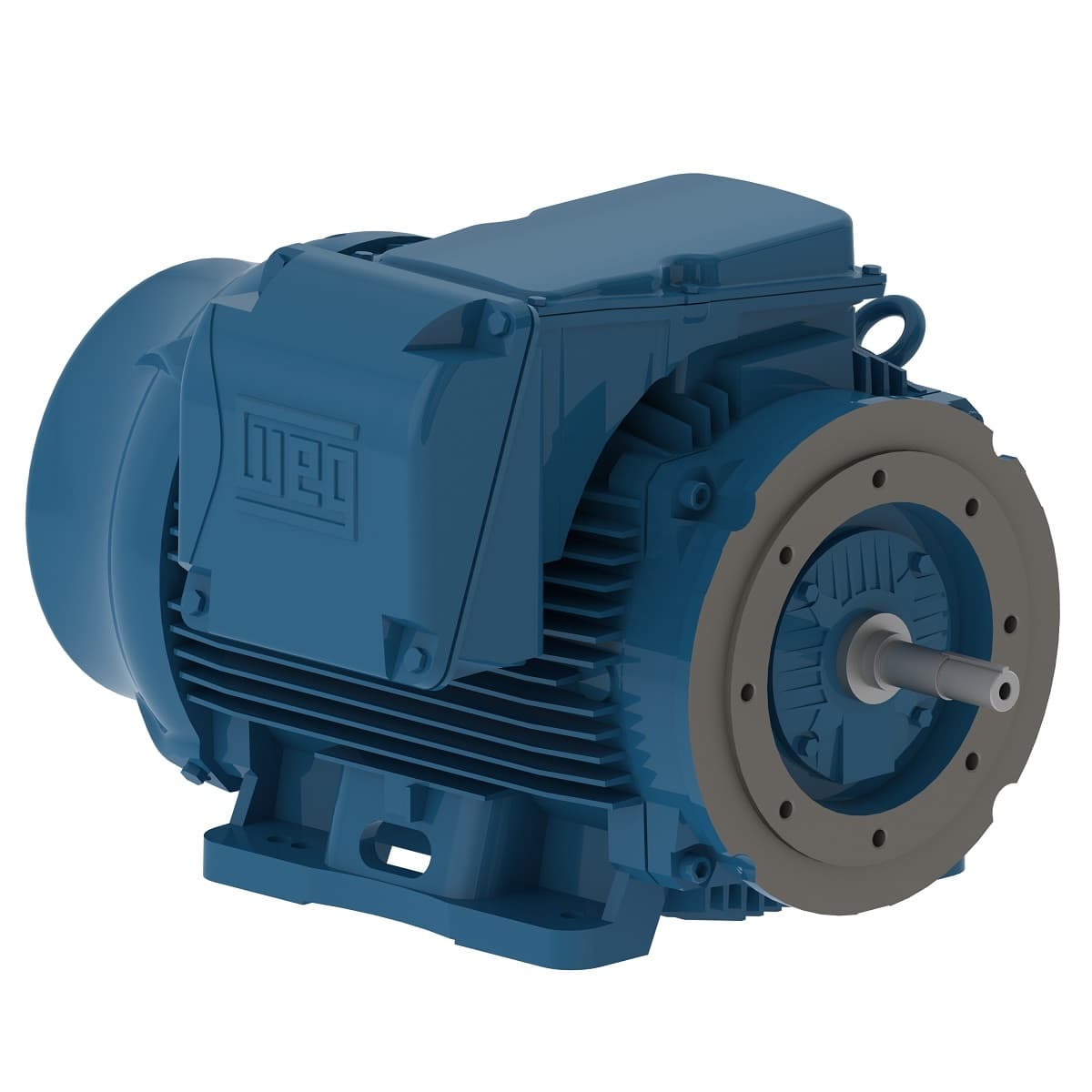

15018ET3HRB445T-W22 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  575 V
• Output Rating
  150 HP
• Rated Speed
  1784 rpm
• Flange Type
  Without
• Flange
  Without
• Voltage
  575 V
• Terminal box¹
  Left position
• Noise level²
  73.0 dB(A)
• Number of poles
  4
• Output rating
  150 HP
• Synchronous speed
  1800 rpm
• Standard
  NEMA MG-1
• Approx. weight³
  1745 lb
• Rotation¹
  Both (CW and CCW)
• Enclosure
  IC411 - TEFC
• Mounting
  F-1
• Starting Method
  Direct On Line
• Degree of Protection
  IP55
• Altitude
  1000 m.a.s.l.
Ambient temperature
-20°C to +40°C
Duty Cycle
Cont.(S1)
Design
B
Temperature rise
80 K
Insulation Class
F
Service factor
1.15
Locked rotor time
48s (cold) 27s (hot)
Moment of inertia (J)
66.7 sq.ft.lb
Locked rotor torque
200 %
LRC
6.6x(Code G)
Breakdown torque
250 %
Rated torque
442 ft.lb
No load current
46.4 A
Rated voltage
575 V
Rated current
136 A
Frequency
60 Hz
L. R. Amperes
898 A
Slip
0.89 %
Frame
444/5T
Rated speed
1784 rpm
Output
150 HP (110 kW)
Number of Poles
4
